| Categories | Relay |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | kampa |
| Model Number: | H3Y |
| Theory: | Time Relay |
| Usage: | PROTECTIVE |
| Size: | Subminiature |
| Protect Feature: | Sealed |
| Contact Load: | Low Power |
| Operating voltage: | DC24V,AC24V,220V |
| Delay time range: | 1s,5s,10s,30s.60s,120s,180s,1m,3m,5m,10m.30m,60,.3h ,5h |
| Repetitive error: | ≤1% |
| Working model: | on-delay |
| Contact tyoe: | HHS13:2Z delay time charge contact |
| Contact capacity: | HHS13:5A AC220V |
| Outline dimension: | 28*21*64mm |
| Mounting style: | matching outlet style |
| Advantage: | Multi-countries style with different plug and socket |
| Packaging Details: | Standard exportation packing |
| Port: | Ningbo |
| Supply Ability: | 100 Piece/Pieces per Month |
| MOQ: | 100 Pieces |
| Price: | $2.30 - $4.60/Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |

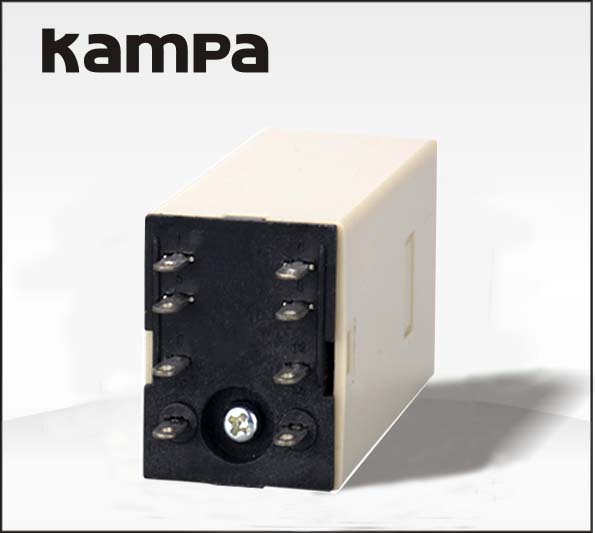

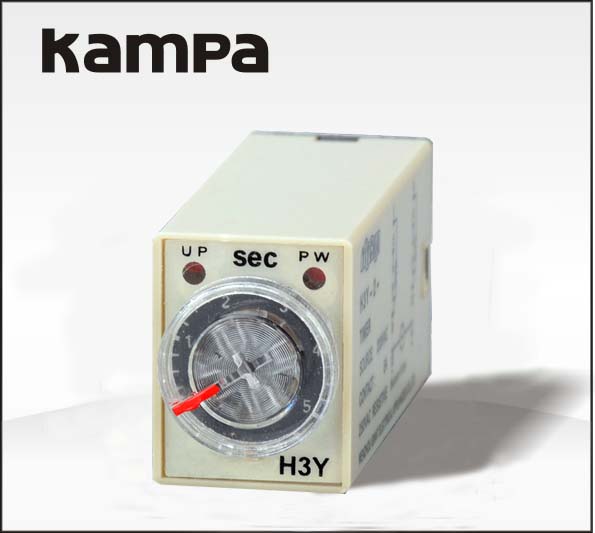

H3Y series electric time relay have small size,light weigt,high delay accuracy,wide time range,good reliability,long life characteristics etc,the item comply with inter national standard are suitable for kinds of high precision and reliability auto control situation to delay control.
| TYPE | Operation/resetting system | Time limit | Time range | Rated voltage |
| H3Y-2 | Time-limit operation /selg | SPDT(2C) | 0.1S~12H | AC380V AC220V AC110V AC24V DC24V DC12V |
| H3Y-4 | SPDT(4CZ) |
| Type: | time delay relay |
| Operating voltage | 28×21×64mm |
| Delay time range | 1s 5s 10s 30s 60s 120s 180s1m 3m 5m 10m 30m 60m 3h 5h |
| Repetitive error | ≤1% |
| Working model | on delay |
| Contact type | HHS13:2Z delay time change contact HHS13-14Z delay time change contact |
| Operation Temperature: | ~5°c~+40°c |
| Contact capacity | HHS13:5A AC220V(resistance) HHS13-1:3A AC220V(resistance) |
| Mounting style | matching outlet style |
