ISO FLQ52 Precision Sampling Resistor 1-10A 10-20mm Height Precision Shunt Resistor

Categories VFD Brake Resistor
Brand Name: CHIFON
Model Number: FLQ52
Certification: CE ISO UL
Place of Origin: CHINA
MOQ: 10pcs
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Delivery Time: 2-3days for sample, 7-10days for bulk order
Packaging Details: Carton
Resistance(A): 1-10A
Height: 10-20mm
Type: FLQ52
Warranty time: 12months
Tolerance Range: ±0.5%(D) ±1%(F)
Application: Applied for current limited current balance or sampling for testing
Color: Silver
Certificate: ISO, ROHS,UL
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

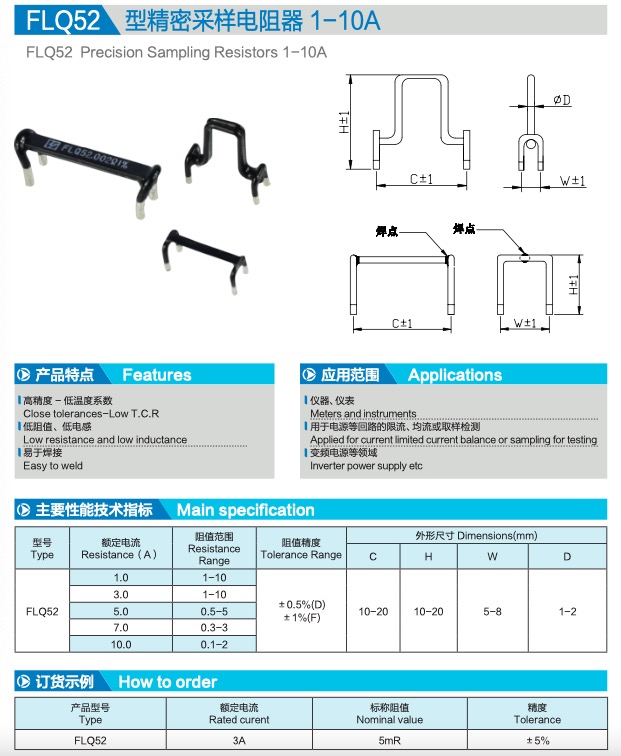

ISO FLQ52 Precision Sampling Resistor 1-10A 10-20mm Height Precision Shunt Resistor

CE ISO ROHS Certificated Factory Direct FLQ52 Precision Sampling Resistors 1-10A


►Product Features

  • Close tolerances-Low T.C.R
  • Low resistance and low inductance
  • Easy to weld

►Product Application

  • Meters and instruments
  • Applied for current limited current balance or sampling for testing
  • Inverter power supply etc

►Product Specifications


Features
  • Close tolerances-Low T.C.R
  • Low resistance and low inductance
  • Easy to weld


Applications

  • Meters and instruments.
  • Aplied for current limited current balance or sampling for testing.
  • Inverter power supply elc.
TypeResistance(A)Resistance
Range
Tolerance RangeDimensions(mm)
CHWD
FLQ521.01-10±0.5%(D)
±1%(F)
10-2010-205-81-2
3.01-10
5.00.5-5
7.00.3-3
10.00.1-2


Type
Rated curentNominal value
Tolerance
FLQ523A5mR±5%
