| Categories | Multimedia Wall Socket |
|---|---|
| Brand Name: | Smart Laffey |
| Model Number: | ST-Tel-D8 |
| Place of Origin: | Guangdong, China |
| MOQ: | 50 Pieces |
| Price: | Negotiable |
| Supply Ability: | 20000 Piece/Pieces per Month |
| Delivery Time: | 10-15 work days |
| Packaging Details: | Carton Box |
| Name: | Media Telephone Socket |
| Type: | RJ11 |
| Size: | 86mm * 86mm |
| Material: | Plastic |
| Style: | Big module |
| Function: | Connect telephone |

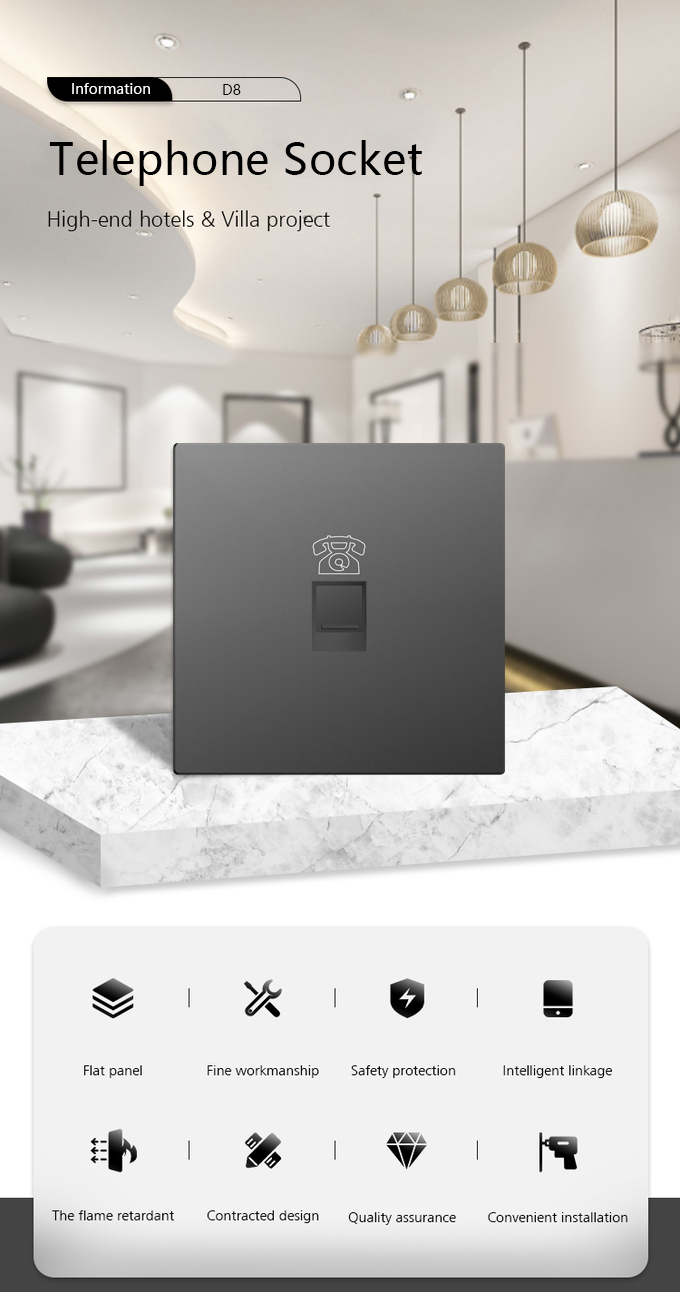

RJ11 Telephone Socket 86mm * 86mm Size Big Module Black / Grey Color
Specifications
| Product Name | Media Telephone Socket |
| Brand | Smart Laffey |
| Size | 86mm*86mm |

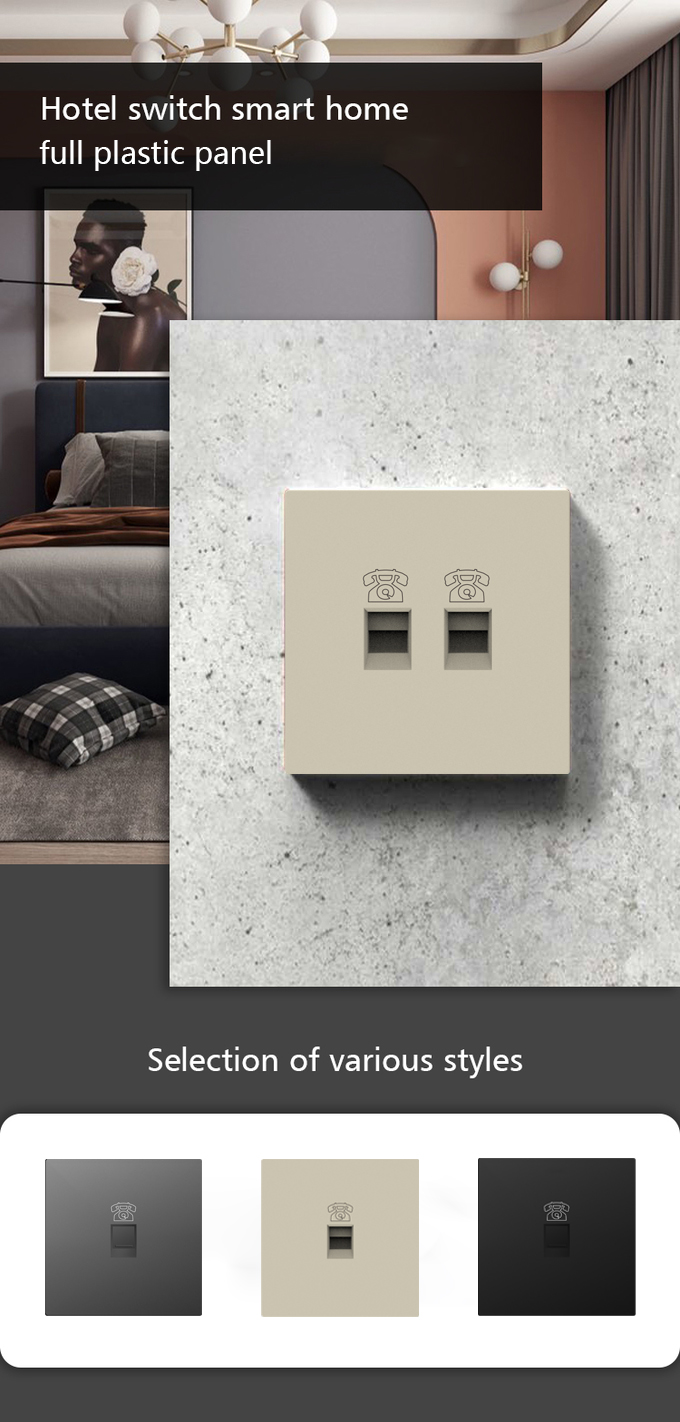

| Color | Champagne / Black / Grey |
| Back Box for Installation | UK Square Box |

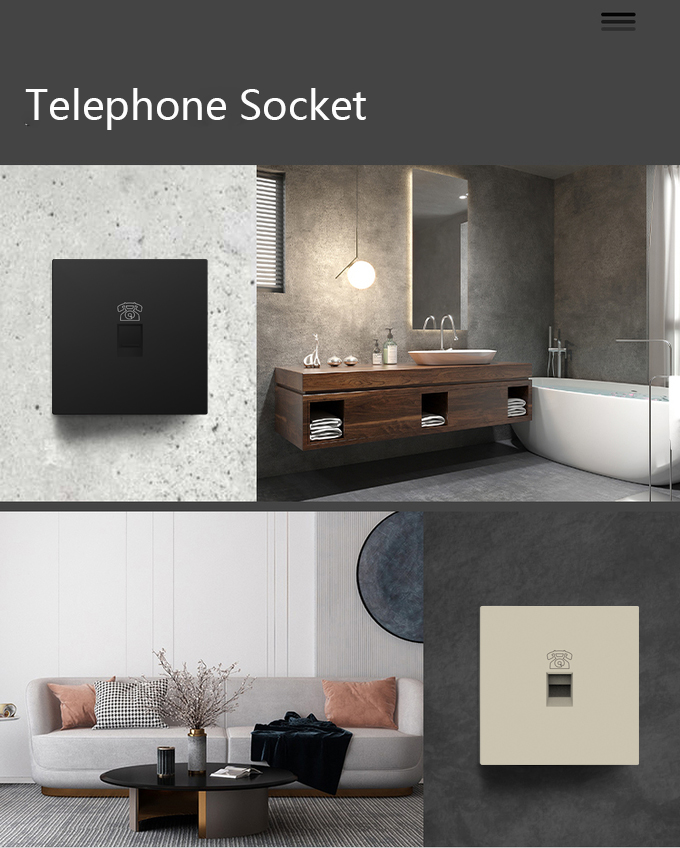

| Application | Hotel / Home / Villa |
Product Features
1. Premium PC front board is fireproot impact resistance,high temperature resistance and non-discoloring.
2. The design of the product is light, elegant, simple and fashionable. The product is close to the wall, which is not prominent and almost seamlessly combined with the wall.
3. Vertical conjoined frame or level conjoined frame.
4. Standard 86 wall box installation, multiple panels can connect seamlessly.
Description

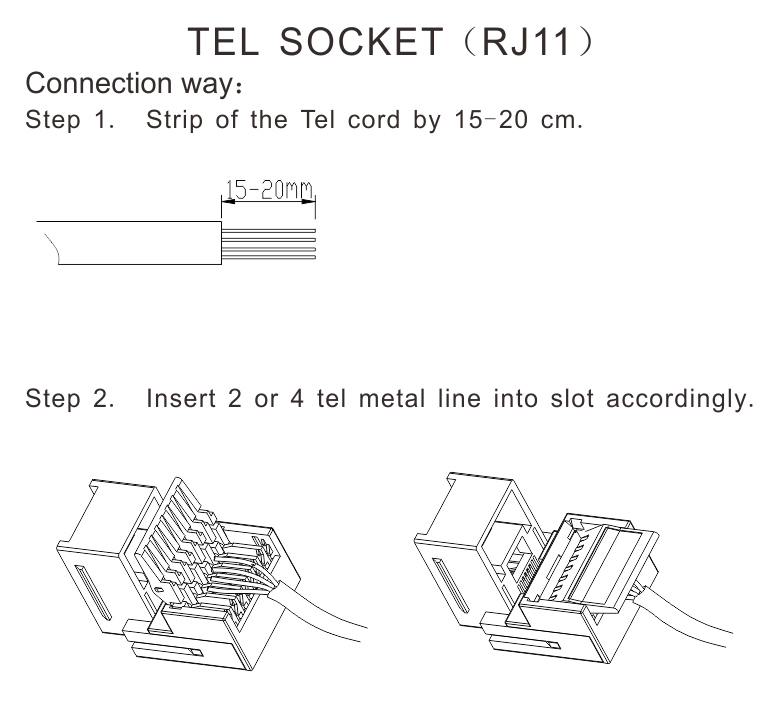

This socket can be used to connect two or four-wire telephones; Peel off the jacket layer of the telephone wire by about 15mm-20mm, and then insert two or four telephone wires into the corresponding card slot. There is no distinction between positive and negative telephone lines.
Installation Method
1. Connection according to connection diagram
2. Dissemble the frame
3. Dissemble the right and left key cover and expose the hole for fix.
4. Put the screw into the hole and screw in with torque 0.2-0.4N.m (2.0-4.0kgf.cm) fixing the switch
5. Assemble the key cover and frame
No need to dissemble key cover under following condition:
1. Fix hole is exposed out of key cover.
2. Using additional hole to fix
Advantages
(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.
(2) Customize : We have strong R&D team, we will try our best to custom product as your request.
(3) OEM service : (a) Printing your Logo (b) Engraving words or icons
(4) Mix order : We accept mix order, different model and small quantity order.
FAQ
1. Q:What’s the shipping method?
A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.
2. Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.
3. Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.
4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?
A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.
5. Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
If you have another question, please feel free to contact us.
|
