Categories | FPV Drone Antenna |
---|---|
Model Number: | CW-P021 |
Place of Origin: | Guangdong, China |
Brand Name: | chaowei |
Packaging Details: | packing:1pcs/box |
MOQ: | 10-100 pcs |
Price: | negotiable |
Certification: | BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008 |
Payment Terms: | T/T and other payments can also be negotiated. |
Supply Ability: | 50000 Pieces per Month |
Delivery Time: | 1-7 work days |
Product Name: | 2.4g UAV remote control signal enhancement horizontal polarization antenna UAV antenna SMA head source manufacturer |
Frequency range: | 2400-2500 MHz |
Gain (dBi): | 8dBi |
VSWR: | ≤1.5 |
polarization: | horizontal |
Input Impedance(Ω): | 50 |
Maximum input power (W): | 50 |

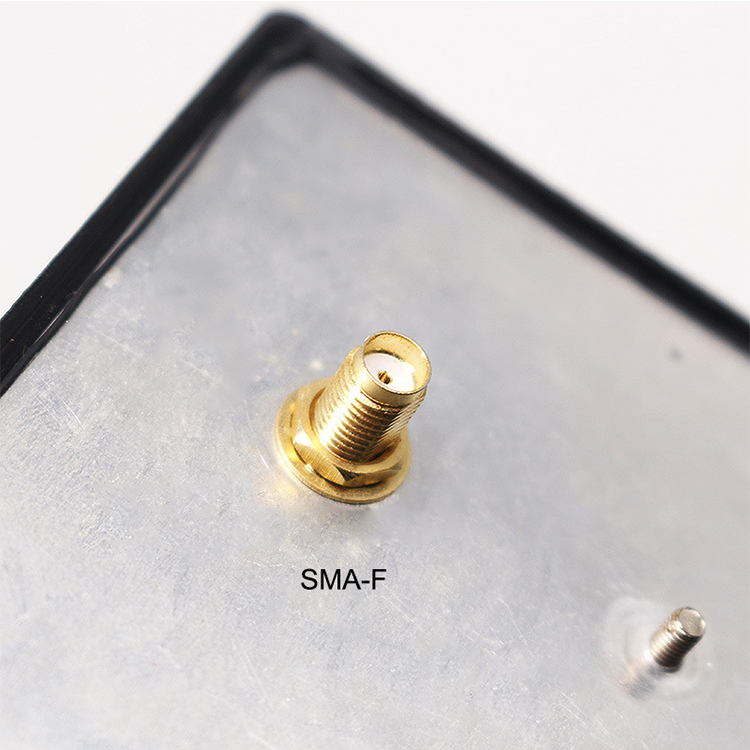

Connector type: | SMA Female or others |
Color: | Black or request |
8dBi 2.4g UAV FPV Drone Antenna Remote Control Horizontal Polarization Antenna
2.4g UAV remote control signal enhancement horizontal polarization antenna UAV antenna SMA head source manufacturer
Electrical Specification | |
Product Name | 2.4g UAV remote control signal enhancement horizontal polarization antenna UAV antenna SMA head source manufacturer |
Frequency range | 2400-2500 MHz |
Gain (dBi) | 8 |

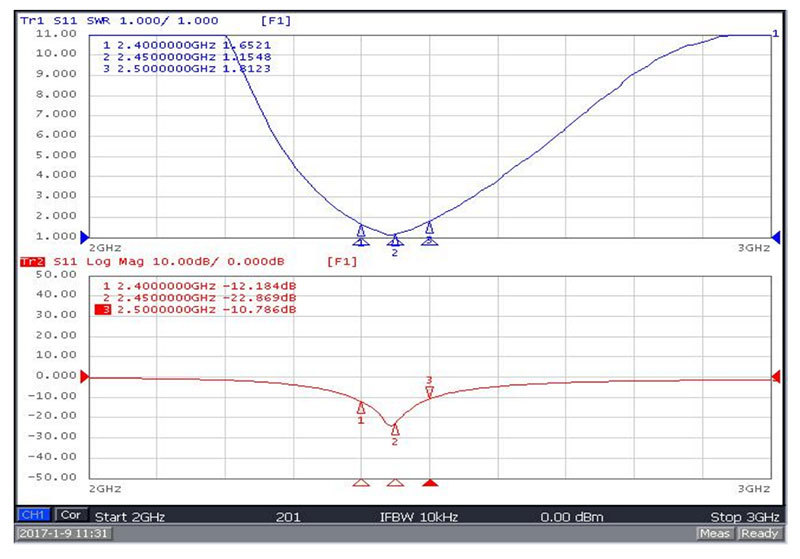

VSWR | ≤2.0 |
Polarization | Horizontal |
Input Impedance(Ω) | 50 |
Connector type | SMA male or others |
Mechanica Specifications | |

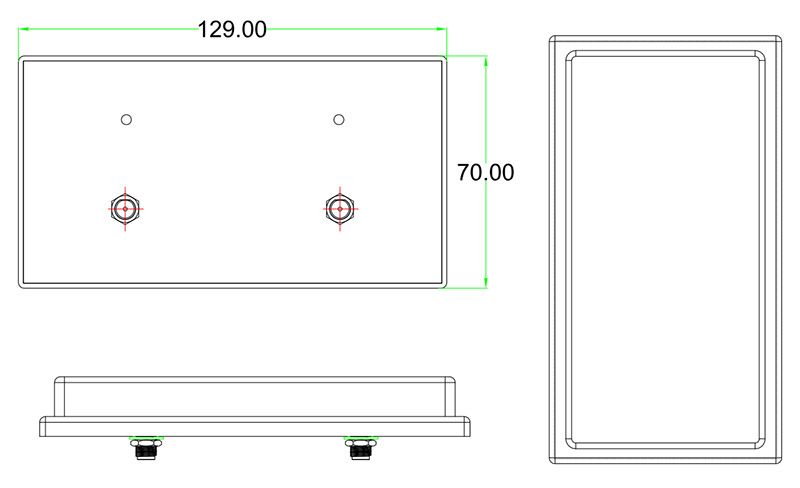

Dimensions(mm) | 129*70 mm |
Noise Figure(dB) | ≤2.0 |
Radone color | Black or request |
