DELLOK 1/2'' 3/4" Bsp Female Threaded Malleable Iron Pipe Fitting 4 Holes Normal Floor Flange

Categories HFW Steel Pipe
Brand Name: DELLOK
Model Number: manufacturer pipe fitting
Certification: ISO 9001:2008
Place of Origin: China
MOQ: 100 pieces
Price: $1.00
Payment Terms: T/T 30% in advanced,70% before EXW
Supply Ability: 100000 Piece/Pieces per Week malleable iron pipe fittings
Delivery Time: Determined by actual quantity
Packaging Details: 1.Cartons without pallets 2.Cartons with pallets 3.Double woven bags 4.As buyer's requirements.
Technics:: Casting
Connection:: threaded
Shape:: Equal
Head Code:: Round
Size:: 1/2"-4"
Surface:: Black, Natural black, coating,paint spraying
Medium:: carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

DELLOK 1/2'' 3/4" Bsp Female Threaded Malleable Iron Pipe Fitting 4 Holes Normal Floor Flange

DELLOK 1/2'' 3/4" Bsp Female Threaded Malleable Iron Pipe Fitting Four Holes Normal Black Floor Flange


Product Type of 1/2'' 3/4" bsp female threaded malleable iron pipe fitting four holes normal black floor flange

1/2'' 3/4" bsp female threaded malleable iron pipe fitting four holes normal black floor flange

More Details 1/2'' 3/4" bsp female threaded malleable iron pipe fitting four holes normal black floor flange

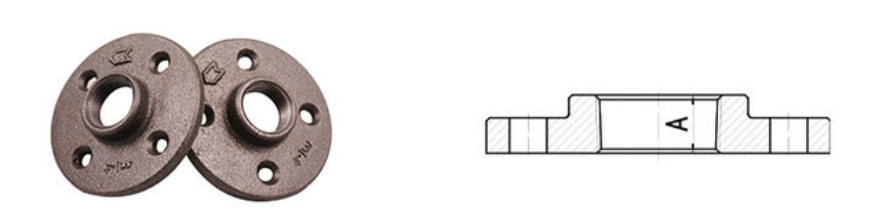

SIZEINCH1/23/4111/411/22
MM152025324050
DIM(MM)A151619212126
SIZEINCH21/23456
MM6580100125150
DIM(MM)A3033394040

MaterialMalleable Iron
StandardThread:BSPT(ISO 7/1),NPT(ASME B16.3)
Dimension:ISO 49,DIN 2950,EN10242
Chemical Propety(C %2.4-2.9),(Si %1.4-1.9),(Mn %0.4-0.65),(P% <0.1),(S% <0.2%)
Physical PropertyTensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB
Testing Pressure2.5MPa
Working Pressure1.6MPa
TypeBeaded or Banded

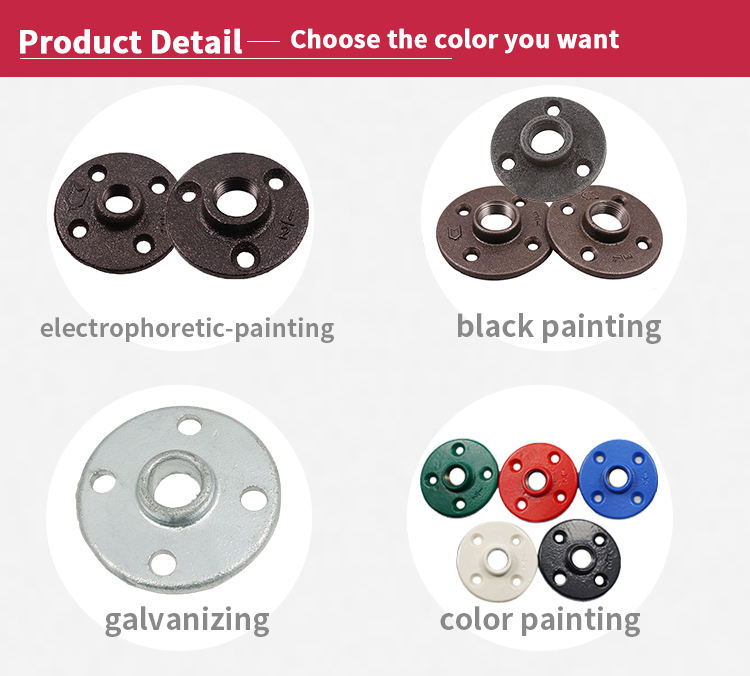

SurfaceGalvanized/Black
ColorExpoxy power:Red,White,Blue,Yellow,Green
ModelElbow,Tees,Crosses,Bends,Unions,Bushing,Lateral Braches,Sockets,Nipples,Hexagon/Round,Caps,Plugs,Locknuts,Flanges,Side outlet Tees,Side Outlet Elbows and etc
ConnectionMale,Female
ShapeEqual,Reducing
CertificateAS4020,BSI,ANAB,ISO9001
ApplicationSuitable for fire piping system,air,gas,oil and so on
Buyer's drawing or designs are available
PackageCartons without pallet
Cartons with pallet
Double woven bags
Or as buyer's requirements
Delivery DetailsAccording to the quantities and specifications of each order
Normal delivery times is from 30 to 45 days after receiving the deposit

1/2'' 3/4" bsp female threaded malleable iron pipe fitting four holes normal black floor flange
