Name: Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy
Brand: TANKII
Price: 1 USD

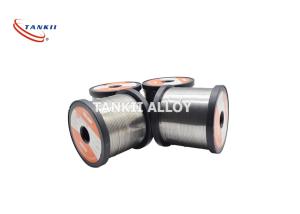

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy

Categories	Electric Resistance Wire
Brand Name:	TANKII
Model Number:	FeCrAl
Certification:	ISO9001
Place of Origin:	China Mainland
MOQ:	5~40kg
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 tons/year
Delivery Time:	7~20 days after getting the payment
Packaging Details:	Carton case
Item:	0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm
Stock size:	0.23*1.1mm
Package:	On Bobbin, carton box
Leading time:	3 days
MOQ:	Based on Stock qty
Application:	Resistor, heating elements
Certificate:	RoHS , Mill's test certificate
Supplier:	Tankii Alloy

Contact Now

Add to Cart

Company Info.

Shanghai Tankii Alloy Material Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm

Tankii supplies three basic types of flat conductors: ribbon (flat wire), strip, and foil or sheet.

All three products are produced in a series of rolling processes, and are supplied with round, or sharp-edge constructions.

Main Types of resistance flat wire:

1. Nichrome alloy wire

2. FeCrAl (iron-chromium-aluminium) alloy wire

3. Constantan wire

4. Copper Nickel alloy wire

5. Manganin wire

Parameters of resistance wires:

0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm

FeCrAl (iron-chromium-aluminium) alloy wire:

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Properties Grade		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical Composition (%)	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
							Nb0.5	Mo1.8-2.2
Max Continuous Service Temperature(oC)		950	1250	1250	1250	1100	1350	1400
Resisivity 20℃ (Ωmm2/m)		1.25 ±0.08	1.42 ±0.06	1.42 ±0.07	1.35 ±0.07	1.23 ±0.07	1.45 ±0.07	1.53 ±0.07
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity		52.7	46.1	63.2	60.2	46.9	46.1	45.2
(KJ/m@h@℃)		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of Thermal Expansion(α×10-6/℃)		15.4	16	14.7	15	13.5	16	16
Approximate Melting Point( ℃)		1450	1500	1500	1500	1500	1510	1520
Tensile Strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation(%)		>16	>12	>12	>12	>12	>12	>10
Section Variation		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Shrink Rate (%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeatedly Bend Frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness (H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time		no	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic Structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Property		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm

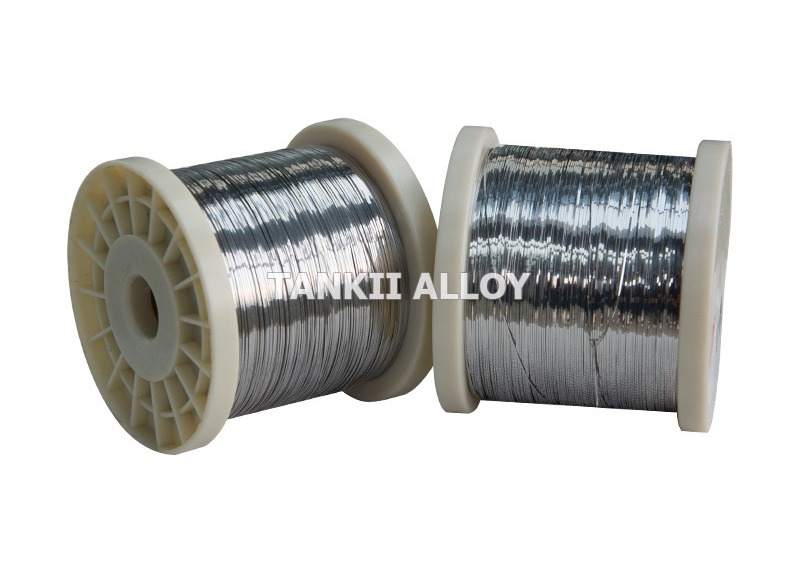

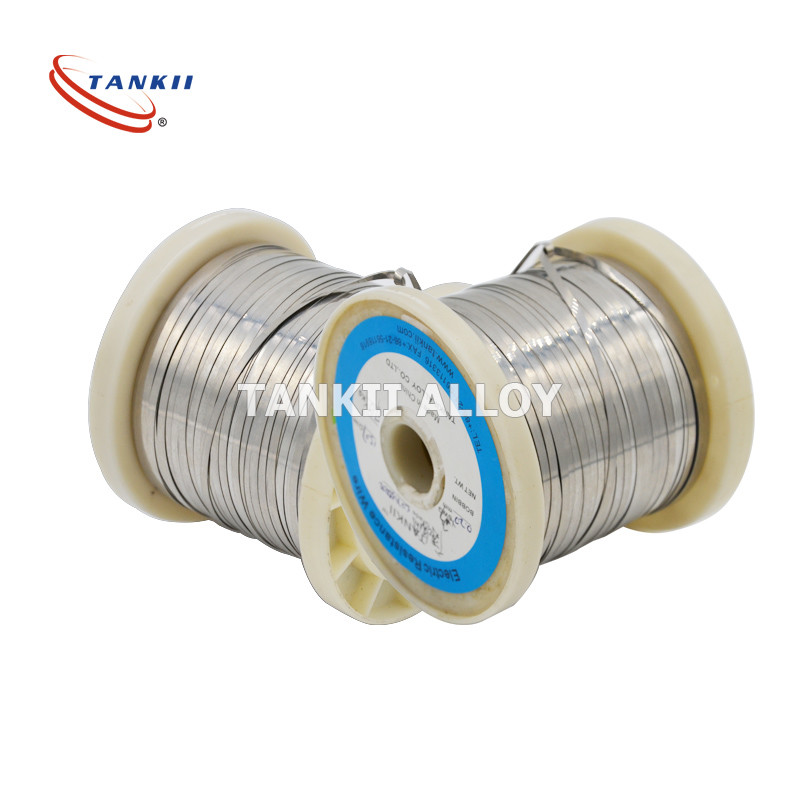

Resistance flat wire pictures:

Copper nickel alloy flat wires:

Package of resistance wire :

Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
