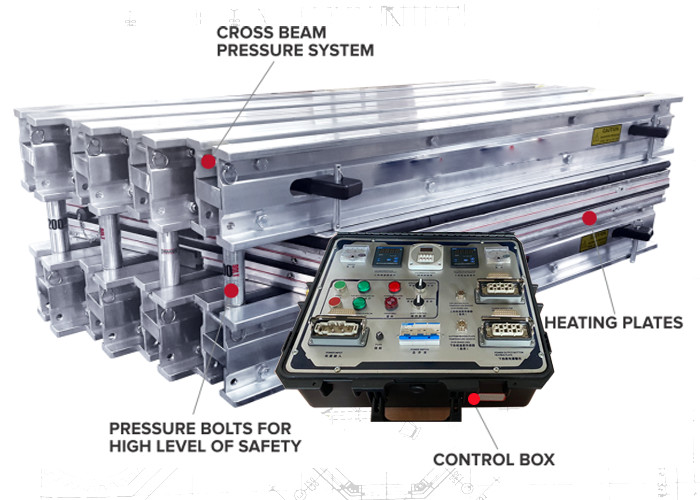

1800Mm Rubber Conveyor Belt Vulcanizing Press Splicing Component

conveyor belt splice component for rubber belt 1800 mm width

Steps to select your vulcanizing

The proper model selection for a Sectional vulcanizer depends on determining dimensions C and D (see diagram).

C - The platen length (C) is calculated by adding to the belt manufacturer’s recommended splice length.

• 8 inches (200mm) for fabric belt
• 12 inches (3000mm) for steel cord belt

D - The platen width (D) is determined by adding to the belt width.

• 6 inches (150mm) for fabric belt
• 8 inches (200mm) for steel cord belt

F - Width of the platen along the belt on bias. To figure this multiply by:

• 1.07 for 22 degree bias angle
• 1.05 for 17 degree bias angle

Dimensions C and D represent the outside platen dimensions. Custom sizes, rectangular configurations and multiple platen arrangements are also available upon request.

QINGDAO RUNNING MACHINE CO.,LTD has established the leading position in the industry.The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.

In order to improve vulcanization quality,we developed and produced our core products:Rubber Pressure Bag and Integrated Rubber Heating Film. There are R&D center as well as quality inspection center in the company carying out strict product liability and quality control svstem .

We can provide our clients the best technical solution based on demands.With excellent quality and service, we built a firm market not only in more than 30 provinces nationwide but also in Southeast Asia, Middle East, Africa,Australia and South America etc.
