PN Optical Fiber Connector 2.2*2mm 140N for FTTB FTTX Network

Factory Price MR-J3BCN1/MR-J3BUS Optical Fiber Connector 1123445-1 Optical Fiber Signal Plug PF-2D103

product information

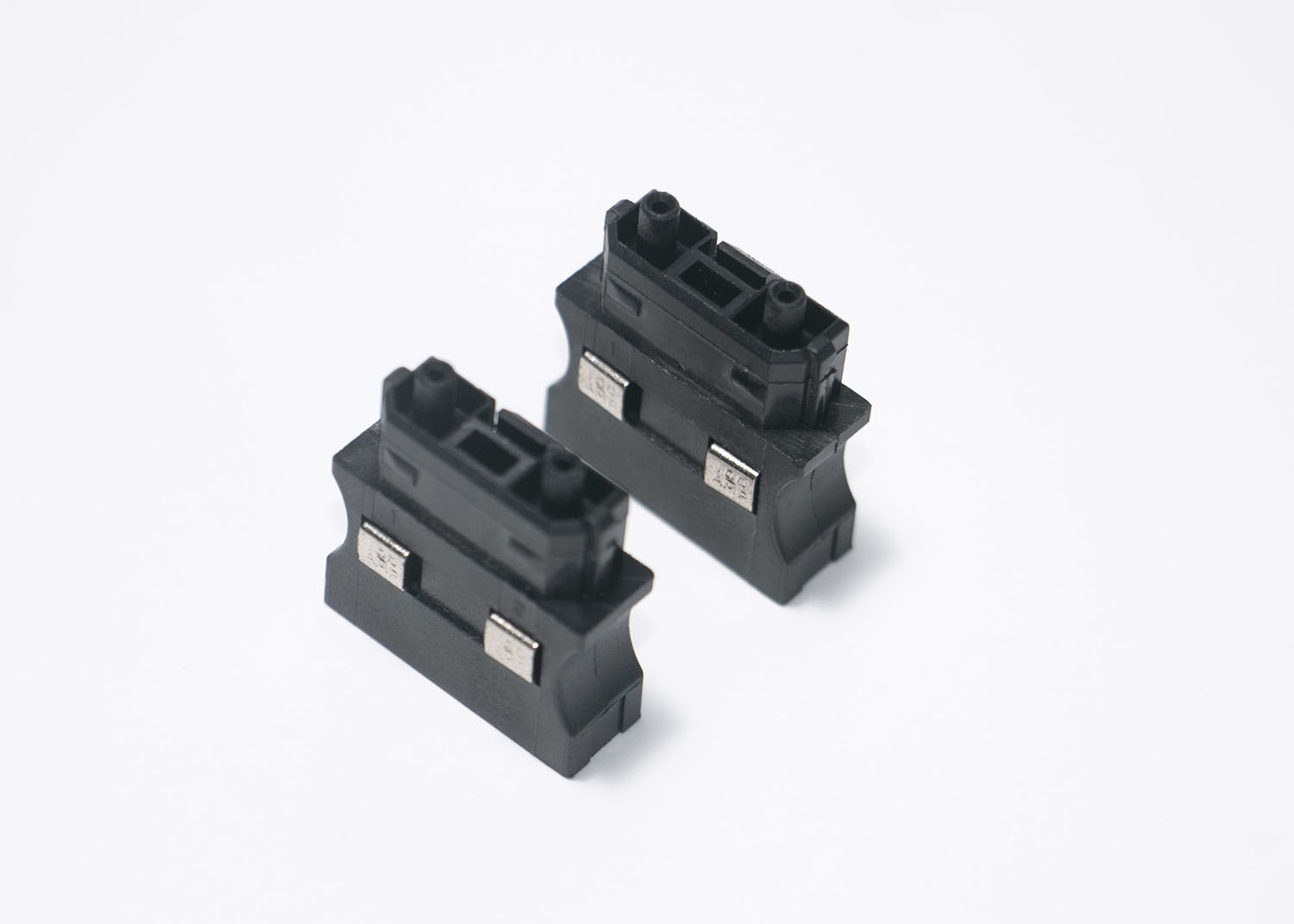

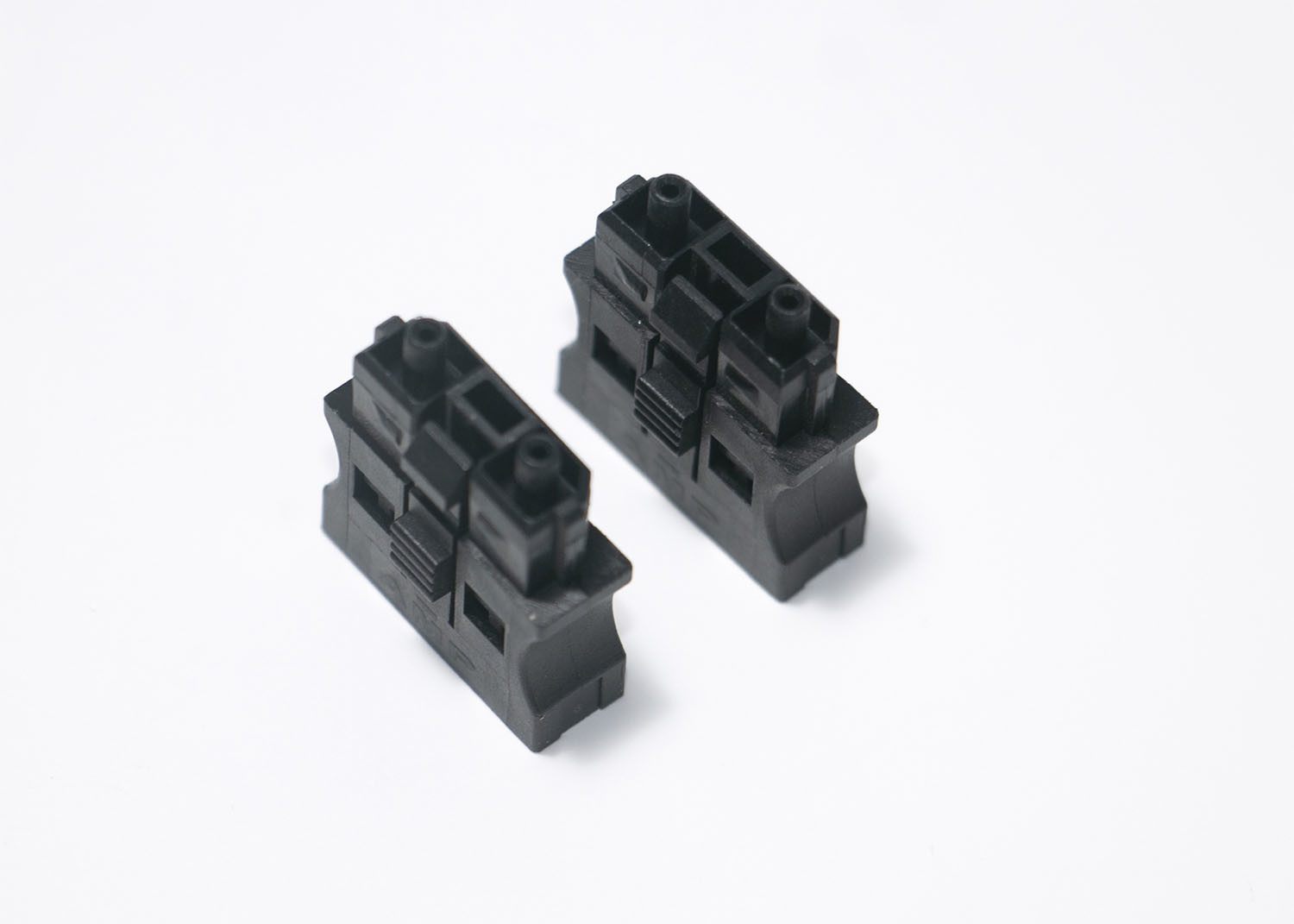

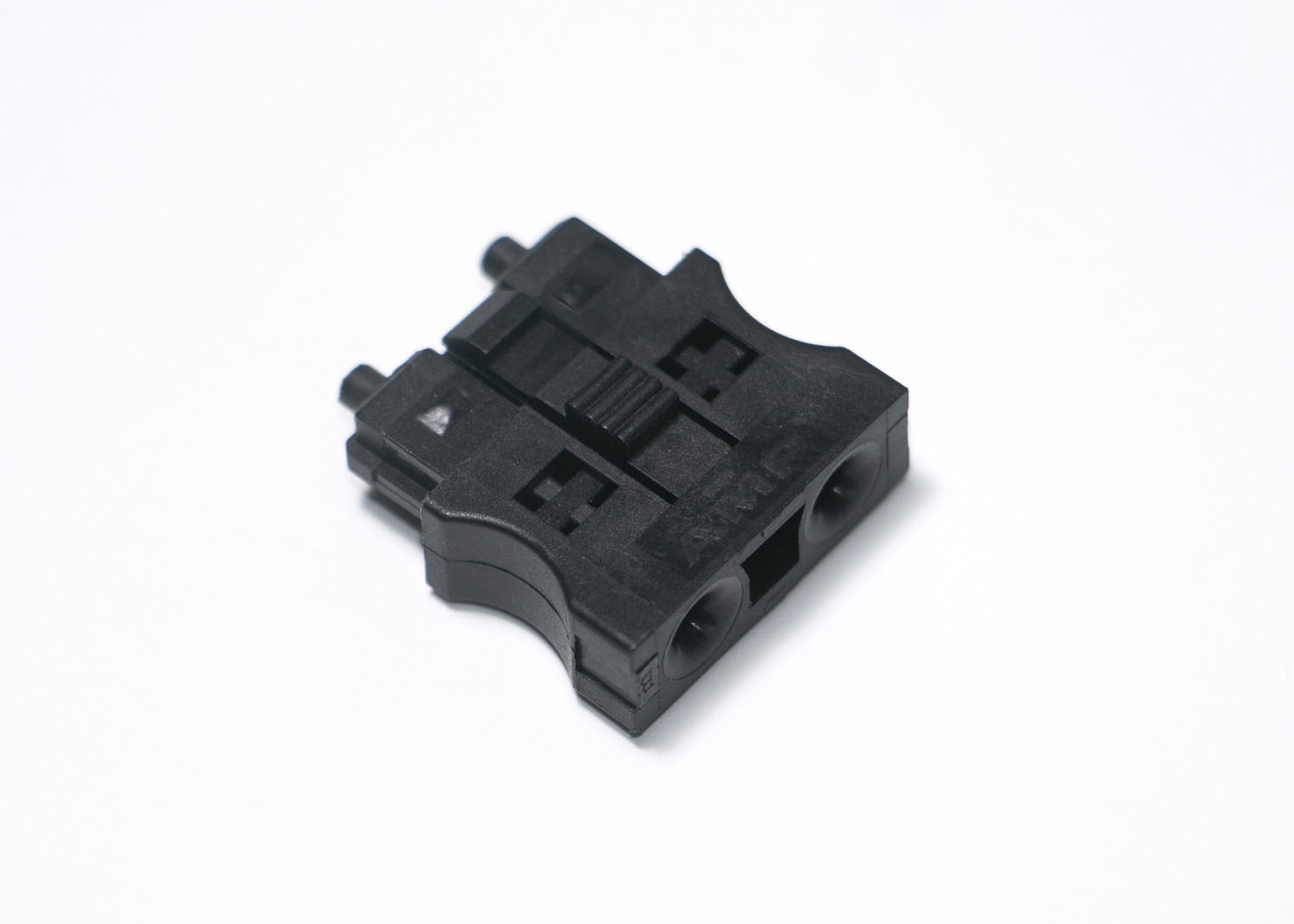

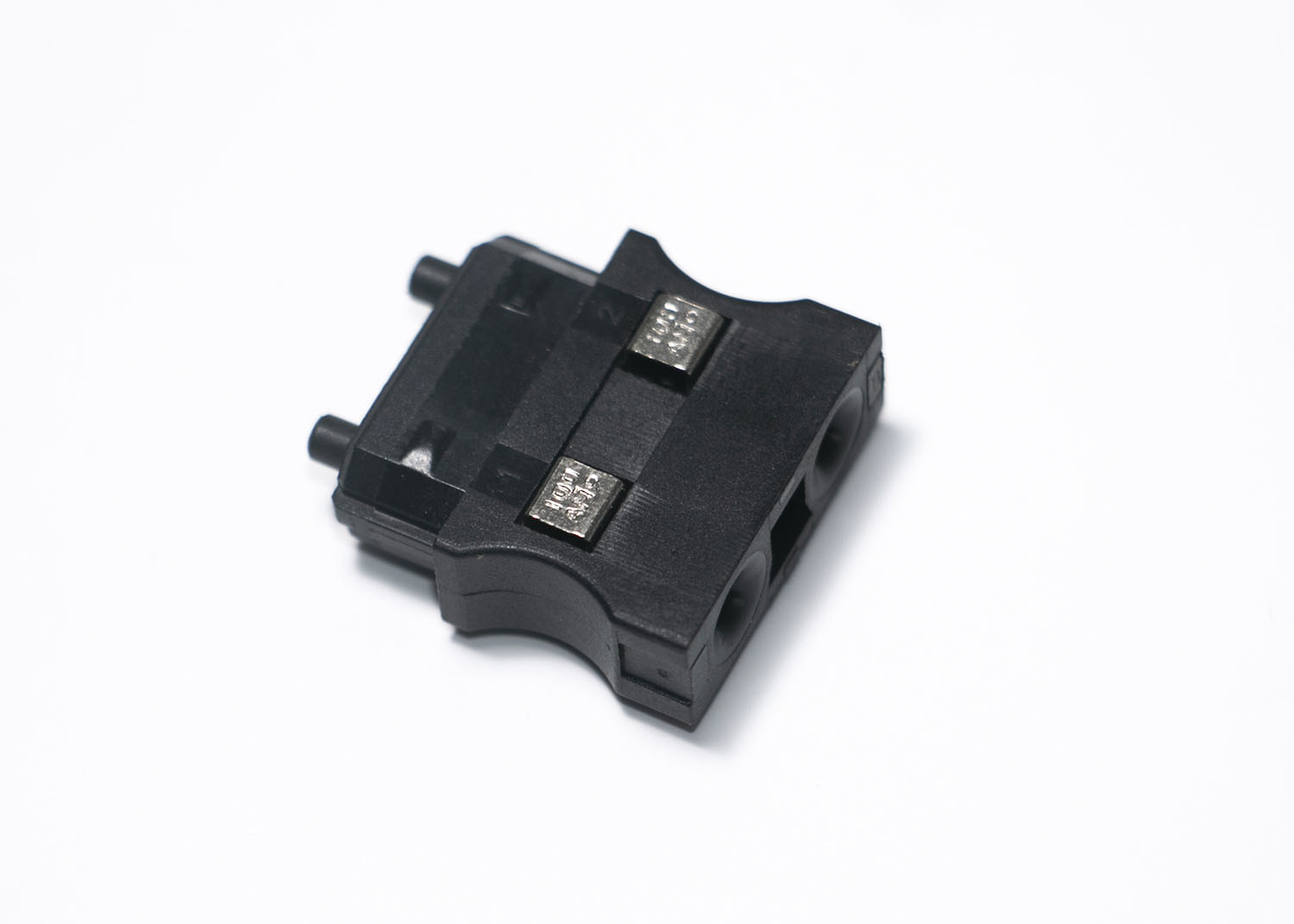

Name: Optical fiber signal plug
Brand: Monoluxtecs
Optical fiber outer diameter: 2.2*2mm
Core diameter: 1.0mm
Interface: Anpu PN
Operating temperature range: -55～70℃
Fiber core material: imported fiber core
Minimum bending radius: minimum bending radius
Tensile strength: 140N
Attenuation: 190dB/km (650nm/NA=0.1)

Features
Used in industrial automation and electrical automation control bus systems, communication exchange systems, digital multimedia systems, medical sensor systems, power systems, etc.

Bayonet design, compact structure, anti-pull, waterproof, high temperature resistant design, low insertion loss, high-precision coupling, can ensure the most data transmission.

Mitsubishi servo plastic optical fiber cable (MR-J3J4-B, G380, G396, CNC numerical control), adopts AMP connector independently developed and produced by Suvo, imported Japanese optical fiber with original packaging, which can ensure the most data transmission; precision grinding and polishing, leaving factory Full inspection, better performance, superior quality, and ultra-industry standard assembly processes have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.

SSCNET III cable (MITSUBISHI)
MITSUBISHI SSCNET III cable is suitable for MR-J3J4-B servo amplifier, MR-J4W2-BMR-J4W3-B multi-axis integrated servo amplifier.
Using optical cable: 2.2mm (70N), 2.2*4.4mm (140N), 2.2*4.46.0mm (420N), 2.2*4.47.6mm (980N).
Servo CN1A is used to connect servo controller or front axis servo amplifier
Servo CN1B is used to connect the rear axle or end cover of the servo amplifier

SC-J4BUS-A, SC-J3BUS-C high-speed SSCNET III/H fiber, using H-PCF200/230μm fiber core, using TOCP200Q, CF2071 fiber connector.

              We stand as a foremost optical fiber supplier in China, specializing in the production of

              plastic optical fiber, optical cables, audio cables, optic SPDIF connectors, Decor

              fiber, automotive cables, optic sensors, and more. Our advanced assembly line, coupled

              with a rigorous and scientific quality management system, yields an annual output of

              over 10 million pieces, driven by a dedicated workforce exceeding 100 employees.

              Our commitment is to provide comprehensive and top-tier offerings, embracing both

              superior quality and customization to suit diverse enterprise needs. Our products find

              application across a wide spectrum of industries, including multi-core plastic optical

              fiber, PMMA optical fiber, POF, color strip fiber, light guide strips, communication

              transmission, industrial network lathe machinery, lighting decoration, aerospace,

              automotive energy, medical sensing, and military industrial equipment.

              If our offerings intrigue you, delve deeper into our product details and reach out to us

              for further information. Your interest drives us forward!
