| Categories | High Precision Planetary Gearbox |
|---|---|
| Brand Name: | ASSUN |
| Model Number: | AM-26P |
| Certification: | CE, ISO |
| Place of Origin: | CHINA |
| MOQ: | 1-10pcs |
| Price: | Negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000/Month |
| Delivery Time: | 5-15 work days |
| Packaging Details: | Cartonbox |
| Product Name: | Precision Regular Planetary Gearbox. |
| Diameter: | 26mm |
| Length: | 28.2mm 34.5mm 40.8mm 47.1mm |
| Company Info. |
| Assun Motor Pte Ltd. |
| View Contact Details |
| Product List |

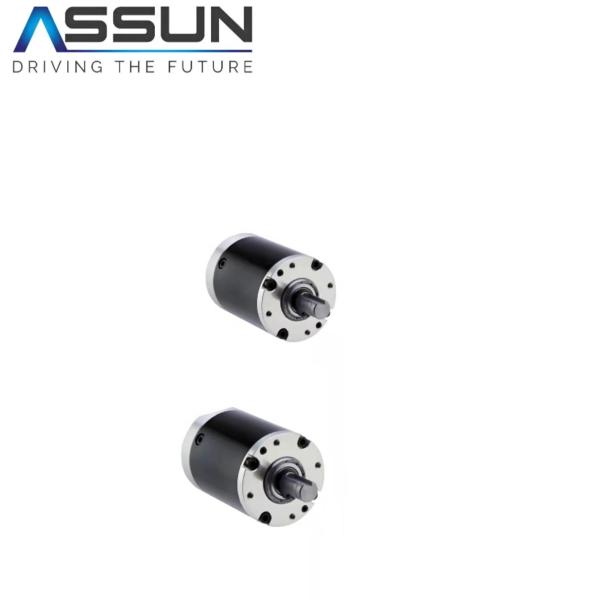

High quality Regular Planetary Gearbox D26mm L 28.2/34.5/ 40.8/47.1mm
Product introduction:
1.Regular Planetary Gearbox diameter 26mm.Length: 28.2mm 34.5mm 40.8mm 47.1mm
2.Gear type: Straight teeth Average backlash on load: ≤2°
3.Output shaft : stainless steel hardened Radial Play : ≤ 0.1
4. Main gear: Alloy Steel Permissible axial load : ≤80N
5. Ring gear : Steel Permissible force press fits : ≤150N (5mm from mounting face)
6.Adapter plate: Copper Recommeneded inut speed ≤8000RPM.
7.Bearing AT output :Ball bearing Operating temperature range: -20~50℃.
8Axial play: 0~0.3 Operating hunidity range : 10-90%RH. Directions : CW/CCW.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 |
| Reduction ratio X :1 | 3.4 3.8 4.4 5.3 6.7 | 12 18 28 13 19 29 15 22 35 17 23 44 26 | 40 74 129 45 85 152 50 95 184 56 106 233 65 121 296 | 296 534 1016 327 637 1136 375 760 1304 405 860 1556 447 965 1975 |
| Gearbox length L (mm) | 28.2 | 34.5 | 40.8 | 47.1 |
| Max.continuous torque(N.m) | 1.3 | 1.7 | 2.1 | 2.6 |
| Max.intermitten torque(N.m) | 1.9 | 2.6 | 3.2 | 3.8 |
| Gearbox efficiency | 90% | 81% | 72% | 65% |
| Moment of inertia range(g.cm²) | 1 | 0.9 | 0.6 | 0.6 |
| Gearboxweightapprox (g) | 65 | 85 | 105 | 120 |
| Gearbox model | AM-26PA-X-01 | AM-26PB-X-01 | AM-26PC-X-01 | AM-26PD-X-01 |
Recommended Motor :
Coreless Motor(w/E): AM-CL2532MAN AM-CL2545MAN
Brushless Motor(w/E): AM-BL2453AN
Recommended Encoder :
Suitable for Coreles Motor: Encoder S : AM-EN1611S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S*** Encoder T : AM-EN2412T***
Assun Planetarty gearbox can install the corresponding with Encoder and DC Graphite Brush/ Brushless Motor
Assun precision plantary gearbox application of positive element in intelligent equipment
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
|
