80N Round 2 Pin SPST On Off Toggle Rocker Switch

Categories Rocker Switch
Brand Name: KKG
Model Number: HM-RS-KCD1-101
Certification: Rosh
Place of Origin: China
MOQ: Accepted
Price: Negotiate
Payment Terms: T/T, L/C, Western Union
Delivery Time: 3-7days
Packaging Details: Export package
Whether the smart: NO
Max. Current: 10A
Max. Voltage: 250V
Mechanical Life: 10,000 cycles
Materilas: brass PA66
Function: ON-0FF
Pins: 2 Pins
Type: Rocker Switch T105 250v
Rating: 6A 250VAC/10A 125VAC
Insulation Resistance: 100M Min
Dielectric strength: 1500VAC, 1 Minute
Terminal strength: 80N
operating temperature: -25°C~+85°C
Color: Black
contact resistance: < 35MΩ
Company Info.
KKG Electric Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

80N Round 2 Pin SPST On Off Toggle Rocker Switch

Rocker Switch, Round 2 Pin SPST On/Off Toggle Rocker Switch, On off Switch


Rocker switch is an on/off switch that rocks (rather than trips) when pressed, which means

one side of the switch is raised while the other side is depressed much like a rocking horse

rocks back and forth. Rocker switch may have a circle (for "on") on one end and a horizontal

dash or line (for "off") on the other to let the user known if the device is on or off.


KCD1-101 Round 2 Pin SPST On/Off Toggle Rocker Switch


typeKCD1-101 round 2 pin spst spst on off toggle rocker switch

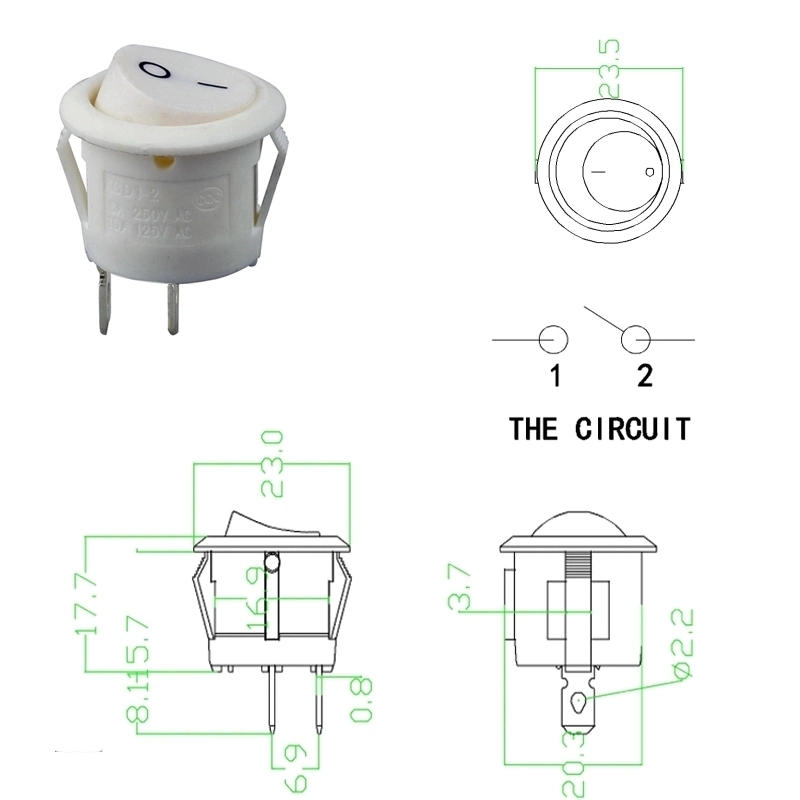

Circuit Diagram2pin on off
rating10A 125VAC; 6A 250VAC
contact resistance< 35MΩ
insulation resistance500VDC 1000MΩ Minute
Dielectric strength1500VAC, 1 Minute
operating temperature-25°C~+85°C
electrical life10000 CYCLES
materialNylon 66 copper silver-contacts
ApplicationUsed for electronic equipment and appliance
Operating force3-8N
Cold endurance-20+-2°C for 96H
Heat endurance105+-2°C for 96H
Humidity endurance40+-2°C 90-95%RH for 96h
Solder ability230+-10°C 3+-1Sec
Terminal strength80N


1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;

2. Original manufacturer package, the out package will be in a well condition

with suitable size to save the shipping cost;

3. Sample with same-day or the next-day delivery, bulk order within 3-7 days,

but depens on the exact quantity;

4. Customer shipping account are available;

5. If the declared value for customs clearance are required, please tell us before shipping;

6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea shipping.



Rock switch is applied to water dispenser, treadmill, computer speaker, battery car,

motorcycle, ion TV, coffee pot, row plug, massage machine, etc., mainly used for

household appliances and so on.



KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing

the components such as switches, sockets and connectors. The Production of Products

mainly used in computer products, consumer electronics, electrical & electronics, industrial

equipment & components......




1 More than 2,000 models of switches and sockets.

2 Monthly production capacity: 30 million pieces.

3 MOQ: 5,000pcs, it’s negotiable.

4 Good quality with competitive price.

5 We can offer free samples with shipping and taxes pay by the buyer.

6 Various operation force, height, and color for your choice.

7 The discount depends on your order quantity.



Q1: When can I have a quotation?

A: We provide 24 hours service, feel free to contact us at any time except for special festivals.


Q2: Can I get free samples?

A: Yes, we can provide 1-20 free samples according to your requirements.


Q3: Do you do ODM/OEM services?

A: Yes, we have 3 years experience on ODM/ OEM services.


Q4: Do you take small orders?

A: Yes, we assure you of our best services at all times. Feel free to contact us.


Q5: What's the lead time of mass production?

A: Generally 2-4 weeks. We will inform you the lead time after receiving your payment.


Q6: I can't find specific products, can you make it for me?

A: Yes, our catalog covers the majority of our products but not all. So feel free to let us know what you

want. We can also open new mould for specific requirements. For your reference, making a new mould

will take about 40 days, and additional fees are needed.
