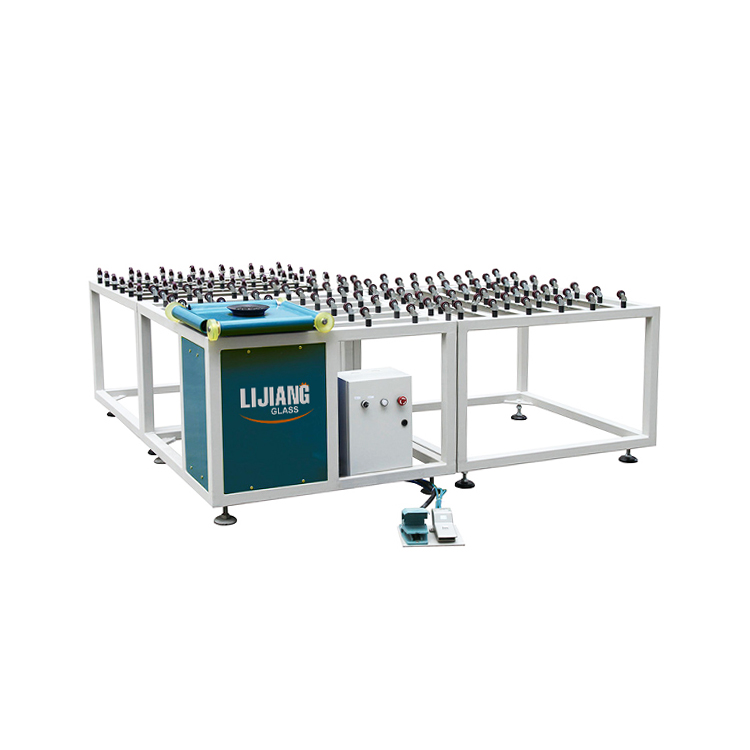

2000mm Rotating Glass Turning Spreading Table For Glass Sealing Machine

Categories Insulating Glass Production Line
Brand Name: Lijiang
Model Number: LJTJT200
Certification: CE
Place of Origin: Jinan
MOQ: 1 SET
Price: 2000 USD/SET
Payment Terms: L/C, T/T
Supply Ability: 20SETS/MONTH
Delivery Time: 10 days
Packaging Details: plastic film
Name: Rotating Glass Turning spreading Table
Min. glass size: 2000*2000 mm
Usage: For process insulating glass
Glass thickness: 3~18mm
Max. glass size: 2200*3000mm
Color: Blue or customize
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

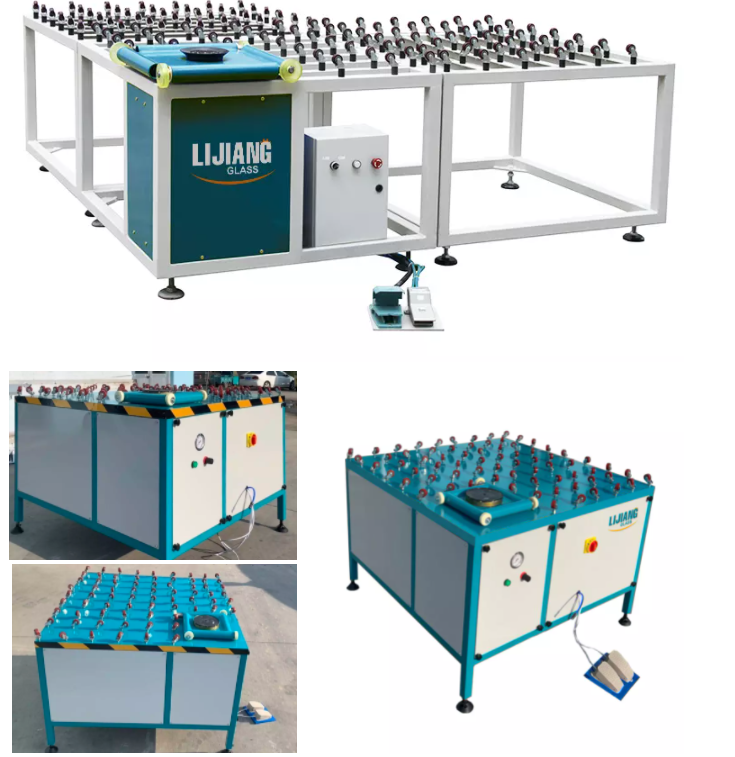

2000mm Rotating Glass Turning Spreading Table For Glass Sealing Machine

Glass Sealing Rotating Table Glass Turning Table With Rollers On Racks for insulating glass sealing

Usage of Rotating Table Machine For Turning Glass When Coating Sealants

Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.
Main features of glass rotating table:

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

19

Main feature of the rotating table machine :

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data

Power supply380V 50Hz
Total power0.37kw
Operating dimension2000*2000mm
Warranty1 year
Maintenance :
1. New machine through revolving of a period of time after, should open the plank, check whether each tight firmware loosen or not moves, laying equal stress on the new tight.
2. Make to complete each time, want to clean dust and gum clearances of the machine, combine to cover the turn over dish, keep dust from falling into sucker.
3. Prop up set and prop up the pole should periodically draw the lubrication grease, resisting rust.
4. The periodical check electricity connects whether line loose or not moves, and connect the dependable of the ground.
Attention :
1. When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.
2. Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.
Main construction :
This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.

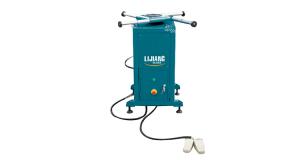

1.1 Revolve prop up the device
Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.
1.2 Spread to move the device
This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.
1.3 Spirit carries control system
This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.
