Acrel Split Core Current Transformer AKH-0.66/K

Categories Split Core Current Transformer
Brand Name: Acrel
Model Number: AKH-0.66/K-φ24

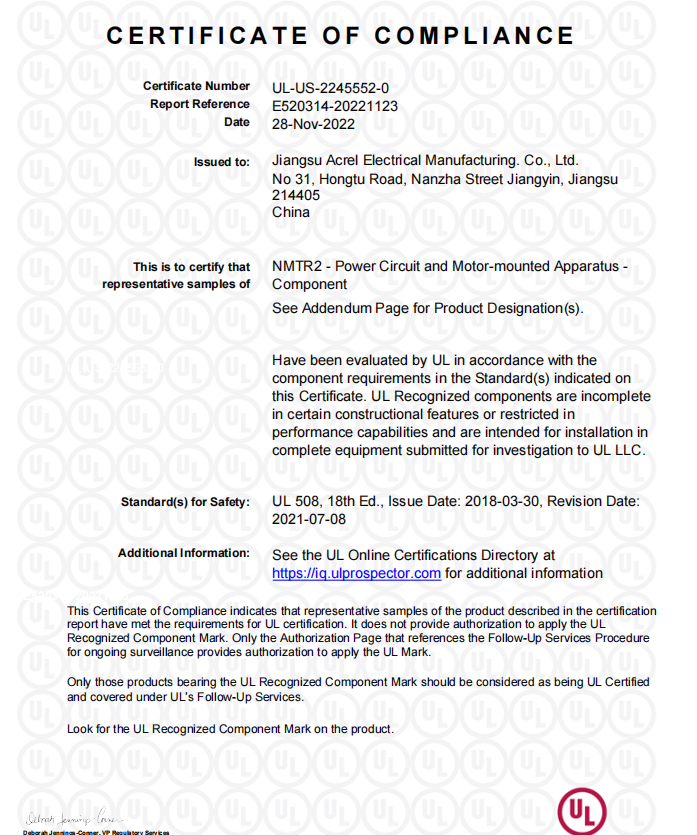

Certification: ul
Place of Origin: China
MOQ: 1 Pieces
Payment Terms: T/T
Supply Ability: 10000pcs/day
Delivery Time: 2-3 days
Packaging Details: cardboard box
AKH-0.66/K-φ24: Alternating Current (AC)
Accuracy: Class 0.5
Primary Current Input: 60~400A AC
Rated Voltage: 660V AC
Rated Frequency: 50~60Hz
Installtion: Clamp-on (installed on Cable)
Loop Count: 1 Loop
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

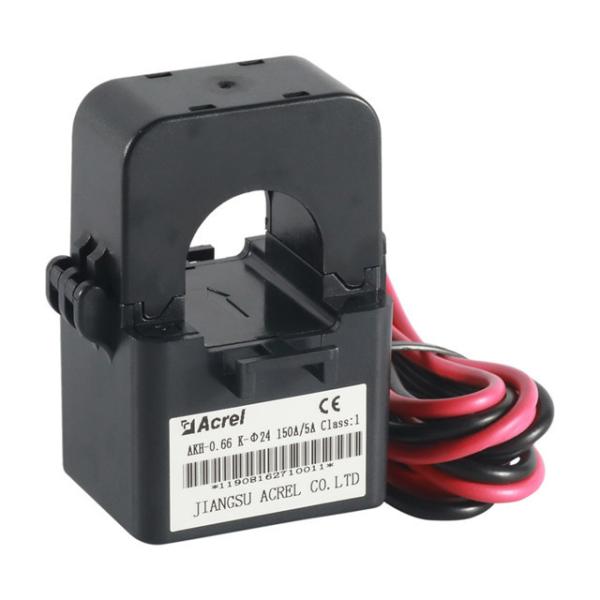

Acrel Split Core Current Transformer AKH-0.66/K

General


Split-core current transformers are built primarily for power grid construction or retrofit projects, beautiful appearance, convenient installation split core and wiring, mainly used in power operations and electricity reconstruction projects.


Technical parameter


Model Name

Current Ratio (Primary/Secondary)

Accuracy Class

Rated Load (VA)

Perforation Hole Size (mm)

AKH-0.66/K-φ10

5A/1.25mA

0.5

10

φ10

(10~20)A/5mA

(40~60)A/20mA

AKH-0.66/K-φ16

(20~50)A/10mA

φ16

(40~100)A/20mA

100A/40mA

100A/333mV

AKH-0.66/K-φ24

(60~200)A/20mA

φ24

(100~250)A/40mA

400A/100mA

(150~200)A/5(1)A

(250~300)A/5(1)A

AKH-0.66/K-φ36

(100~200)A/10mA

φ36

(200~400)A/20mA

(300~600)A/100mA

400A/40mA

400A/333mV

600A/75mA

(300~400)A/5(1)A

(500~600)A/5(1)A

AKH-0.66/K-φ50

(600~800)A/100mA

φ50

(500~1000)A/5(1)A

1000A/333mV

Features

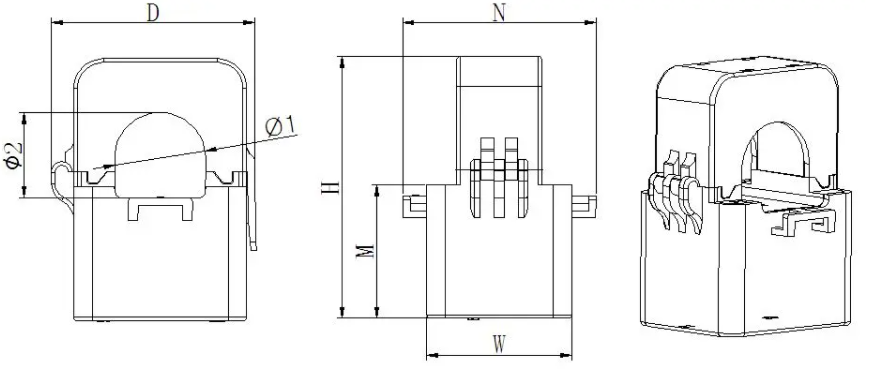

Dimension


Model NameOutline Size (mm)Perforation Size (mm)Tolerance (mm)
WHDMNφ1φ2
AKH-0.66/K-φ102740262436109±1
AKH-0.66/K-φ1631502928421617
AKH-0.66/K-φ1639714636522423.5
AKH-0.66/K-φ3642.58258405633.535
AKH-0.66/K-φ5046.5110905466.54752

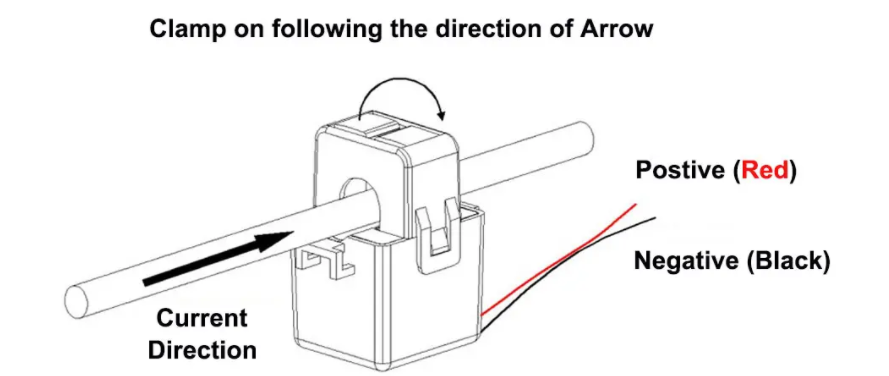

Wiring


Wiring
