FD19 Molex FFC FPC Connectors Terminal 505110 Series 5051105096

Categories Connectors Terminal
Brand Name: JST (JAPAN SOLDERLESS TERMINALS)
Model Number: 5051105096
Certification: ROHS
Place of Origin: JAPAN
MOQ: 50pieces
Price: Negotiated
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000PCS
Delivery Time: 3-7days
Packaging Details: Standard package
Details: Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 50 Circuits, 150°C Operating Temperature, Gold over Nickel Plating
Base Product Number: 50511
Category: Connectors, Interconnects-electrical terminal block connectors
Family: FFC FPC Connectors
Applications: Mass data storage,High-end and mid-range servers,Telecommunications equipment
Series Name: FD19
Comments: Black Actuator
For Use With/Related Products: 2.5mm pitch/disconnectable crimp style connectors
Stock: In Stock
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

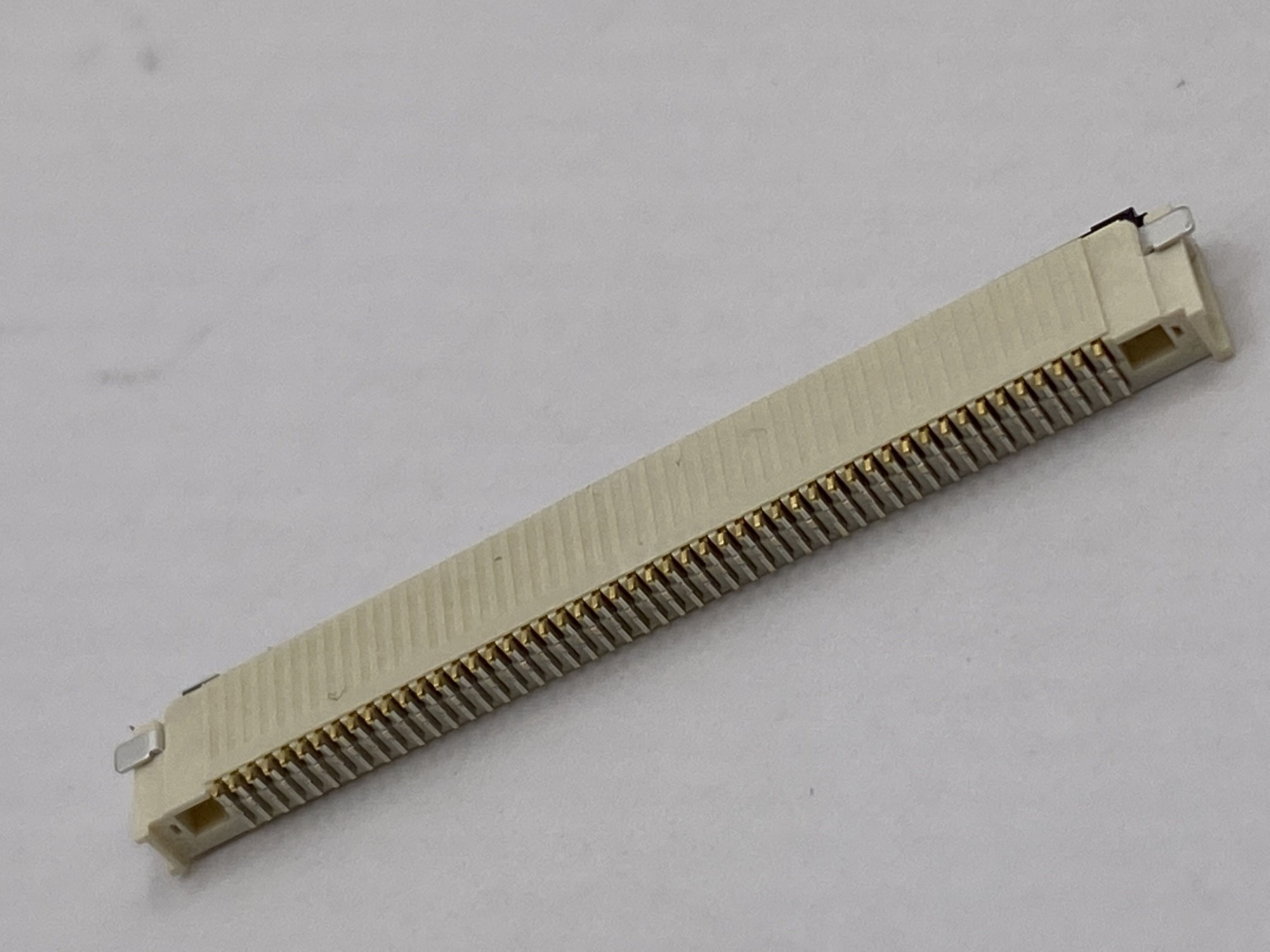

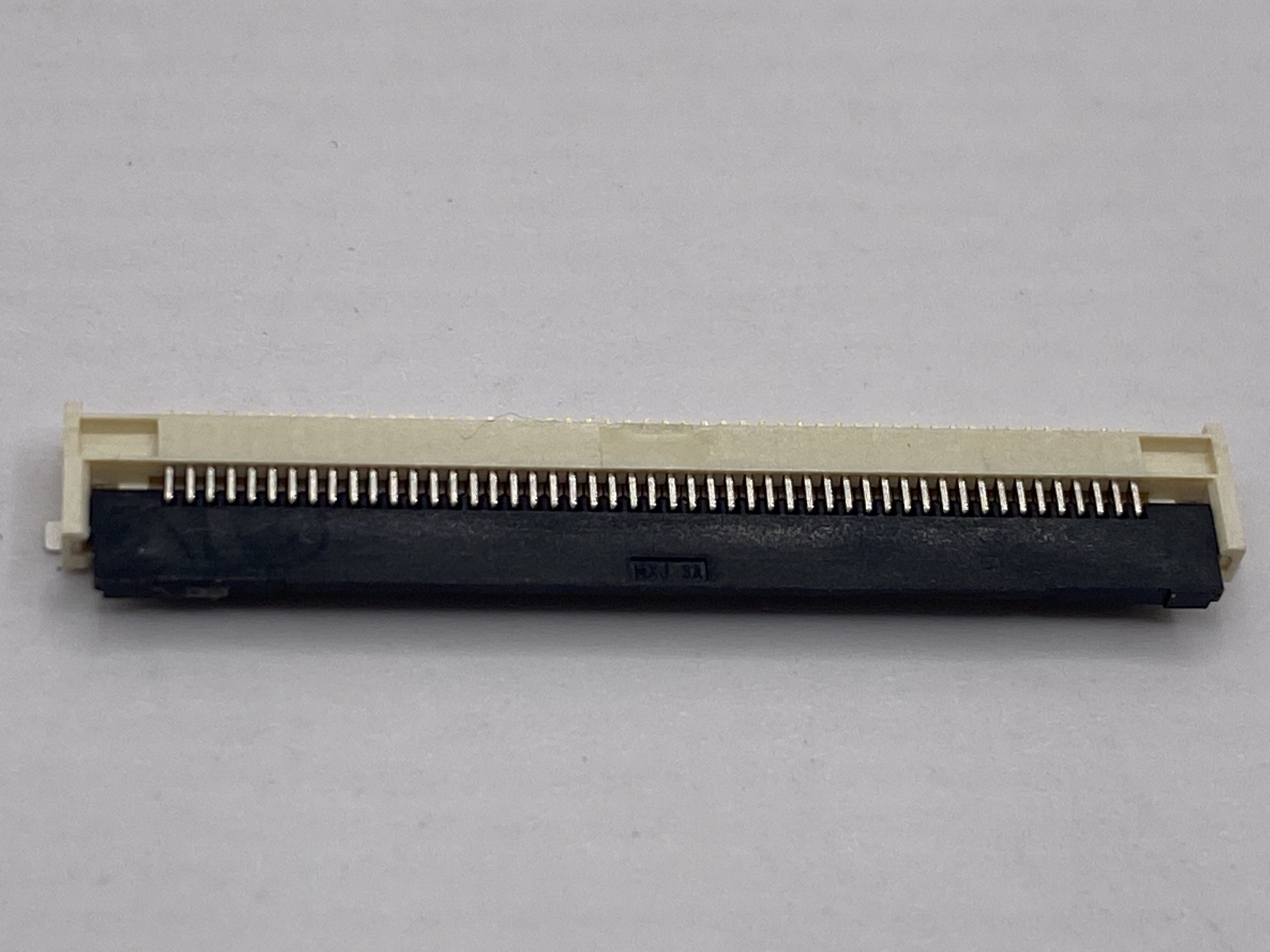

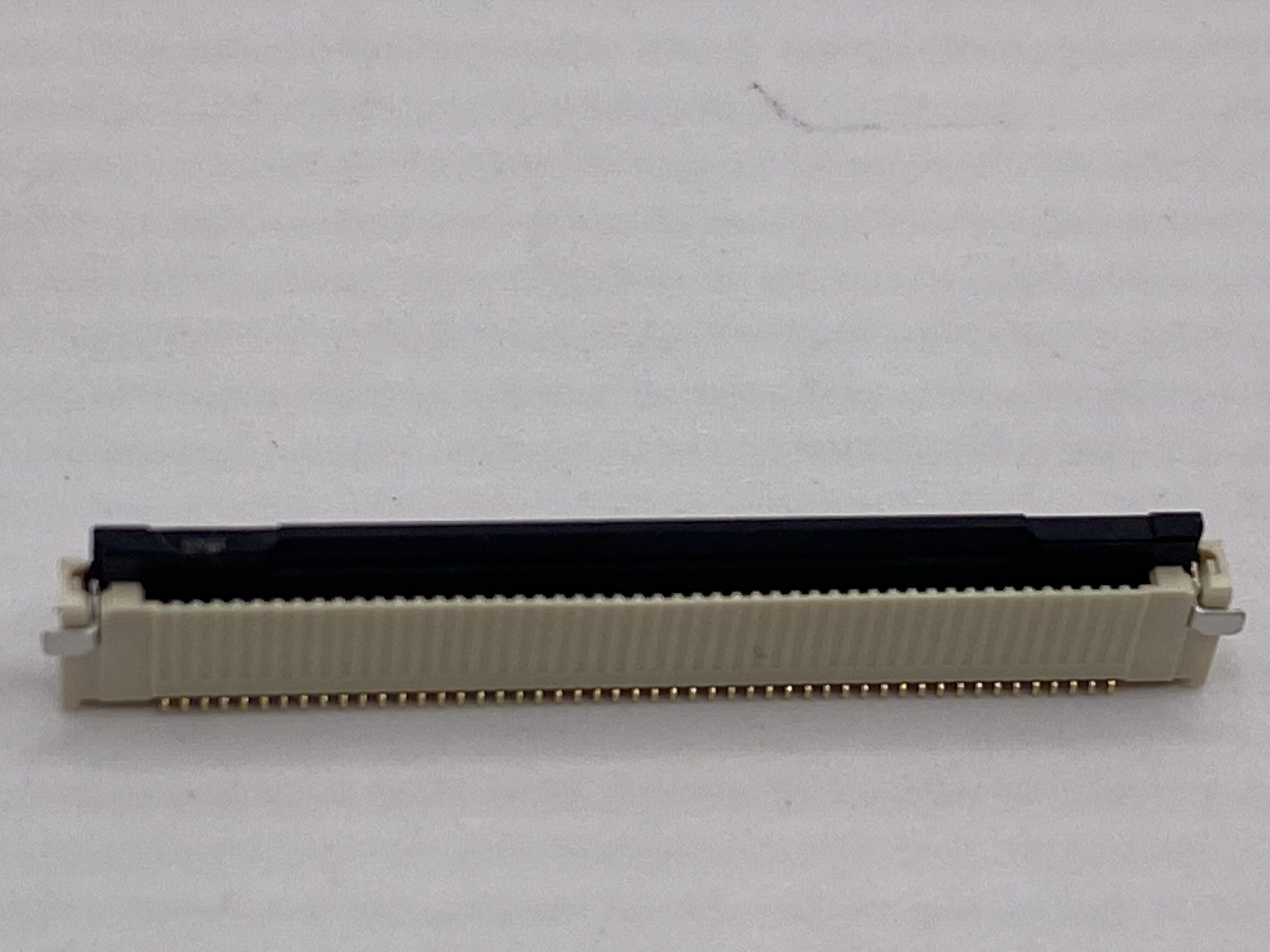

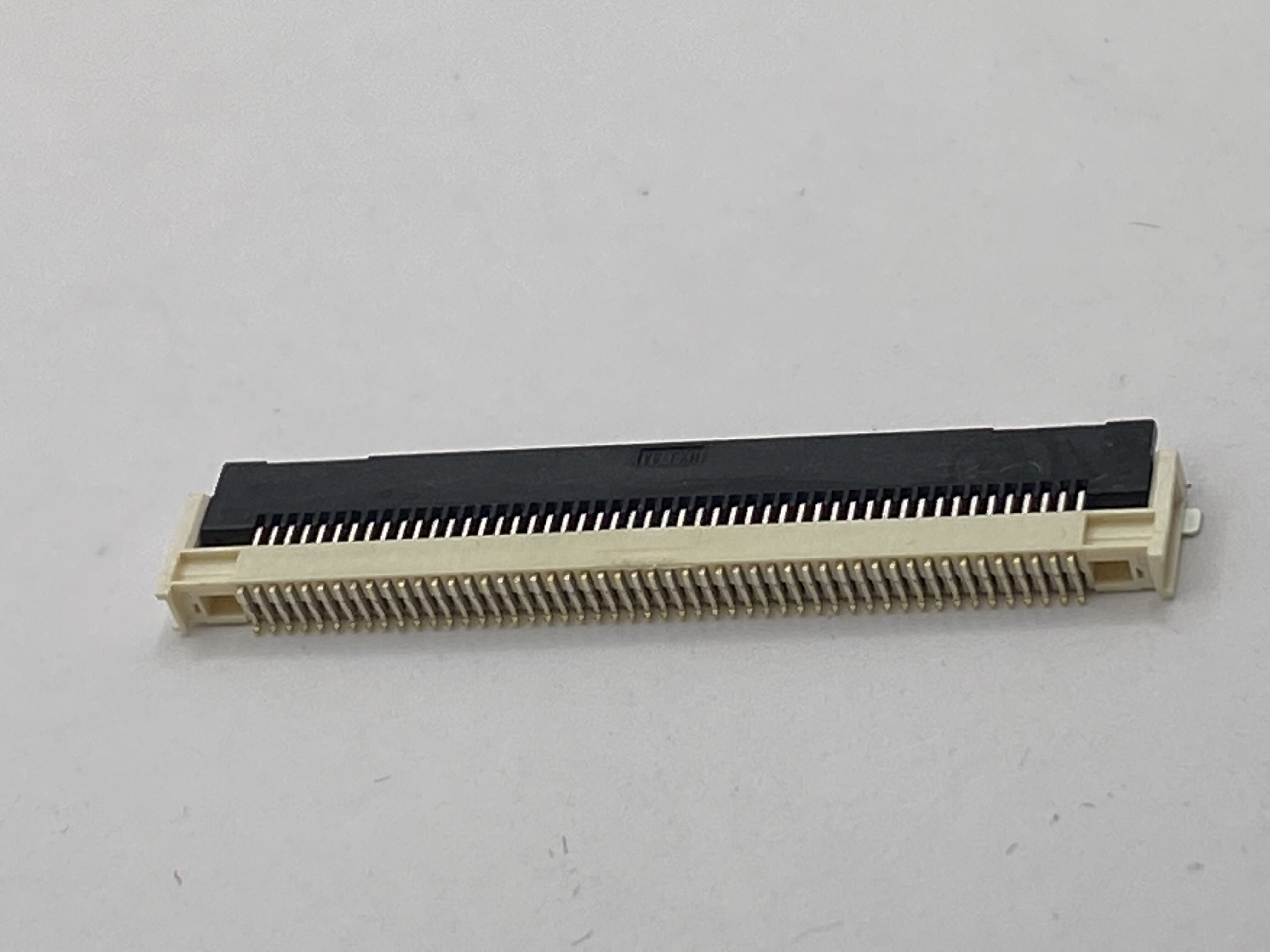

FD19 Molex FFC FPC Connectors Terminal 505110 Series 5051105096

5051105096 Molex FFC FPC Connectors 505110 series Connector Core Products


FD19 505110 series Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series,

Right-Angle, Bottom Contact, 1.90mm Height, 50 Circuits, 150°C Operating Temperature,

Gold over Nickel Plating-5051105096


General Views:

Product Family FFC/FPC Connectors
Series 505110
Comments Black Actuator
Overview Easy-On FFC FPC Connectors
Product Name Easy-On
Series Name FD19
UPC 889056535557
Physical
Actuator Type Front Flip
Circuits (Loaded) 50
Circuits (maximum) 50
Color - Resin Beige
Contact Position Bottom
Durability (mating cycles max) 20
Mated Height 1.90mm
Material - Metal Copper Alloy
Material - Plating Mating Gold
Material - Plating Termination Gold
Material - Resin Liquid Crystal Polymer
Net Weight 371.100/mg
Number of Rows 1
Orientation Right Angle
PCB Locator No
PCB Mounting Surface Mount
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface 0.50mm
Pitch - Termination Interface 0.50mm
Plating min - Mating 0.051µm
Plating min - Termination 0.051µm
Polarized to PCB Yes
Stackable No
Temperature Range - Operating -40° to +150°C
Wire/Cable Type FFC/FPC
Electrical
Current - Maximum per Contact 0.5A
Voltage - Maximum 50V

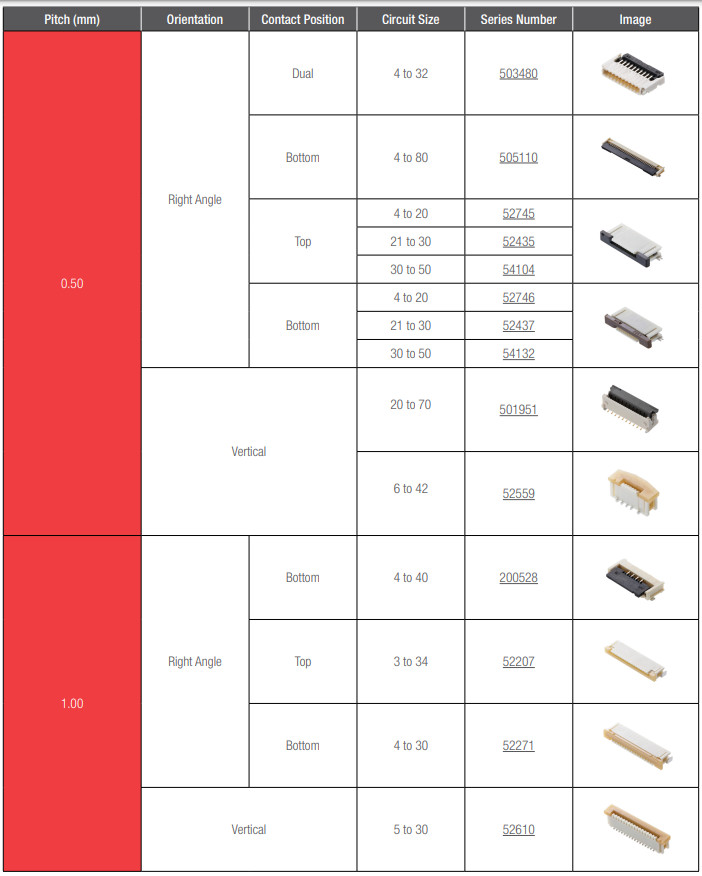

Easy-On FFC/FPC Connector Core Products :

Specifications:

Part number5051105096
Category
Connectors, Interconnects

Backplane Connectors - Accessories
Mfr
Molex
Series
FD19
Package
Bag
Part Status
Active
Accessory Type
Guide Pin
For Use With/Related Products
Specifications
Base Product Number
505110

Environmental & Export Classifications


ATTRIBUTEDESCRIPTION
RoHS StatusRoHS Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
ECCNEAR99
HTSUS8536.69.4040
