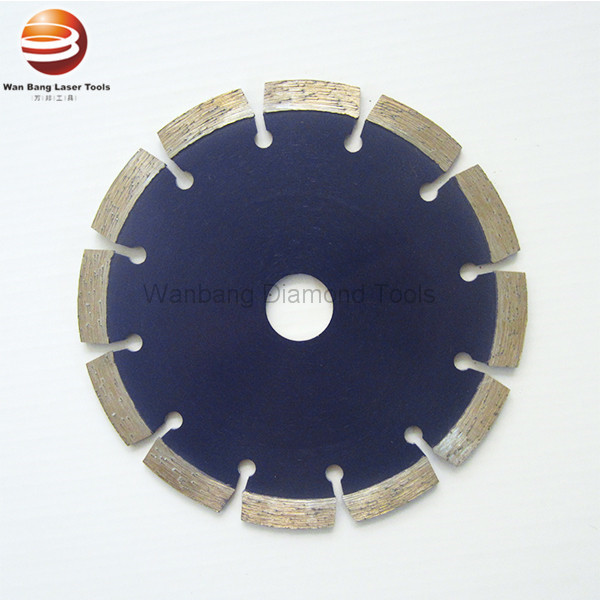

General Purpose Diamond Laser Welded 150mm Saw Blade With Flat Segment

Categories General Purpose Saw Blades
Brand Name: WANBANG
Certification: ISO9001
Place of Origin: Hubei, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10000pcs/month
Delivery Time: 10-15 days delivery time
Packaging Details: carton case/wooden case/pallet
Model Number: 150mm
Finishing: Painting,Polishing,Other
Type: Dry and wet cutting diamond circular saw blade
Color: Customize
Application: granite,Concrete,stone,marble
Product name: Diamond saw blade
Advantage: heat resistance,smooth and fast cutting speed,durable,long cutting life
Usage: Stone,Reinforced Concrete Structure,General purpose,Construction Cutting
Feature: Lower Noise,no-chipping.,Durable,Unique Firmula,High Speed.Straight Smooth Edge
Process: laser welded
Material: high quality diamond
Teeth: 12
Diameter: 6 inch
Segment type: flat segment
Certificates: ISO9001/CE/TUV
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

General Purpose Diamond Laser Welded 150mm Saw Blade With Flat Segment

Long Cutting Life 150mm Diamond Laser Welding Saw Blade With Flat Segment for General Purpose


High quality diamond saw blades can be used for cutting all kinds of non-metal material: concrete, reinforced concrete, asphalt, refractory materials, marble, granite, tile, ceramic sandstone, glass, and other general construction materials. Diamond cutting saw blades with different specifications from 105mm~3000 mm can be supplied according to customers' requirements.​


Feature:
- Suitable for wet/dry cutting.
- Light and easily-carried.
- Has smooth and fast cutting speed and long cutting life.
- The teeth are sharp, can be used for a long time.


Application: General construction materials, concrete slab, precast slab, granite, sandstone, stone slab, tile, concrete
* Higher quality diamond and long life/ fast cutting
* Dry or wet cutting
* Applicable for table saw, walk-behind saw, handhelded saw
* Different quality grade: Economic, standard, premium, professional
* 1" arbor with drive pin holes standard. Custom arbor sizes are available.
* Other special specifications and colors can be produced by clients' require

Specifications:
DiameterSeg. LxT(mm)Seg. heightSeg.No.Cutting Materials
4.5"115mm31.5*2.410/12mm9Concrete/General purpose
5"125mm31.5*2.410/12mm10Concrete/General purpose
6"150mm31.5*2.410/12mm12Concrete/General purpose
7"180mm31.5*2.410/12mm14Concrete/General purpose
9"230mm38.5*2.610/12mm16Concrete/General purpose
12"300mm40*3.210/12mm21Concrete/General purpose
14"350mm40*3.210/12mm24Concrete/General purpose
16"400mm40*3.410/12mm28Concrete/General purpose
18"450mm40*3.610/12mm32Concrete/General purpose
20"500mm40*3.610/12mm36Concrete/General purpose
24"600mm40*4.010/12mm42Concrete/General purpose
26"650mm40*4.210/12mm42Concrete/General purpose
28"700mm40*4.610/12mm45Concrete/General purpose
32"800mm40*4.810/12mm52Concrete/General purpose
36"900mm40*4.810/12mm60Concrete/General purpose

WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.


As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
