| Categories | Current Transformer |
|---|---|
| Place of Origin: | China |
| Brand Name: | Yomin |
| Model Number: | CY-KCT 01B |
| Usage: | Current |
| Phase: | Single |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Material:: | Epoxy resin |
| Input voltage:: | 110V/220V |
| Color:: | Grey |
| Certification:: | ROHS |
| Frequency:: | 50/60Hz |
| Rated voltage:: | 660 |
| Type:: | Split Core Transformer |
| Accuracy class: | 0.5 |
| Phase:: | Single |
| Coil Number:: | 15 turns |
| Packaging Details: | 1. Standard Export Carton for certain inner packaging. 2. Inner Packaging providing Mounting Accessories. 3. Quality poly bags for each products. |
| MOQ: | 10 Pieces |
| Price: | $3.01/Pieces 10-99 Pieces |
| Company Info. |
| Yueqing Yomin Electric Co., Ltd |
| View Contact Details |
| Product List |

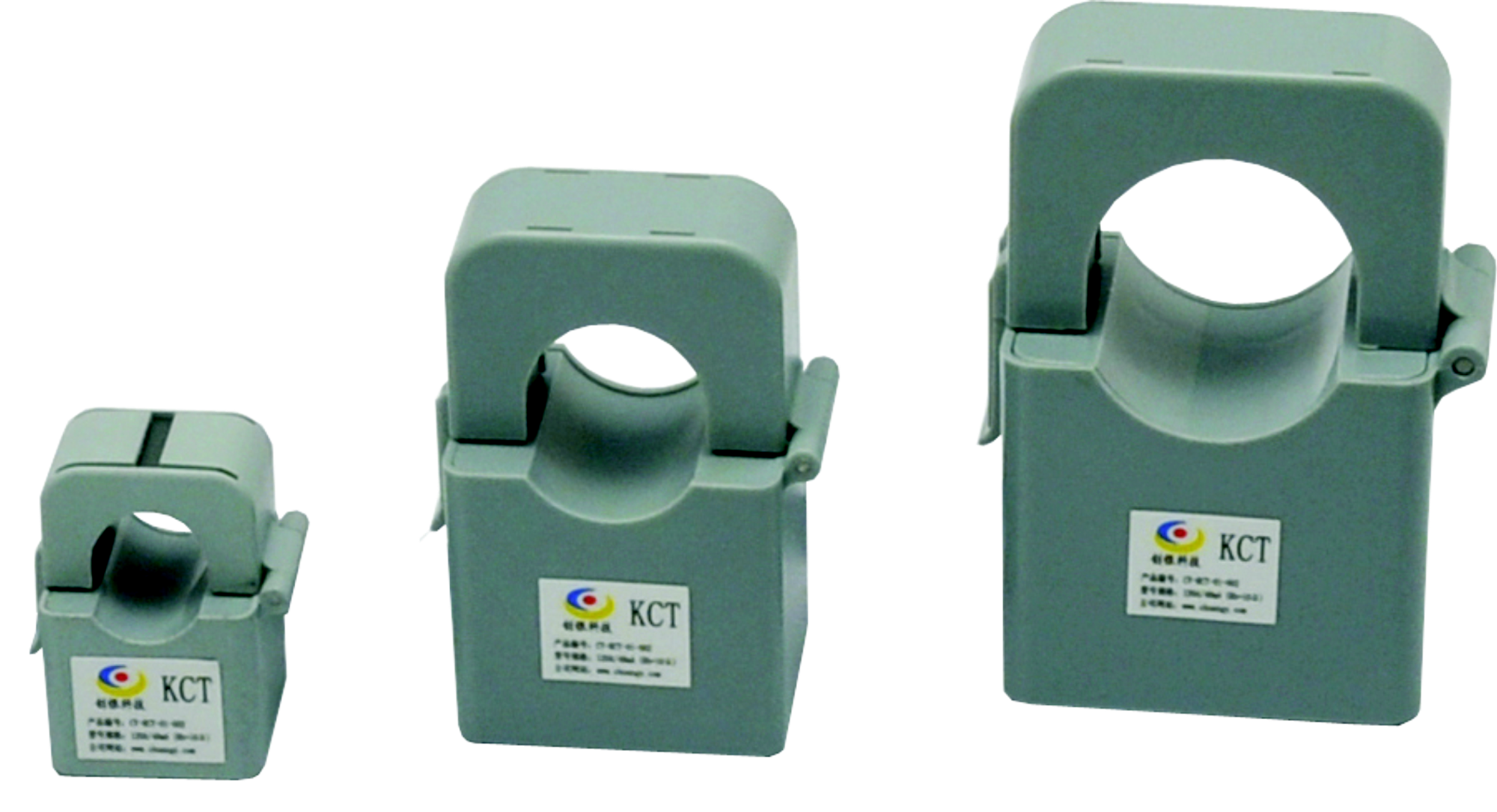

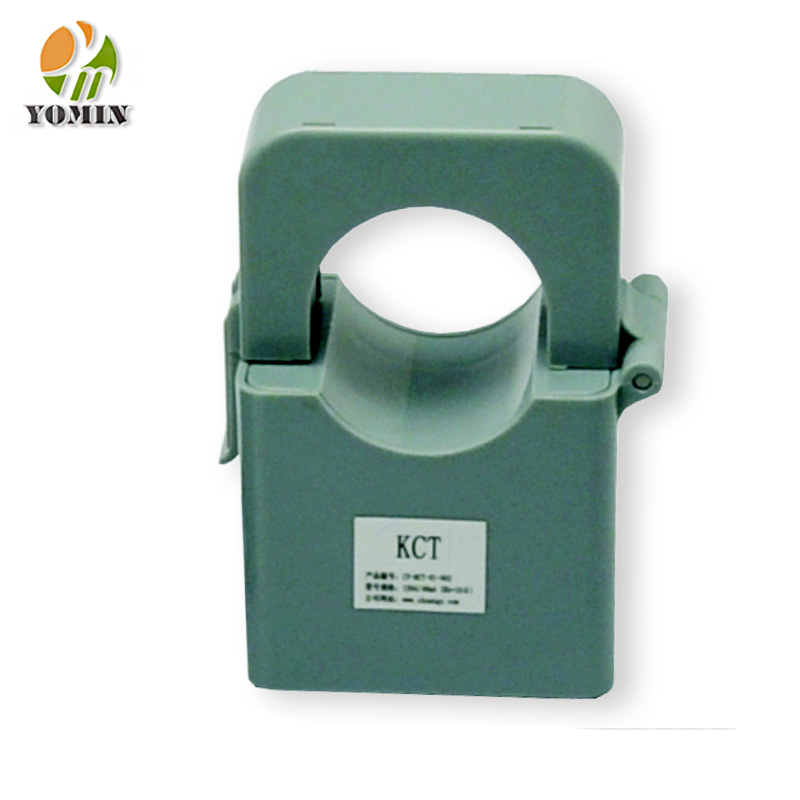

High Accuracy Mini Split Core 600/5A KCT Type Current Transformer

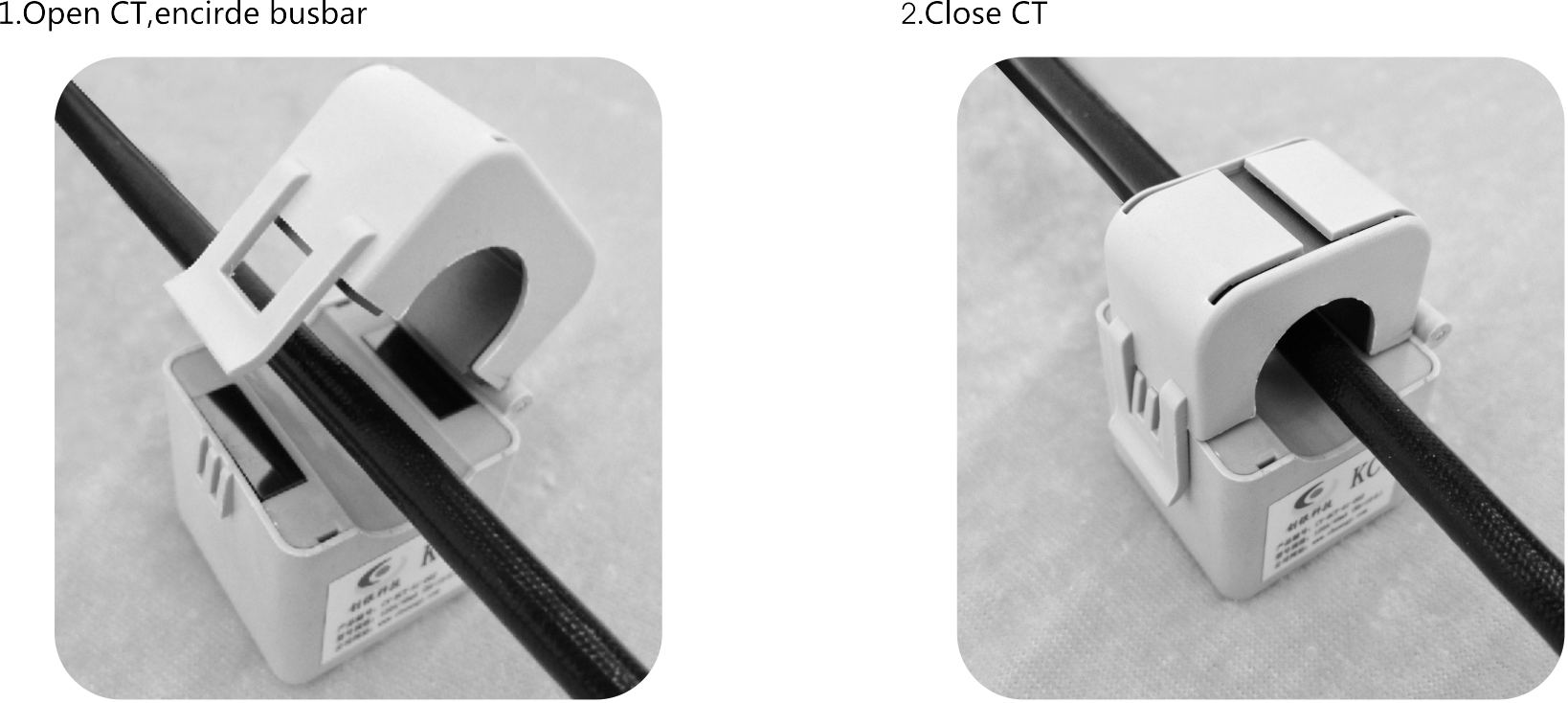

The "KCT01B Split Core Current Transformers" are designed for easy installed without the need for dismantling the primary busbar or cables.They output 5A or 1A standard secondary currents which can directly match the input terminals of electric energy meter and measure and control instruments in power system.They are applied to electric measure and control equipments like power electric energy meter,swich cabinet,control cabinet ,etc.
|
