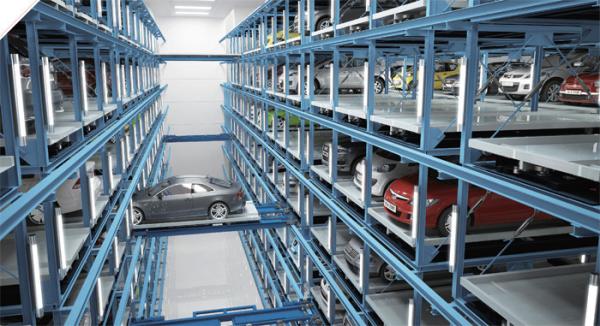

PPY Horizontal Circulation Parking System 2200kg 6 Levels

PPY High Efficiency High Parking Density Full Automatic Plane Moving Parking System

Product characteristics

• It adopts no platform transfer technology, parking density is high and safe, reliable, high degree of automation, high efficiency of access car.
• It has an automatic centering device that can be rotated during operation.
• It is mainly divided into single-layer horizontal movement and multi-layer horizontal movement.
• It is suitable for building on the ground, underground, or combined automatic intelligent stereo garage on the ground and underground.
• It is suitable for large stereo garage or parking lot.

Work Principle

When storing the car, the car is parked on the platform at the entrance of the parking lot.The detection device at the entrance of the vehicle can park the vehicle on the parking floor of different heights by detecting the height of the vehicle. The robot moves underneath and moves the vehicle

to the transporter using the comb gear cross action. It moves underneath the vehicle and moves it to a shuttle trolley or lifter,

When picking up the car, the user swipes his card or makes an appointment through APP at the exit of the parking lot, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of storage frame, and uses the comb gear cross action to move the vehicle from the storage frame to the transporter. Then the vehicle is moved to the suttle trolley or lifter through the horizontal movement, and the vihicle is finally transported to the extrance of the parking lot and turned the front end to exit direction, which it convenient for users to pick up the car, then park the vehicle to a specific parking space throught the horizontal movement, and finally transport the vehicle to the entrance of the parking lot and turn the front end to exit direction, which is convenient for users to pick up the car.

Equipment structure

PPY plane mo parking system is mainly composed of steel structure, lifter, carrying trolley, auto conveyor(trolley robot), car frame, turntable, exit and entrance system, test device, safety device, intelligent frequency conversion control system, monitoring, and parking charge management system.

Technical Parameters

Shanghai Changyue Automation Machinery Co., Ltd, an established Factory in Jiangsu,China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking systems offered to our customers worldwide.

We enjoy excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Shearing Machine, Laser Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

ChangYue's Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.

Units are designed according to EN 60204-1: 2018, EN ISO 12100:2010, EN 14010: 2003+A1:2009 standards and  products certified according to machinery directive 2006/42/EC.
