| Product name: | 32A MCB Residual Current Operated Circuit Breaker |
| Poles Number: | 1P+N |
| BCD Curve: | C |
| Material: | Plastic, Metal |
| Color: | White, customized |
| Port: | Qingdao Shanghai Ningbo |
| Rated Frequency: | 50Hz |
| Rated current: | 6A...32A |
| Rated voltage: | 230V |
| Warranty: | 1year |
63A MCB Circuit Breake Residual Current Operated Circuit Breaker
Application
DZ30LE-32 residual current circuit breaker (hereinafter call RCB) is mainly operating in the line of AC 50/60HZ, rated voltage 230V, rated current up to 32A, used to protect from electric shock, electric leakage of equipment, also prevent overloading, short circuit, also to switch on/off electric devices or light system non-frequently, especially suitable for industrial and commercial lighting system. If necessary, over-voltage protection can be added, o/v value Uvo=280V. The product complies with GB 16917.1,IEC 61009-1 standards.
Normal operating conditions
Ambient air temperature: -5°C~+40°C, the mean value is no greater than +35°C within 24 hours .
Altitude: not higher than 2000m for the installation site.
Installation category: II, III grade.
Pollution degree: 2.
Installation: TH35-7.5 DIN rail
Main specifications
Graded as follows according to the rated current In: 6A, 10A, 16A,
20A, 25A, 32A;
Categorized as follows according to the number of poles and current
circuit: Single pole and two lines (1P+N)
Classified as follows according to the type of instantaneous
release: C type (5-10) In
Technical parameters
| Frame size rated current | Poles | Rated current | Rated voltage | Circuit capacity |
| 32 | 1P+N | 6, 10, 16, 20, 25, 32 | 230 | 4500 |
For the over current protection characteristics
| NO. | Rated current | Initial state | Test current | Time limit | Expected result | Remarks |
| A | ≤32A | Cold state | 1.13In | t≥1h | No tripping | |
| B | RIght after Test No.a | 1.45In | t<1h | tripping | The current is rising within 5s | |
| C | Cold state | 2.55In | 1s<t<60s | tripping | ||
| D | Cold state | 5In | t≥0.1s | No tripping | The power supply is tumed on by closing the anxiliary switch | |
| E | Cold state | 10In | t<0.1s | tripping |
Residual current protection characteristic:
a. Rated residual operating current I△n: 0.03A;
b. Rated residual non-operating current I△no: 0.015A;
c. Rated residual making and breaking capacity I△m: 500A;
d. Residual current breaking time
| Breaking time when the residual current assumes the following values (s) | |||||
| ln(A) | IΔn(A) | ||||
| lΔn | 2IΔn | 5IΔn | 500A | ||
| 6~32 | 0.03 | 0.1 | 0.08 | 0.04 | 0.04 |
Overvoltage protection: Uvo = 280V ± 14V
Mechanical and electrical life:
Mechanical life: 4,000 times, Electrical life: 2000 times.
Wiring: using residual current operated circuit breaker see Table 4
select copper
wire cross-sectional area.
| Rated current | ln≤6 | 6<ln≤13 | 13<ln≤20 | 20<ln≤25 | 25<ln≤32 |
| Nominal cross-sectional area of the copper conductor | 1 | 1.5 | 2.5 | 4 | 6 |

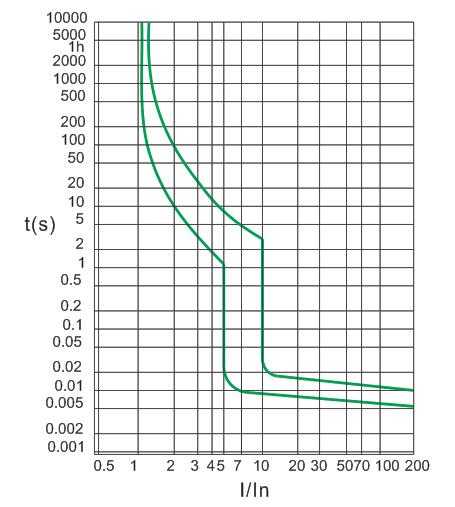

Characteristic curve

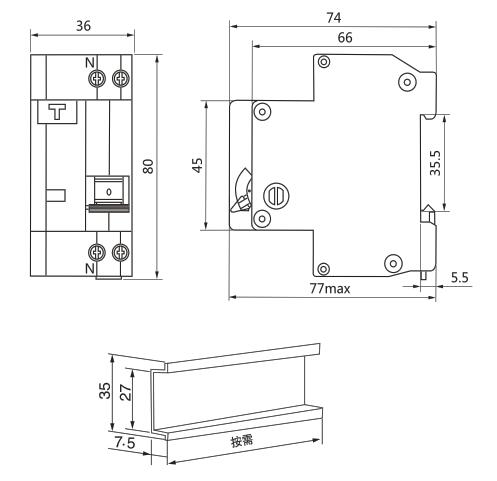

External And Installation Size
Structural features
Small size, compact structure. the price is cheaper than other same productThe shell and some functional parts made of high flameproof, hi-temperature withstand, impact withstand plastic material.The product directly connected with neutral line, to avoid wrong connection and leading to electric shock.The product adopted the latest circuit design and hi-performance components, it can withstand high surging current and over-voltage and avoid wrong tripping.Rail mounting, easy installation and save time.
