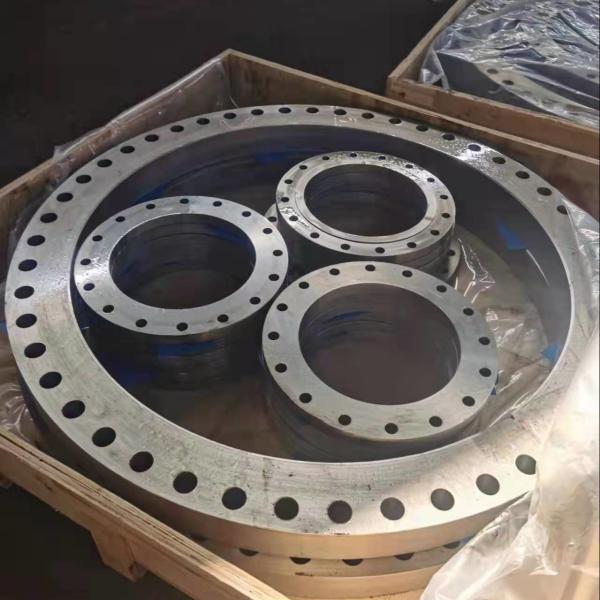

Class 150 Ansi B16.5 Stainless Steel Flanges 1/2inch

Categories Stainless Steel Flanges
Brand Name: Cencho
Model Number: DN15 - DN1800
Certification: ISO9001 / CE
Place of Origin: Hebei, China
MOQ: 50pcs
Price: Discussible
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200tons/month
Delivery Time: 5-10 work days
Packaging Details: Standard wooden cases and cartons
Material: Stainless steel
Dimensions: DN15 - DN1800
Connection: Welding, Threaded
Standard: ANSI, BS, DIN, GB, ISO, JIS, JPI, ASME
Quality Control: ± 0.1mm
Surface treatment: Machining
Logo Printing: Customizable
Flange Tolerance: Investment casting/Forged
Technique: Casting stainless steel flange
Packing: Wooden box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Class 150 Ansi B16.5 Stainless Steel Flanges 1/2inch

ANSI B16.5 Stainless Steel Flange Stainless Steel Flanges


1. This is the Din ANSI B16.5 stainless steel flange stainless steel flanges.

2. Different pressure stainless steel flanges, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding stainless steel flanges shape, also known as stainless steel flanges connection.

3. Usually closured bolted connection parts are also known as stainless steel flanges, such as the connection of ventilation pipe, this kind of parts can be called "stainless steel flanges type part",

4. But this connection is only part of a device, such as the connection between stainless steel flanges and water pump, it's not inapposite to call water pump as stainless steel flanges type parts,but relative small valve,it can be called as stainless steel flanges type parts .


Meaning of PN

PN is the nominal pressure, which means that the unit is 0.1MPa in the international system of units and kgf / cm2 in the engineering system of units. Pipe stainless steel flanges commonly used bar (kgf / cm2, 1bar = 0.1MPa), equipment stainless steel flanges commonly used MPa.


Product NameClass 150 Flange Dimensions Stainless Steel Flange Fitting Pipe Flange
ItemsPlate, Welding Neck, Slip on, Blind, Socket Welding, Lap joint, Threaded Flange etc.
StandardANSIANSI B16.5, ASME B16.47 series A/B
DINGermany 6bar, 10bar, 16bar, 25bar, 40bar
GOSTGOST 12820/12821/12836
EN1092-1EN1092-01/05/11/12/13
JISJIS B 2220-1984, KS B1503, JIS B 2216
BS4504BS4504 BS10 Table D/E
MaterialANSICS A105, S235, Steel 20; SS 304/304L, 316/316L
DINCS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L, 316/316L
GOSTCS Steel 20, 16MN, Q235
EN1092-1CS RST37.2, S235JRG, C22.8
JISSS400, SS 304/304L, 316/316L
BS4504CS RST37.2, S235JRG, C22.8; SS 304/304L, 316/316L
PressureANSIClass 150, 300, 600, 900, 1500, 2500lbs
DINPN6, PN10, PN16, PN25, PN40
GOSTPN6, PN10, PN16, PN25, PN40, PN63, PN100
EN1092-1PN6, PN10, PN16, PN25, PN40, PN63, PN100
JIS5K, 10K, 16K, 20K, 30K, 40K
BS4504PN6, PN10, PN16, PN25, PN40
SizeANSI1/2 " - 80 "
DINDN15-DN2000
GOSTDN15-DN2000
EN1092-1DN15-DN2000
JIS15A-1500A
BS4504DN15-DN2000
