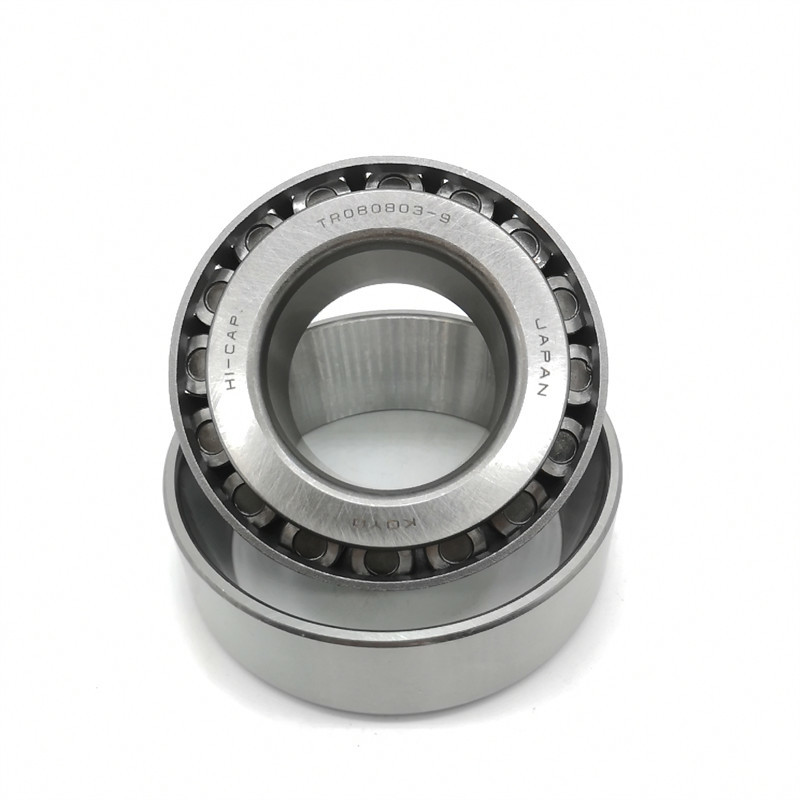

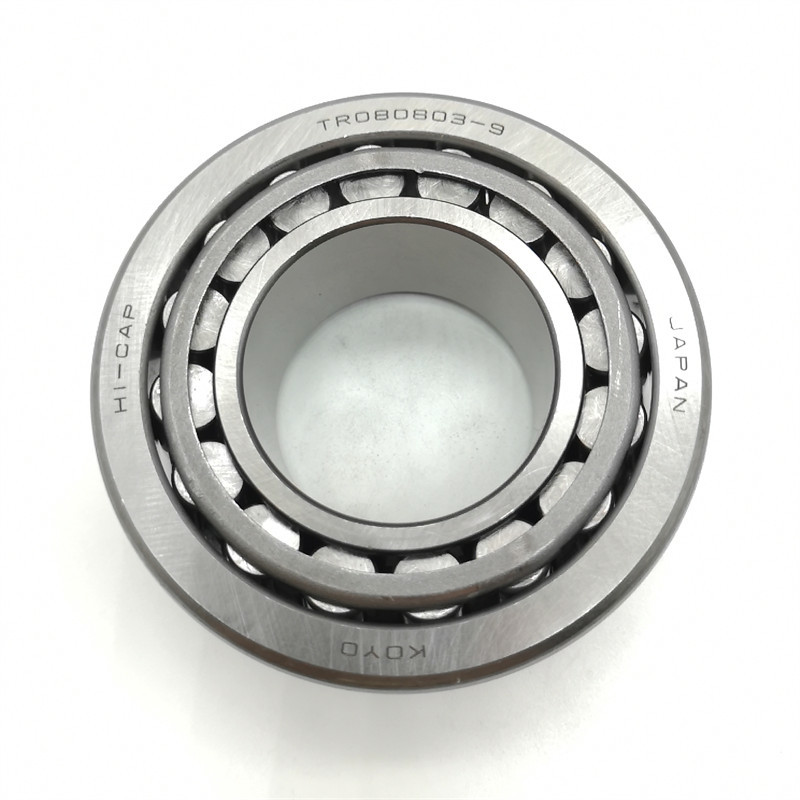

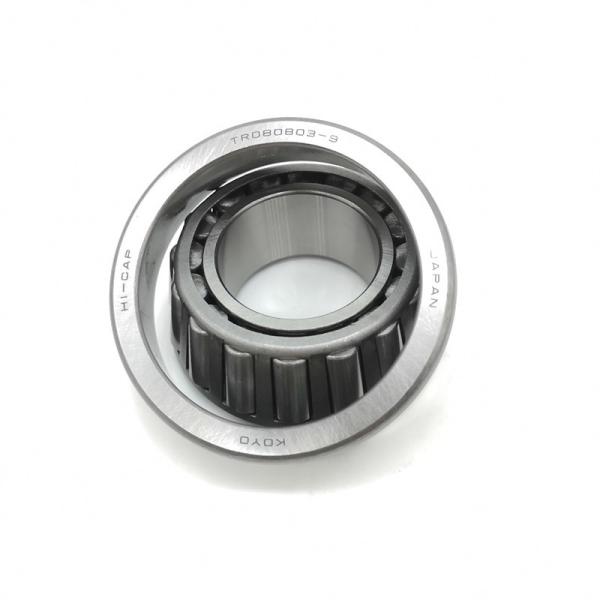

Hi-Cap Tr 080803 R-9 Taper Roller Bearing 40x80x30mm R40/15
Tapered Roller Bearing Specification
Taper Roller Bearing Information |
| | Brand Name | Koyo Bearing or according to your requirement | Item Name | TR080803R9 QRL Brand Taper Roller Bearing TR080803 Auto Bearings | OEM Code | Bearing TR080803 or TR080803R9 or TR080803R | Used | For Renault Peugoet ,engine, agricultural machinery |
|
Inch Taper Roller Bearing Description
Tapered roller bearings are generally of separable design and have
tapered cone and cup raceway between which tapered rollers are
arranged. Their design makes tapered roller bearings particularly
suitable for carrying combined (radial and axial) load.
According to dimensional standard difference, tapered roller
bearings can be grouped into metric and inch size series.
Product number
Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS |
d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | (~ Kg.) |
LM 102949 / LM 102910 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 76 | 54 | 4800 | 6400 | 0.307 |
LM 603049 / LM 2603011 | 45.242 | 77.788 | 19.842 | 15.08 | 19.842 | 70.3 | 55.3 | 5850 | 7500 | 0.37 |
HM 204049 / HM 204010 | 45.987 | 90.975 | 32 | 26.5 | 32 | 150.5 | 119.1 | 4300 | 5600 | 0.94 |
359-S/354X | 46.038 | 85 | 21.692 | 17.462 | 20.635 | 89.5 | 76.1 | 4400 | 5800 | 0.49 |
369 - S / 362 A | 47.625 | 88.9 | 22.225 | 16.153 | 20.638 | 91 | 76.5 | 4300 | 5600 | 0.55 |
HM 804846 / HM 804810 | 47.625 | 95.25 | 29.37 | 23.02 | 30.162 | 140 | 104.3 | 4000 | 5300 | 0.98 |
528/522 | 47.625 | 101.6 | 36.068 | 26.988 | 34.925 | 169 | 137.3 | 3800 | 5000 | 1.29 |
CK 50 K / 3720 | 50 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.87 |
JW 5049 / JW 5010 | 50 | 105 | 29 | 22 | 32 | 145.5 | 114.3 | 3400 | 4500 | 1.23 |
370A / 362A | 50.8 | 88.9 | 22.225 | 16.513 | 20.638 | 91 | 76.5 | 4300 | 5600 | 0.51 |
28580 / 25821 | 50.8 | 92.075 | 25.4 | 19.845 | 24.607 | 116.1 | 84.2 | 4000 | 5300 | 0.7 |
455/452 | 50.8 | 107.95 | 29.317 | 27 | 32.557 | 148 | 115 | 3500 | 4700 | 1.34 |
3780 / 3720 | 50.8 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.84 |
33889 / 33822 | 50.8 | 95.25 | 28.575 | 22.225 | 27.783 | 140 | 107.3 | 3900 | 5200 | 0.88 |
Taper Roller Bearings Applications
As the leading manufacturer of bearing in China, Zhonglu produces a
wide range of ball and roller bearings such as deep groove ball
bearings, tapered roller bearings, cylindrical roller bearings,
spherical ball bearings, spherical roller bearings,single row
angular contact bearings, double row angular contact bearings,
needle roller bearings, thrust ball bearings, spherical plain
bearings, spherical bearings, automotive bearings pump bearings,
and many non-standard bearings etc..We could supply bearings with
best price and quality, such as SKF/TIMKEN/KOYO/NSK/NTN/IKO/FAG
bearings. For 11 years experiences,
ZhongLu has been specializing in bearings′ design, production,
sales, marketing and service. Bearings have flied to USA, Europe,
Middle East, Asia and Africa
