| Categories | Grooved Winch Drum |
|---|---|
| Brand Name: | LBS |
| Model Number: | LBSD Series |
| Certification: | CCS, ABS |
| Place of Origin: | Shijiazhuang Hebei China |
| MOQ: | 1 Piece |
| Price: | USD, EUR, RMB / Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Pieces Per Month |
| Delivery Time: | General Order 15-30 Days |
| Packaging Details: | Export Standard Wooden Case |
| Product name: | Grooved Winch Drum |
| Material: | Alloy steel Q355B |
| Groove Type: | lebus Grooves |
| Surface Treatment: | Hot Spray Zinc |
| Surface Color: | Gray |
| Structure: | Welded |
| Dia.of rope: | 6mm~8mm |
| layer: | 1 Layer |
| Warranty: | 1year |
| Rope Capacity: | 30m |
| Company Info. |
| Hebei Junke Machinery Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
| Product name | Customizble Alloy Steel 6mm Diameter Wire Rope Lebus Grooved Winch Drum |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |
1. The flanges of drum shall be perpendicular to drum wall at any
conditions,even under the load.
2. The rope must be kept under tension in the process of spooling
so that the rope will be crushed against groove wall. When spooling
can not meet this condition,a press roller shall be used.It is
generally recommended that the tension of the rope should be at
least 2% breaking tension or 10% working load.
3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5. The rope must be kept round,not loose,even under the maximum load.
6. The rope must be anti-rotation structure.
Pls measure the change of rope diameter under different load

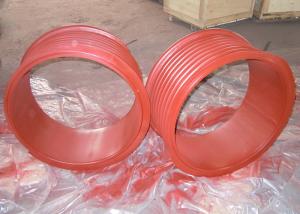

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment
Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang City,our main products are hydraulic orbit motors,hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional after-sales service.We can supply technical support as long as you need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we do?
You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to
send 1pc for quality testing
|
