Description
This HD-SDI Fiber Converter has 2-ch HD-SDI input and 2-ch HD-SDI loop out in transmitter end, has 4-ch quad HD-SDI output in receiver end. It means this extender has spliter of each input and out SDI signals in TX and RX. It has internal SFP broadcast HD-SDI optical transceiver module inside the housing. Uncompressed technology with CWDM solution.
Features
1. 2-ch HD-SDI/ASI video with embedded audio over one fiber optic cable over CWDM, every SDI signal has loop out
2. Compatible with HD-SDI, SD-SDI, DVB-ASI
3. Bandwidth range from 19.4Mb/s to 1.485Gb/s
4. SMPTE 292M (1.485Gb/s) clock recovery
5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE 297M working at HD-SDI, SD-SDI, ASI respectively
6. Built-in CWDM system, SFP modules for each path
7. Support automatic cable equalization based on the data rate detected
8. LED status indicators monitor the critical parameters
9. We could make it as your requested specifications

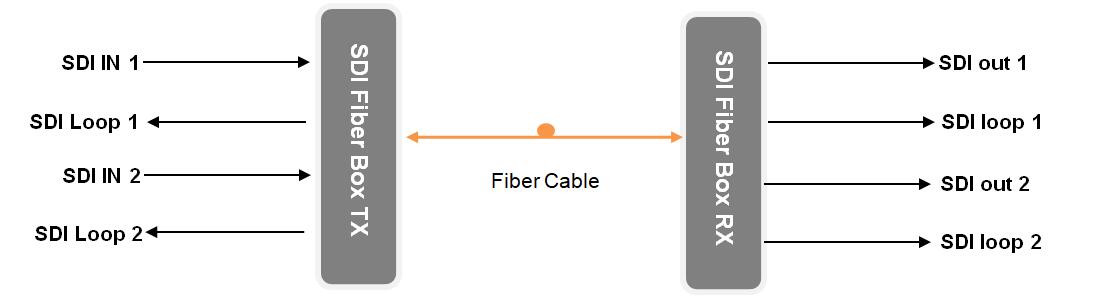

Diagram
|
