| Categories | Conventional Lathe Machine |
|---|---|
| Place of Origin: | China |
| Brand Name: | smtcl symg |
| Model Number: | CA6140/CA6240A |
| Certification: | CE ISO |
| Packaging Details: | Package suitable for long distance sea freight |
| Supply Ability: | 30 Set/Sets per Month |
| Price: | Negotiable |
| MOQ: | 1 Set |
| Delivery Time: | 30-40days |
| Product name: | CA6140A/CA6240A Conventional Turning Lathe |
| Max. Length of Workpiece (mm): | 2000 |
| Width of bed (mm): | 210mm |
| Max. Turned Length (mm): | 1900 |
| Max. Swing Diameter (mm): | 400 |
| Max turning dia over carriage: | 210mm |
| Max workpiece length: | 750,1000,1500,2000 |
| Width of bed: | 400mm |
| Spindle Speed Ranges: | 11-1600 R/min (24kinds) |
| Travel of cross slider: | 320mm |
| Company Info. |
| Shanghai HD M&E Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

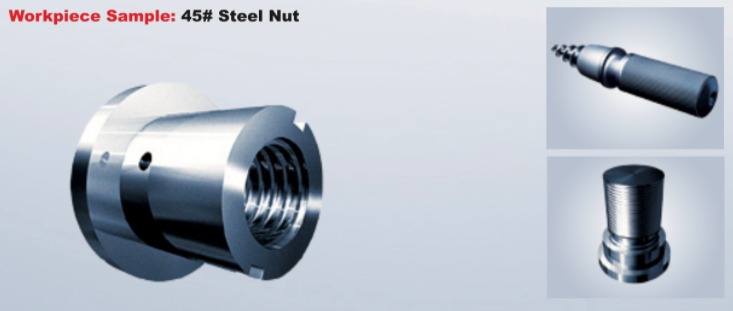

Lathes of this kind are suitable for fuming intemal, external and
cylindrical surfaces as well as other rotary surfaces. They can be
used for turning different metric, whitworth, module and diametral
threads and can also be used for performing reaming and broaching
oil grooves etc.
structure features
The bed is wider than that of the common ones, also with high
rigidity, as the surface of the bedways is hardened by medium
frequency induction, therefore, it is very durable.

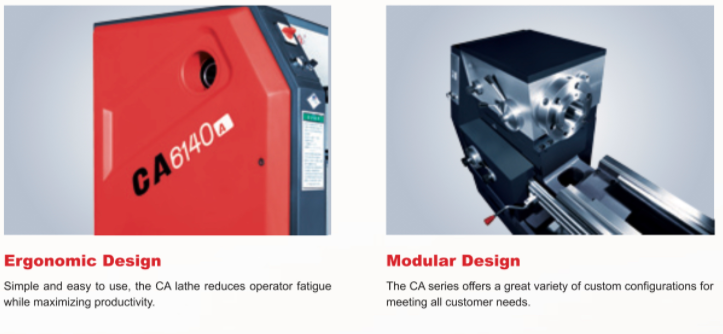

The lathe is very convenient and concentrated to operate with quick
movement structure on the slides.

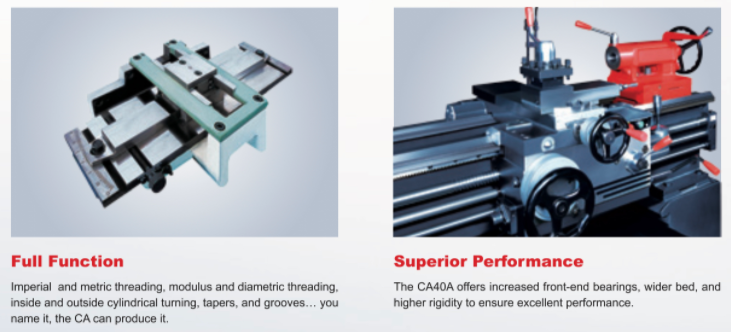

The lathe also exceeds others in structure and delivery rigidity,
as well as efficiency, and its suitable for cutting under high
speed. In addition, it also has a big spindle bore and complete
accessories.
Machine Parameters
| Item | Unit | CA6140A/ CA6240A | CA6150A/ CA6250A | CA6161A/ CA6261A | ||||
| Max. swing dia over bed | mm | 400 | 500 | 610 | ||||
| Max. swing dia over carriage | mm | 210 | 300 | 370 | ||||
| Max swing dia over gap/ Width of gap | mm | 630*210 | 720*210 | 830*210 | ||||
| Max workpiece length | mm | 750/650;1000/900;1500/1400;2000/1900 | ||||||
| Width of bed / hardness mm | mm | 400, Rc52 | 400, Rc52 | 400, Rc52 | ||||
| Section of turning tools | mm | 25x25 | 25x25 | 25x25 | ||||
| Spindle speed range | r/min | 11-1600(24) | 11-1600(24) | 11-1600(24) | ||||
| Spindle bore and nose | mm | 52 A6 | 52 A6 | 52 A6 | ||||
| Taper of spindle nose | Morse 6# | Morse 6# | Morse 6# | |||||
| Range of longitudinal feed | Standard | mm/r | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 | |||
| small feed | mm/r | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 | ||||
| enlarge feed | mm/r | 1.71-6.33 | 1.71-6.33 | 1.71-6.33 | ||||
| Rang of cross feed | Standard | mm/r | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 | |||
| small feed | mm/r | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 | ||||
| enlarge feed | mm/r | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | ||||
| Travel of cross slide / top turret travel | mm | 320/140 | 320/140 | 420/140 | ||||
| Swiveling angle of compound slide | degree | ±90 | ±90 | ±90 | ||||
| Rapid travel carriage | m/min | 4 | 4 | 4 | ||||
| Rapid travel of cross slide | m/min | 2 | 2 | 2 | ||||
| Travel of tailstock spindle | mm | 150 | 150 | 150 | ||||
| Diameter of tailstock spindle | mm | 75 | 75 | 75 | ||||
| Taper of tailstock spindle | Morse 5# | Morse 5# | Morse 5# | |||||
| Metric thread(kinds) | mm | 1-192(44) | 1-192(44) | |||||
| Whitwhorth thread(kinds) | t.p.i | 2-24(21) | 2-24(21) | 2260 | ||||
| Modular thread(kind) | mm | 0.25-48(39) | 0.25-48(39) | 2437 | ||||
| Diameter Pitch(kinds) | D.P | 1-96(37) | 1-96(37) | 2787 | ||||
| Main motor | kW | 7.5 | 7.5 | 7.5 | ||||
| New weight of machine | 750mm | kg | 1990 | |||||
| 1000mm | kg | 2070 | 2140 | 2260 | ||||
| 1500mm | kg | 2220 | 2290 | 2437 | ||||
| 2000mm | kg | 2570 | 2640 | 2787 | ||||
| Overall dimensions(L×W×H) | 750mm | mm | 2418*1000*1267 | |||||
| 1000mm | mm | 2668*1000*1267 | 2668*1037*1312 | 2668*1130*1367 | ||||
| 1500mm | mm | 3168*1000*1267 | 3168*1037*1312 | 3168*1130*1367 | ||||
| 2000mm | mm | 3668*1000*1267 | 3668*1037*1312 | 3668*1130*1367 | ||||
|
