| Categories | Conventional Lathe Machine |
|---|---|
| Place of Origin: | China |
| Brand Name: | smtcl symg |
| Model Number: | CA6140/CA6240A |
| Certification: | CE ISO |
| Packaging Details: | Package suitable for long distance sea freight |
| Supply Ability: | 30 Set/Sets per Month |
| Price: | Negotiable |
| MOQ: | 1 Set |
| Delivery Time: | 30-45 days |
| Product name: | CA6140B/A CA6240B/A Conventional manual lathe |
| Max. Length of Workpiece (mm): | 2000 |
| Width of bed (mm): | 210mm |
| Max. Turned Length (mm): | 1900 |
| Max. Swing Diameter (mm): | 400 |
| Max turning dia over carriage: | 210mm |
| Max workpiece length: | 750,1000,1500,2000 |
| Width of bed: | 400mm |
| Spindle Speed Ranges: | 11-1600 R/min (24kinds) |
| Travel of cross slider: | 320mm |
| Company Info. |
| Shanghai HD M&E Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product advantages
1. The bed is wider than ordinary lathes, and has higher rigidity.
The guide rail surface is medium-sized quenched, which is durable
and wear-resistant.
2. The operation of the machine tool is convenient and centralized,
and the slide plate is equipped with a quick-moving mechanism. It
adopts single-handle visualized operation, which is pleasant and
pleasant.
3. The structural rigidity and transmission rigidity of the machine
tool are higher than those of ordinary lathes, and the power
utilization rate is high, which is suitable for powerful high-belt
cutting. The spindle has a large aperture and a complete range of
optional accessories.
| Item | Unit | CA6140B/ A CA6240B/A | CA6150B/ A CA6250B/A | CA6161B/A CA6261B/A | ||||
| Max. swing dia over bed | mm | 400 | 500 | 610 | ||||
| Max. swing dia over carriage | mm | 210 | 300 | 370 | ||||
| Max swing dia over gap/ Width of gap | mm | 630*210 | 720*210 | 830*210 | ||||
| Max workpiece length | mm | 1000/900;1500/1400;2000/1900 | ||||||
| Width of bed / hardness mm | mm | 400, Rc52 | 400, Rc52 | 400, Rc52 | ||||
| Section of turning tools | mm | 25x25 | 25x25 | 25x25 | ||||
| Spindle speed range | r/min | 10-1400(24) | 10-1400(24) | 10-1400(24) | ||||
| Spindle bore and nose | mm | 80 A28 | 80 A28 | 80 A28 | ||||
| Taper of spindle nose | mm | φ90(1:20) | φ90(1:20) | φ90(1:20) | ||||
| Range of longitudinal feed | Standard | mm/r | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | |||
| small feed | mm/r | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | ||||
| enlarge feed | mm/r | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | ||||
| Rang of cross feed | Standard | mm/r | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | |||
| small feed | mm/r | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | ||||
| enlarge feed | mm/r | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | ||||
| Travel of cross slide / top turret travel | mm | 320/140 | 320/140 | 420/140 | ||||
| Swiveling angle of compound slide | degree | ±90 | ±90 | ±90 | ||||
| Rapid travel carriage | m/min | 4 | 4 | 4 | ||||
| Rapid travel of cross slide | m/min | 2 | 2 | 2 | ||||
| Travel of tailstock spindle | mm | 150 | 150 | 150 | ||||
| Diameter of tailstock spindle | mm | 75 | 75 | 75 | ||||
| Taper of tailstock spindle | Morse 5# | Morse 5# | Morse 5# | |||||
| Metric thread(kinds) | mm | 1-192(44) | 1-192(44) | 1-192(44) | ||||
| Whitwhorth thread(kinds) | t.p.i | 1/2-24(28) | 1/2-24(28) | 1/2-24(28) | ||||
| Modular thread(kind) | mm | 0.25-48(39) | 0.25-48(39) | 0.25-48(39) | ||||
| Diameter Pitch(kinds) | D.P | 1/2-96(38) | 1/2-96(38) | 1/2-96(38) | ||||
| Main motor | kW | 7.5 | 7.5 | 7.5 | ||||
| New weight of machine | 1000mm | kg | 2070 | 2140 | 2260 | |||
| 1500mm | kg | 2220 | 2290 | 2437 | ||||
| 2000mm | kg | 2570 | 2640 | 2787 | ||||
| Overall dimensions(L×W×H) | 1000mm | mm | 2668*1000*1267 | 2668*1037*1312 | 2668*1130*1367 | |||
| 1500mm | mm | 3168*1000*1267 | 3168*1037*1312 | 3168*1130*1367 | ||||
| 2000mm | mm | 3668*1000*1267 | 3668*1037*1312 | 3668*1130*1367 | ||||

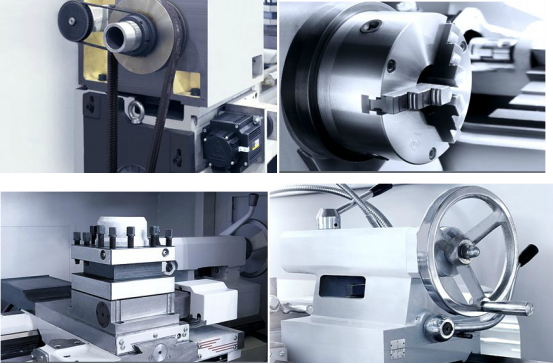

Detail photos
|
