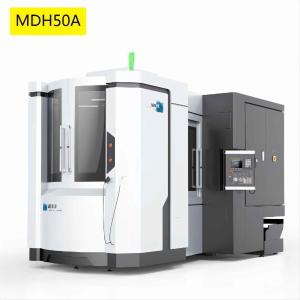

MDH50A Horizontal Machining Centers 800kg Single Table Automatic CNC Machine

MDH50A single table Horizontal Machining Center China Machine Manufacture Automatic Machining Centers

Product Presentation

MDH series of horizontal machining center is one of the horizontal machining centers developed and produced by our company. The machine is widely used for processing box parts, shell parts, disc parts and special-shaped parts in machinery manufacturing and other industries. The parts are clamped in one go. It can automatically complete milling, boring, drilling, reaming, reaming and tapping on four sides.

Product Features

(1) High precision -- Advanced hollow cooling technology is adopted for X, Y and Z coordinate screw of machine tool, which effectively controls the thermal deformation during machine tool processing and improves the machining accuracy of machine tool. In addition, the machine has the function of temperature compensation. The temperature sensor is installed in the main position of the machine tool, and the precision of the machine tool is realized by analyzing and compensating the coordinate position of the CNC system.

(2) High speed -- The machine spindle adopts electric spindle structure, the maximum speed is 12000rpm, and the internal two speed changes can meet the requirements of low speed cutting and high speed machining; X, Y, Z three-coordinate guide adopts high rigid linear rolling guide, with fast moving speed up to 60m/min. The machine adopts linkage tool changing mechanism (tool changing time: 2 seconds). The above parameters are in the domestic leading level and international advanced level.

(3) high rigidity - The main body of the machine is cast by resin sand, and the bed is an integral casting, on which the column, slide table and worktable move. The switchboard and the knife storage manipulator are fixed on the bed to ensure the overall rigidity of the machine tool. In addition, in the design process through the finite element analysis to make the machine tool structure more reasonable.

Main Technical Parameters

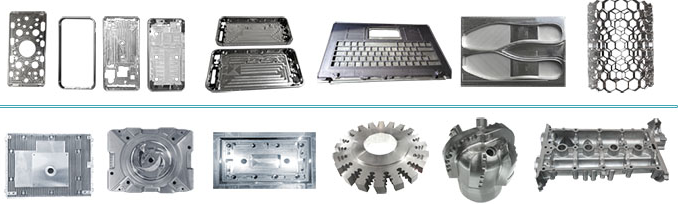

Workpiece Sample

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China.Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries.

We have a powerful technical team and could provide you with quick and efficient pre-sales consulting. We could provide customized machine tools, product's fixture, cutting tools, measuring instrument and automatic production line etc. Also we have a professional service team that can provide equipment installation, commissioning and training services overseas.

We have exported the machines to all over the world, such as America, Europe, Australia, Russia, Southeast Asia, India, Bangladesh, Pakistan，Brazil, Turkey and have been highly praised by our clients.

We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
