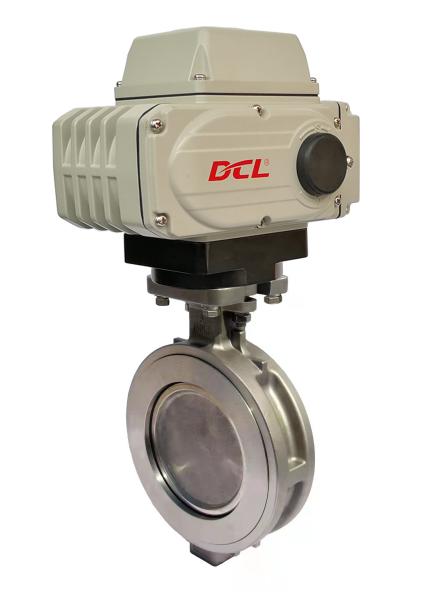

Soft Seal Double Offset Electric Butterfly Valve High Performance

DCL double eccentric butterfly valves are widely used in oil & gas, chemical, metallurgy, power, air separation, water and cooling industries. With zero leakage design, the lip seal seat can also be replaced easily. The light driven torque of valve can match a smaller electric actuator, which can make whole electric valve cost saving. Kinds of valve body materials are optional, such as WCB, stainless steel, aluminum bronze and nickel alloy. Fire-proof structure is designed and tested per API 607 standard. The seat materials are PTFE, PEEK or PPL, so valves can also be used for steam medium.

The high performance electric valve is CE marked. Explosion proof environment is also applicable with ATEX/IECEx/UL/CSA certificated electric actuator. The connection styles are wafer and flange optional.

Soft seal butterfly valve

• Body type: wafer or lug
• Body material: Ductile iron, SS304(CF8), SS316(CF8M)
• Seat material: EPDM, PTFE, NBR(Buna-N) available
• sure PN: Designed for commercial and industrial applications up to 200 psi
• Stem design: Available in square shaft for easy mounting of actuators
• Top flange: ISO 5211 direct mounting of actuators
• One piece shaft: Maintains disc position.
• Shaft pins: Enables a vibration free connection between the shaft and the disc..
• O ring seal: Provides a seal to interior stem and bushings.
• Bushings: Provide correct alignment of shaft through the body and reduces torque.
• Stem seal: Positive seal in both directions to prevent leakage.
• Bi-directional body & seat design, replaceable seat optional
• Backed seat support: Prevents stem leakage and high valve torque from poor installation.

Electric actuators

• 90° operation, middle position optional
• All 40Cr alloy spur gears, hard copper alloy worm gear, metal tapered roller bearings
• Permanent lubricated without maintenance for over 10000 full range life cycles
• Corrosion protection aluminum alloy housing with thermally bonded polyester coating
• Heavy duty motor with thermal overload protection
• Allen wrench manual override/handwheel optional
• Flat or dome indicator for valve position
• ISO5211 multi flange mounting
• CSA certified per UL standard/CE marked

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
