| Categories | Ethernet Switch |
|---|---|
| Brand Name: | E-link |
| Model Number: | LNK-2300 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | USD40/PCS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability: | 1000000PCS/Month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Ethernet Switch Standard Carton Packaging |
| Mode: | 10/100Mbps |
| Distance: | 20/40km |
| RG45 ports: | 3 |
| Input: | DC5V 2A |
| Company Info. |
| E-link China Technology Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

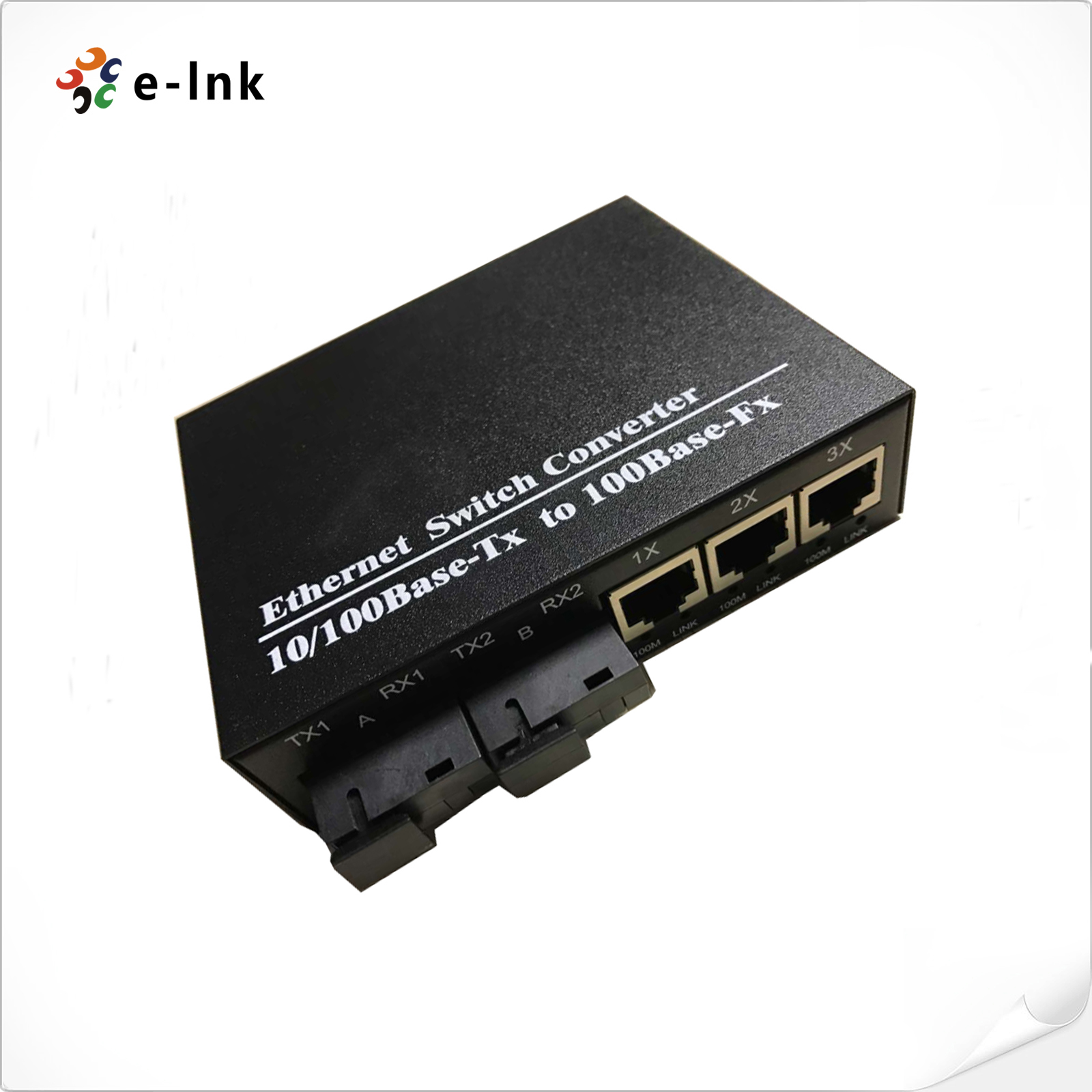

Ethernet Switch 10/100 M Media Converter 3-TX + 2-FX(SFP) Port Fiber Switch
Ethernet Switch Advantages:
Switch Ethernet signals among 10/100M UTP ports (T) and 100M Optical Fiber Interfaces (X)
Supports max 10K bytes frame.
Low power consume (4W)
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | 10/100Base-T and 100Base-FX |
| Wavelength | 1310nm/1550nm |
| Transmission distance | Multimode Fiber: 50/125,62.5/125μm Category-5 twisted pairs: 100m |
| Port | 3*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SC socket |
| MAC address table | 1K |
| Power supply | DC5V 2A (external) |
| Maintaining temperature | -40~70ºC |
LNK-2300 3 port Fast Ethernet Switch with 3 10/100M UTP ports and 2 100M SC sockets, which converting the 2 independent
100Base-TX twisted pair electrical signal with 100Base-FX optical signal. It extends the network transmission range 120Km
Ordering Information
| Item | Description |
| LNK-2300 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, Multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-2300S-20 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-S2300-20 | 10/100Base-T to 100Base-F, 2 Fx Port + 3 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
|
