ATM / APM Mini Size Fuse Holder Auto Blade Fuse With 14 AWG Cable

ATM/APM Mini Size Fuse Holder Auto Blade Fuse with 14 AWG Cable

Product Description

• Contact Resistance:100mΩ at 1A DC
• lnsulation Resistance:≥100mΩ 500Vdc
• Electrical:Rated at 40A 32Vdc
• Insulating Body: PVC
• Terminals:brass, plated with tin or nickel
• Operation temperature:-5C to +60C

Available in various wire gauges & lengths & wire colors.

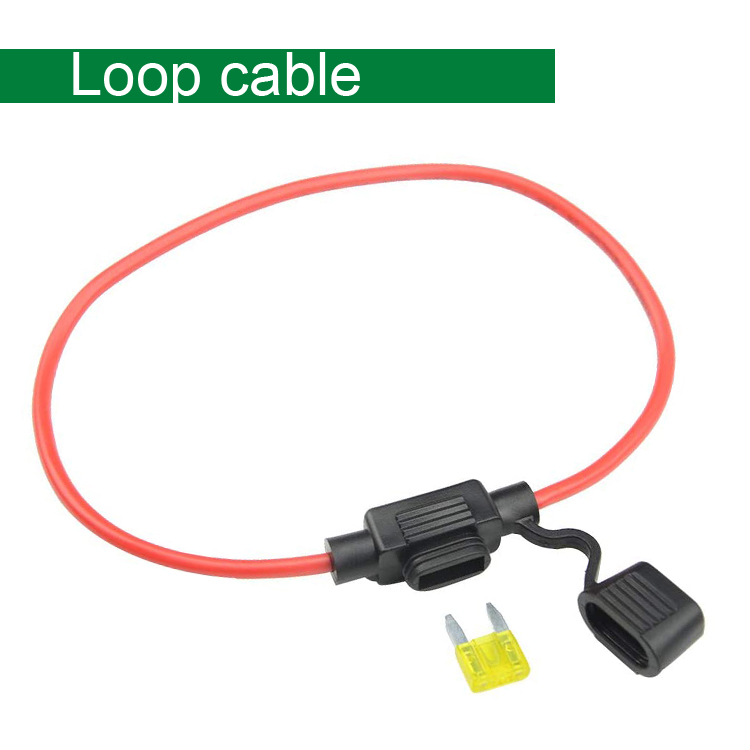

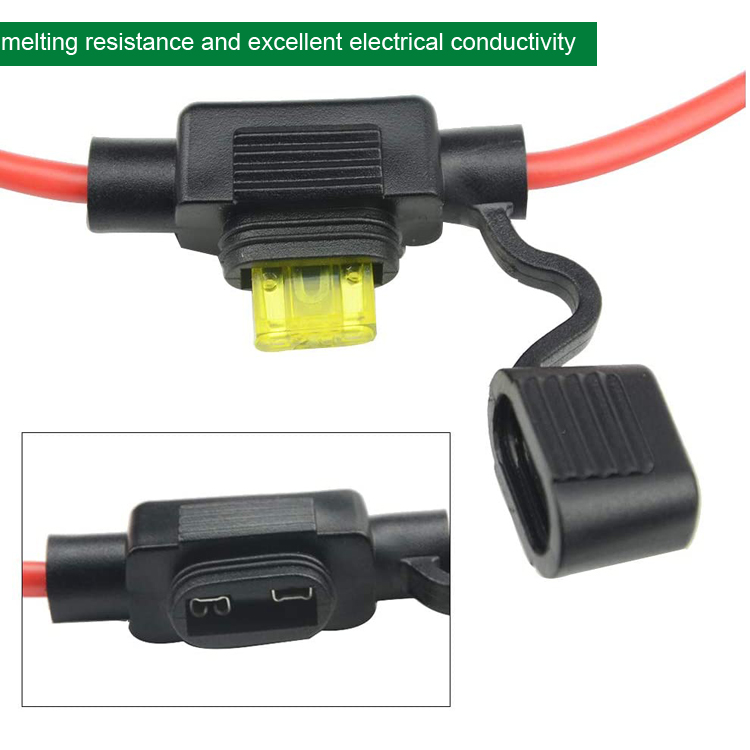

Pictures of ATM/APM Mini Size Fuse Holder Auto Blade Fuse with 14 AWG Cable

1.Easy installation:

2.Safety: Safety insulation PVC body and UL standard PVC cable ensure safe operation.

3.High reliability: finely made contacts ensures the fuses are in full contact with the terminals.

Wide range and customized services

What you need to know before ordering:

Drawing of ATM/APM Mini Size Fuse Holder Auto Blade Fuse with 14 AWG Cable

Applications

Car, Boat, Truck, SUV, Motorcycle, etc.

Standard Package:

depends on the cable spec

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea
