| Categories | Double Layer Roll Forming Machine |
|---|---|
| Brand Name: | HENGRUIYANG |
| Model Number: | OEM ODM |
| Certification: | CE , ISO9001, TUV, SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Delivery Time: | 40-60 days |
| Packaging Details: | Standard export packing with each machine tied and protected in container |
| product name: | cold roll forming machine |
| Machine Sizes: | 10500mm×1400mm×1500mm |
| Thickness of material: | 0.3mm~0.8mm |
| Rolling galvanization thickness: | 0.05mm |
| Processing speed: | 12-15m/min |
| Roller station: | 18 Steps |
| Suitable material: | PPGI/PPGL/GI/Aluminium |

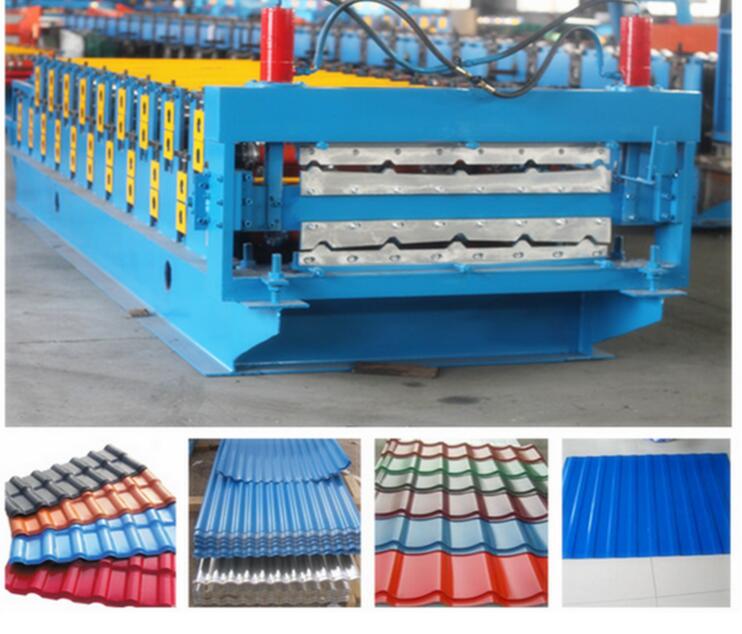

Double layer cold roll forming machine Double Roofing Metal Sheet Roll Forming Machine
1. High Precision And Speed
2. CE,ISO certification
3. Customization Accept
General Machine Parameters
| Suitable material | PPGI/PPGL/GI/Aluminium |
| Machine Sizes | 10500mm×1400mm×1500mm |
| Main motor power | 5.5KW with Cycloidal reducer |
| Hydraulic station power | 4KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.3mm~0.8mm |
| Diameter of principal axis | Φ70mm |
| Material expand width | 1200mm |
| Electric tension | 380V 3phase 50HZ~60HZ |
| Material of roller | High grade 45# forged steel plated with hard chrome plating |
| Rolling galvanization thickness | 0.05mm |
| Processing speed | 12-15m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Kind of drive | 1 inch chain link bearing model 6210 |
| Roller station | 18 Steps / 18 Steps |
Computer Control Carbinet (English/Russian Text Screen)
| PLC | “Mitsubishi”/"Delta" |
| Encoder | “REP” |
| Switch | CHNT |
| Transducer | "Sanjing" |
|
