LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor

Categories DC Planetary Gear Motor
Brand Name: SECORE
Model Number: BL1627-GB
Certification: CE ROHS
Place of Origin: Dongguan
MOQ: 100
Price: Negotiated The Price
Payment Terms: T/T, D/A
Supply Ability: 100000pcs per month
Delivery Time: 7-10 working days
Packaging Details: 100pcs per carton or as request
Nominated Voltage: 5V
Output torque: 660mN.m
free load Speed: 375rpm
Rated current: 50mA
motor dimension: 16*27mm
gearhead size: 16*41mm
product name: 16mm planetary gear motor, 5G antenna reduce motor
Usage: smart home, intelligent robot, 5G antenna station
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor

Manufacturer Customized 5G Antenna Gear Reducer 16mm Planetary Gear Reducer Motor


Model Number: SC1627-GB

Loaded torque: 130~8554g.cm
Rated current: 180~200mA
Rated speed: 280~4.5r/min
Rotation direction: Bi-directional ( CW/CCW )
Customized: available
Nominal valueno-load currentno-load speedrated Speedrated torquerated current
VoltagemARPMRPMg.cmmA
550375281130180
550250187195180
550167125291180
5559470467190
5556346700190
55541311052190
55527201576190
56023171689200
56015112534200
560107.83802200
56075.25702200
5604.53.58554200

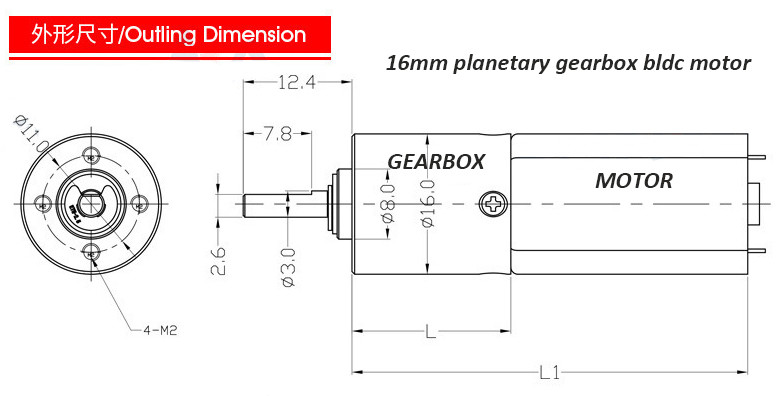

Dimension

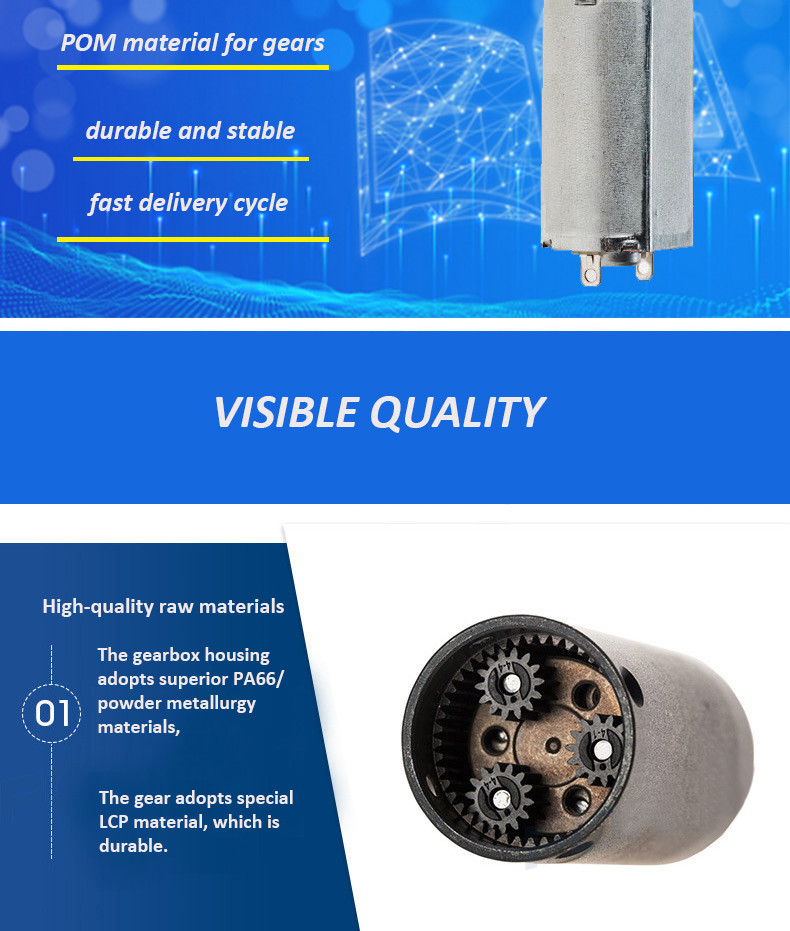

1. High-quality raw materials
The gearbox housing adopts superior PA66/powder metallurgy materials, the gear adopts special LCP material, which is durable.

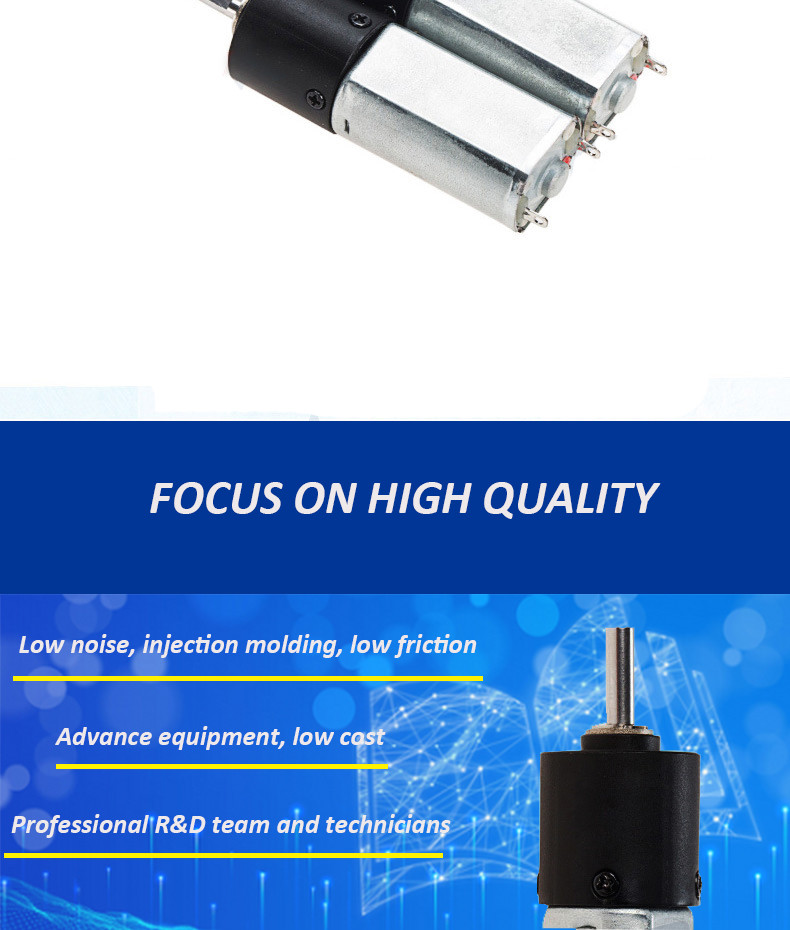

Low noise, injection molding, low friction
Advance equipment, low cost
Professional R&D team and technicians
POM material for gears
durable and stable
fast delivery cycle

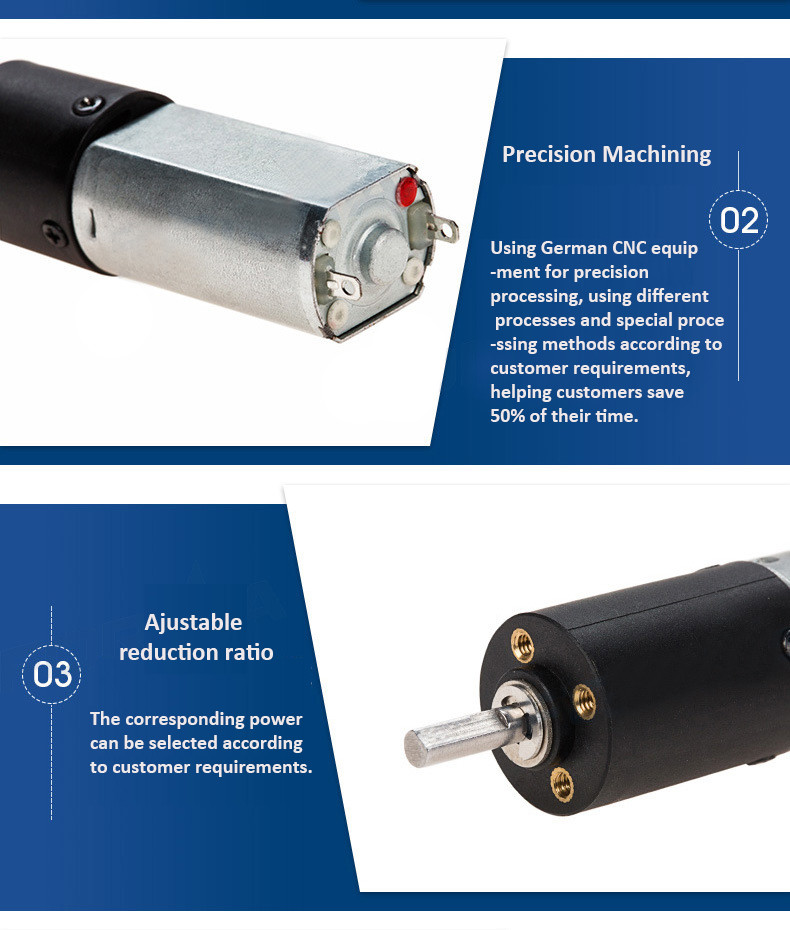

2. Precision Machining
Using German CNC equipment for precision processing, using different processes and special processing methods according to customer requirements, helping customers save 50% of their time.
It has adjustable reduction ratio, corresponding power can be selected according to customer requirements.

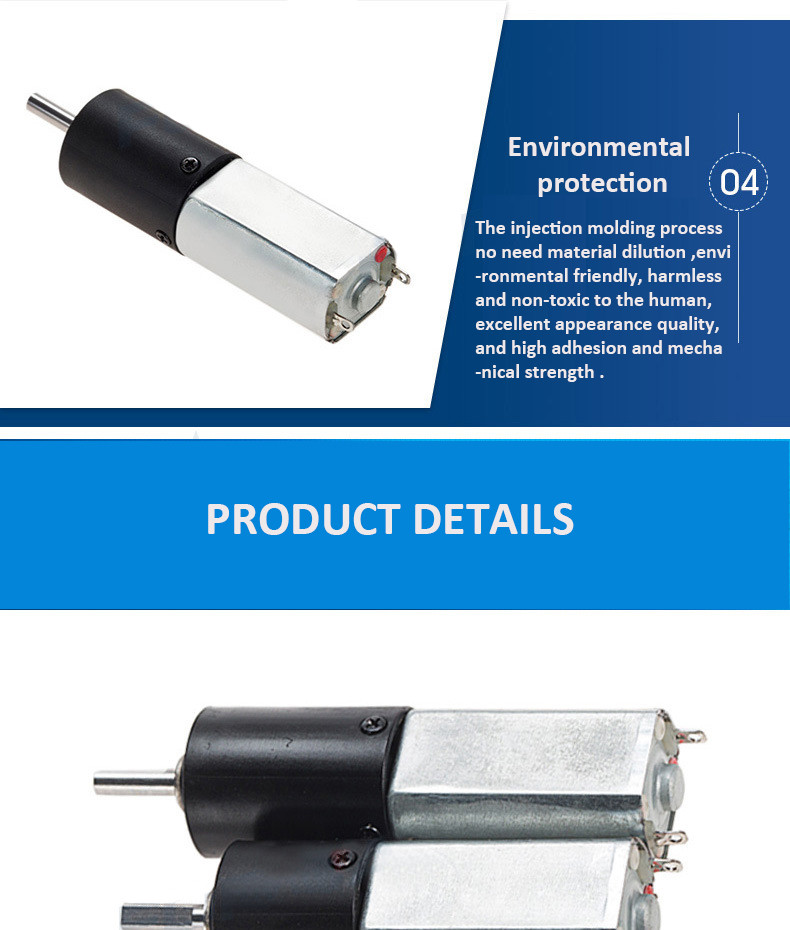

3. Safety and Environmental protection
The injection molding process no need material dilution, environmentally friendly, harmless and non-toxic to the human, excellent appearance quality, and high adhesion and mechanical strength.
