Heavy Duty 3.0 Mm Galfan Mesh Gabion Baskets 2m X 1m X 1m Wire For Retaining Walls

Categories Gabion Basket
Brand Name: SHUXIN
Model Number: SX-211
Certification: ISO,CE,SGS,BV
Place of Origin: Hebei
MOQ: 100 PCS
Price: Negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS per week
Delivery Time: 5-8 work days
Packaging Details: Bundle
Name: Wire Mesh Gabion Box
Material: Galvanized wire, PVC Wire, Galfan Wire
Weave: Double Twist, Trible Twist
Mesh Wire: From 2.4mm to 3.4mm
Selvage Wire: from 3.0mm to 3.9mm
Biding Wire: common use 2.2mm
Mesh Hole: 60*80mm, 80*100mm, customized
Gabion Size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 2*1*0.5m
Pakcage: In bundle ( after compression)
Zinc Coating: around 275g/sq.mt
Usage: Rive protection, Retaing wall, flood control
Features: easy installation, suitable for any terrain
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Heavy Duty 3.0 Mm Galfan Mesh Gabion Baskets 2m X 1m X 1m Wire For Retaining Walls

Heavy Duty 3.0 mm Galfan 2m x 1m x 1m Wire Gabion Basket for Retaining Walls


This kind of gabion basket with extraordinary flexibility and can be applied to any terrain, such as: river bank, sea bank, under bridge, underwater, land and so on. easily installation make sure you finish the project in time.

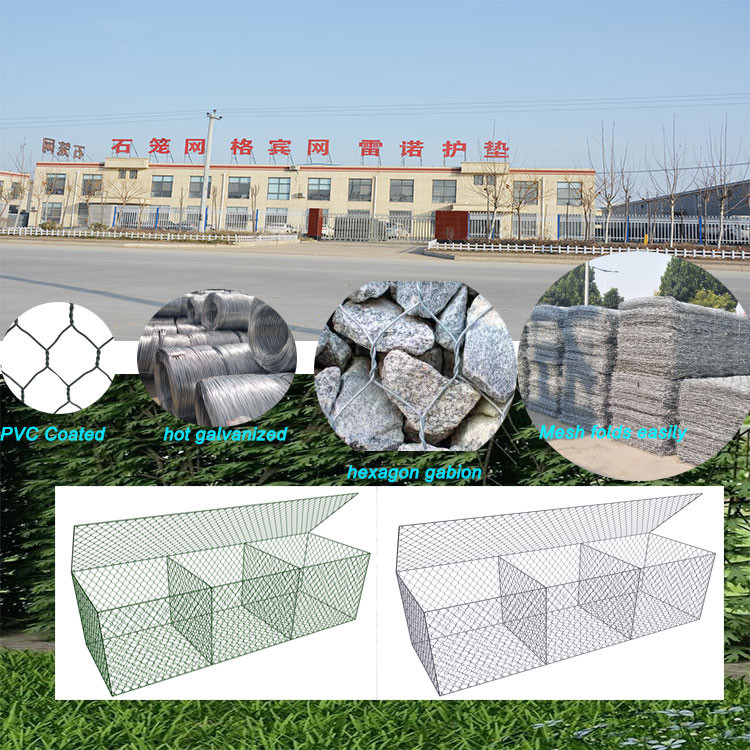

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.


The acceptable tolerances unless specified otherwise for Gabion Boxes / Mattresses shall be as under:

Tolerances
Gabion BasketsGabion Mattresses
Size (m)ToleranceSize (m)Tolerance

L = 1.5 – 2.0-3.0 –4.0

W = 1.0

H = 0.5 –1.0

± 3%

± 5%

± 5 %

L = 3.0-4.0-5.0-60

W = 2.0-3.0

H for Mesh 5x7 = 0.15-0.20-0.25

H for Mesh 6x8 = 0.17-0.23-0.30

± 3%

± 3%

± 2.5 cm


Gabion Basket Technical Data Sheet
MaterialQ195, Low Carbon Steel Wire
Weave TypeDouble Twisted
Hole ShapeHexagonal
Surface TreatmentHot Dipped GalvanizedPVC Coated
Mesh Hole80 * 100 mm60 * 80 mm80 *100 mm60 * 80 mm
Mesh Wire2.2 - 3.0 mm2.0 - 2.7 mm2.2 / 3.2 - 3.0 / 4.0 mm2.0 /3.0 - 2.7 / 3.7 mm
Selvage Wire3.0 - 3.9 mm3.0 - 3.7 mm3.0 / 4.0 - 3.9 / 4.9 mm3.0 / 4.0 - 3.7 / 4.7 mm
Lacing Wire2.2 mm2.2 mm2.2 / 3.2 mm2.2 / 3.2 mm
Gabion Basket Size1 * 1 * 1 m, 2 * 1 * 1 m, 3 * 1 * 1 m, 4 * 1 * 1 *1 m, etc

Features:

1. Easy to install, no special technology required.

2. 6 M/S strong anti - scour ability, able to withstand water, flow speeds up to 6 M/S

3. Good Ductility, no structural joints

4. High strength, withstand a wide range of deformation.
