N5105 FANLESS BOX PC Barebone Mini PC DDR4 RAM M.2 2280 SSD HDMI DP VGA DISPLAY

Categories Barebone Mini PC
Brand Name: OEM/NEWSMAY
Model Number: AC8-N5105
Certification: CE,ROHS
Place of Origin: CHINA
MOQ: 100
Price: 112
Payment Terms: T/T
Supply Ability: 20000pcs/M
Delivery Time: 35days for batch, 5 days for sample
Packaging Details: Gift BOX for unit, Carton for 10pcs,
CPU: Jasper lake Celeron N5105
RAM: 2 x DDR4-2666
SSD: M.2 2280 SATASSD
Cooling: Fanless cooling
Material: Plastic case
WLAN: WiFi 5G or WiFi 6
LAN: Gigabit LAN
SD: MICRO SD
USB3.0: 4 x USB3.0
USB2.0: 2 x USB2.0
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

N5105 FANLESS BOX PC Barebone Mini PC DDR4 RAM M.2 2280 SSD HDMI DP VGA DISPLAY

Special Features:
AC8-N5105(Barebone mini pc)
Innovative regular hexagon honeycomb idea delivery Newsmay innovation product and professional technical. Equipped with the Intel Jasper lake 10w processor ensure the full performance as desktop-worthy computer for home work or work station, can also meet most case for digital signage or multi-display.
  • Innovative honeycomb design

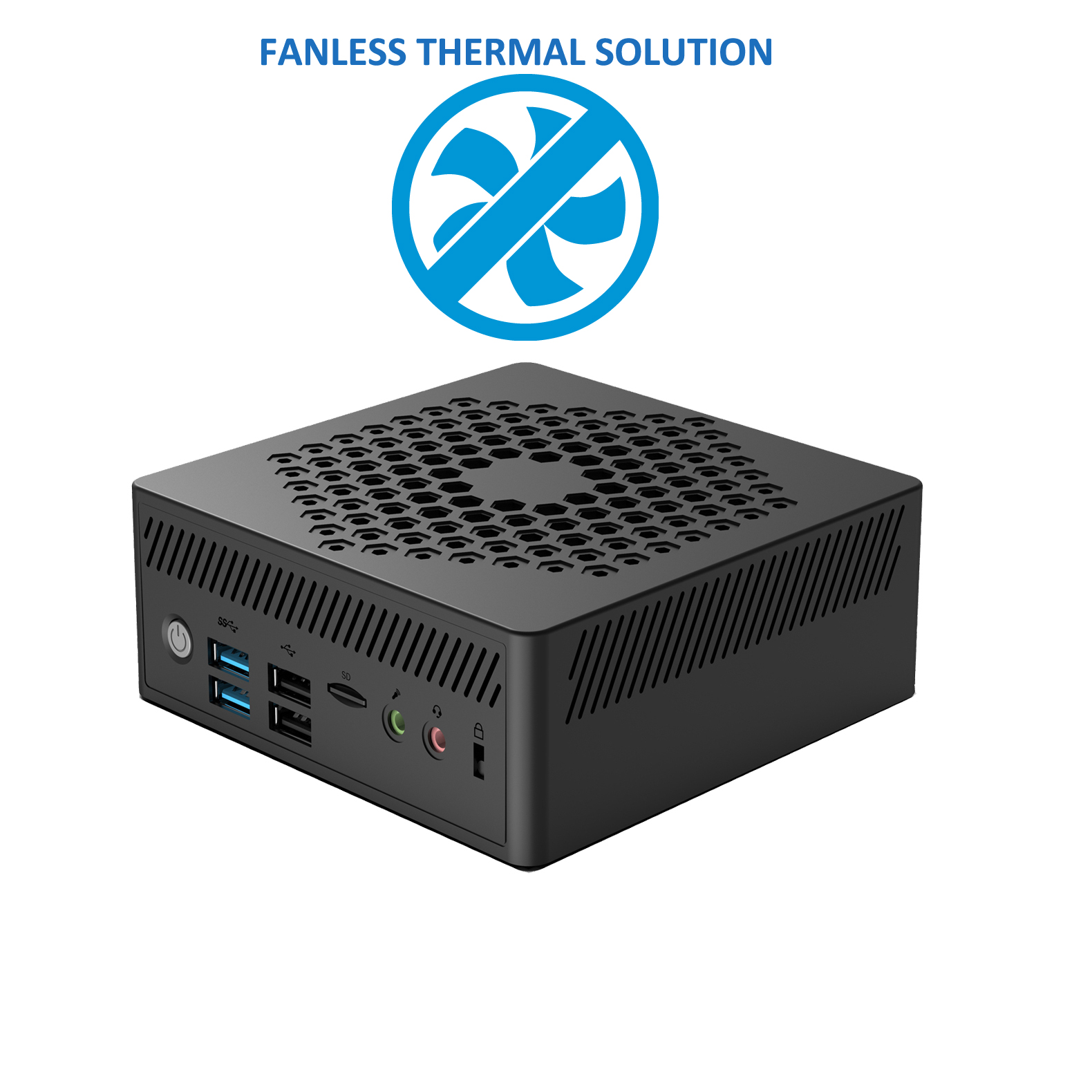

  • Fanless thermal solution mini-PC supports work in 7/24

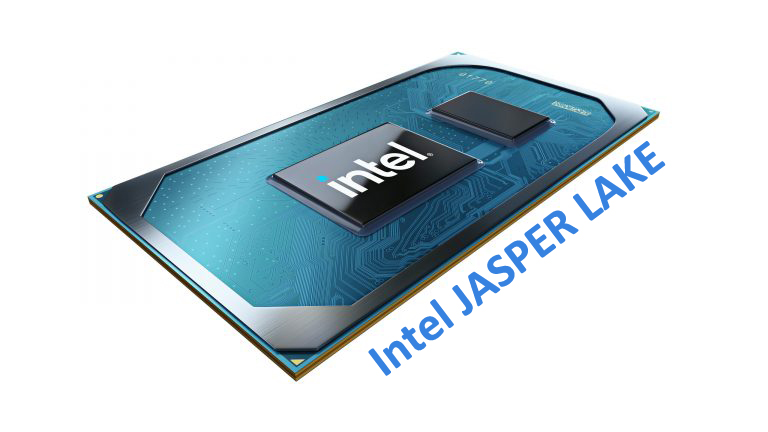

  • Intel® Jasper lake Pentium® Processor N5105, Quad Core,2.0GHz ~2.9GHz
  • Intel UHD Graphics 24 EUs, base frequency 450MHz,
  • Max 32GB SO-DIMM DDR4 x 2 memory
  • M.2 2280 SATA SSD, eMMC
  • WiFi 802.11ac, m.2 PCIe
  • Rich USB connection port USB3.0x 4
  • DP port support 4k@60Hz video playing
  • VESA mount is ready
  • Palm-size design: 12.3 x12.3 x 4.5cm
  • 3 display port: HDMI +DP +VGA

TypeDescriptions
PROCESSORIntel® Jasper lake Processor: TDP 10WIntel® Jasper lake Processor: TDP 6W

Celeron: N4505 (Dual core, 2.0GHz~2.9GHz)
Celeron: N5105 (Quad core, 2.0GHz~2.9GHz)
Intel® Pentium Silver Processor: N6005 (Quad core, 2.0GHz~3.3GHz)
Celeron: N4500 (Dual core, 1.1GHz~2.8GHz)
Celeron: N5100 (Quad core, 1.1GHz~2.8GHz)
Intel® Pentium Silver Processor: N6000 (Quad core, 1.1GHz~3.3GHz)
GPUIntel® UHD Graphics 24EUs( base frequency 450MHz)
MEMORY2 x SODIMM DDR4 2400/ 2666/2933 Slots Max 32GB
WirelessWIFI: m.2 PCIe port
LANRJ45: Gigabit LAN,support 10/100/1000Mbs
STORAGE1 x M.2 2280 SATA SSD, eMMC(64GB/128GB)
DISPLAY PORTHDMI 2.0b + DP1.4a + VGA
FRONT PANEL1 x Power Button
2 x USB3.0
2 x USB2.0
1 x Micro SD
1 x MIC IN
1 x Line out
BACK PANEL1 x RJ45 Gigabit LAN port
2 x USB3.0
1 x VGA
1 x HDMI 2.0
1 x DP
1 x DC IN
POWERInput:100- 240V AC
Output: 12V2.5A DC
ACCESSORIESAdapter
HDMI cable
VESA mount
VESASupport 70x70/100x100mm
BIOSWake On Lan, UEFI,Auto power on when power failure, PXE
SIZEChassis:123*123*45mm
CHASSISPLASTIC
OS SUPPORTWIN11/WIN10/Linux
