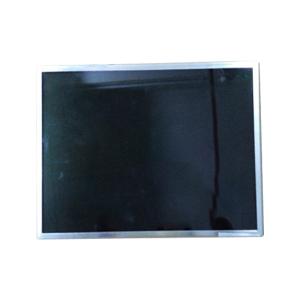

Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen 12.1 inch

Categories Industrial LCD Panel Display
Brand Name: Mitsubishi
Model Number: AA121TD11
Place of Origin: China
MOQ: 1 pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Delivery Time: 7 Days
Packaging Details: Original packaging/conventional packaging box
Model Name: AA121TD11
Screen Size: 12.1 inch
Pixel Number: 1280(RGB)×800, WXGA, 124PPI
Active Area: 261.12(W)×163.2(H) mm
physical dimension: 283(W)×185.1(H) ×10.2(D) mm
Visual size: 263.52(W)×165.60(H) mm
Brightness: 1500cd/m² (Typ.)
Contrast: 700:1 (Typ.) (TM)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen 12.1 inch

Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen


Product details :

Mitsubishi LCD SCREEN AA121TD11
manufacturerMitsubishi
Model NameAA121TD11
screen size12.1 inch
Screen typea-Si TFT-LCD , LCM
Resolution1280(RGB)×800, WXGA, 124PPI
Pixel configurationRGB Vertical Stripe
Display size261.12(W)×163.2(H) mm
physical dimension283(W)×185.1(H) ×10.2(D) mm
Visual size263.52(W)×165.60(H) mm
surface treatmentAntiglare, Hard coating (3H)
Brightness1500cd/m² (Typ.)
Contrast700:1 (Typ.) (TM)
Best angle6 o'clock
Optical modeTN, Normally White, Transmissive
Viewing angle80/80/80/60 (Typ.)(CR≥10)
Responding time4/12 (Typ.)(Tr/Td)
Number of color262K/16.7M 40% NTSC
Backlight type4 strings WLED , 100K hours , Without Driver
Panel weight580g (Typ.)
Apply toIndustrial Outdoor / High Brightness
Refresh rate60Hz
Touch functionNo touch
signal systemLVDS (1 ch, 6/8-bit) , 20 pins Connector
Supply voltage3.3V (Typ.)
Maximum ratingOperating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen

Why Choose Us :


According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !


Shipping and Package :


Shipping

(Please note:business/working days:NOT including the weekend nor the holidays.)

1.We will ship the item via Registered Airmail in 3 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.

To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.


FAQ:

Q: If I place order now,when will you ship the goods of AA121TD11?

A: The order will be shipped within 2-3 working days after received your payment.


Q: How long is the warranty ?

A: We offer 90days warranty .


Q: Can You declare my order of AA121TD11 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .


Q: Can I pay my order of AA121TD11 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Cheap Mitsubishi AA121TD11 Industrial LCD Panel Display LCD Screen 12.1 inch for sale
