1800 degree Mosi2 Heater For Sintering Powdered Metal Parts , And Melting

Categories MoSi2 Heating Elements
Brand Name: ZG
Model Number: MS
Certification: CE
Place of Origin: CN
MOQ: 1 piece
Price: USD10/piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Delivery Time: 3 working days
Packaging Details: Strong wooden box for Global shipping
MAX TEMPERATURE:: 1700°C / 1800°C
DIAMETER:: 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm
COOLING ZONE LENGTH:: 80 - 1500mm
SHAPE:: Special Shape
HEATING ZONE LENGTH:: 80 - 1500mm
MOLYBDENUM PURITY:: 99.9% High Purity
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1800 degree Mosi2 Heater For Sintering Powdered Metal Parts , And Melting

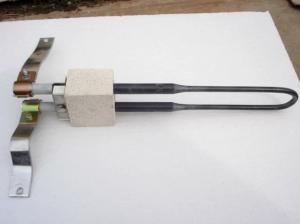

MoSi2 heating elements for sintering powdered metal parts, and melting


MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.



Molybdenum Disilicide Heating Elements Parameters


* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃

Physical property of Silicon Molybdenum Rod :

Physical properties
Volume DensityBend StrengthPorosity RateWater AbsorptionHot Extensiblity
5.5-5.6g/cm³15-25kg/ cm27.4%1.2%4%

Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.


Max temperatures of MoSi2 Heating Element in Different Atmospheres

AtmosphereMax. element temperature
MS1700MS1800
Air1700℃1800℃
Nitrogen1600℃1700℃
Argon, Helium1600℃1700℃
Hydrogen1100-1450℃1100-1450℃
N2/H2 95/5%1250-1600℃1250-1600℃
Applications

Heat treatment

Forging

Sintering

Glass melting

Refining

Radiant tubes

Laboratory furnaces

Testing equipment

High temperature sintering production furnaces



The Advantages of Molybdenum Disilicide Heating Elements:
1· Economical, clear and safe.
2· Superior oxidation resistance, low corrosion.
3· Little deformation and better radiance.
4· Long service life, easy installation and maintenance.
5· Efficiently apply a wide range of products and atmospheres
6. Our fast and professional transportation:

Packing and shipping :

Packaging Details: Packed with sponge and box case, and then put it into wooden case.

Lead Time: Shipped in 10 days after payment Transportation: Most by air.
