Master Touch 15 Inch Tempered Cover Lense Interactive Touch Screen Panel
1. Product Description
Capacitive touch screen is a world popular trend for its highest positioning and fast response, the response time is shorter than resistive touch screen, antistatic ability, save space, display is the user interface and interface mode diversity, low power, water-proof, fog-proof, design more beautiful, specially on industrial equipment and POS machine (ATM, self-service terminals, smart home and medical equipment), the touch panel is made of glass and glass, also, it has good transparent and has multi-points touching.
2. Basic Features
| Item | Feature | Remarks |
| Controller | ILI2510 | - |
| Channel | TX: 36 RX: 48 | - |
| Power | 5V | USB: 4.7V ~ 6.0V, Typical:5V |
| Communication | USB | USB: 2.0 Full Speed |
| Number of Touch point | 10 | - |
| O.S. | Windows/ Android/ Linux | plug and play |
| Power Consumption | 1.Active Mode: Max.120mA @ USB Input 5V 2.Idle Mode: 90mA @ USB Input 5V 3.Sleep Mode: less than 1mA @ USB Input 5V | |
| Item | Specification | Unit |
| Viewing Area | 305(L)×229(W) | mm |
| Cover Lense O.D. | 353.1(L)×277.1(W) |
4. Optical Characteristics
| Item | Specification | |
| Transparency | Viewing Area | ≧85% |
| Item | Specification | Unit | ||
| Stacked structure | Cover | 2.0 | mm | |
| LOCA | 0.2 | mm | ||
| ITO | 0.7 | mm | ||
| Sensor Glass | ||||
| ITO | ||||
| Sensor Dimension | OD Size | X | 320.3 | mm |
| Y | 246.32 | mm | ||

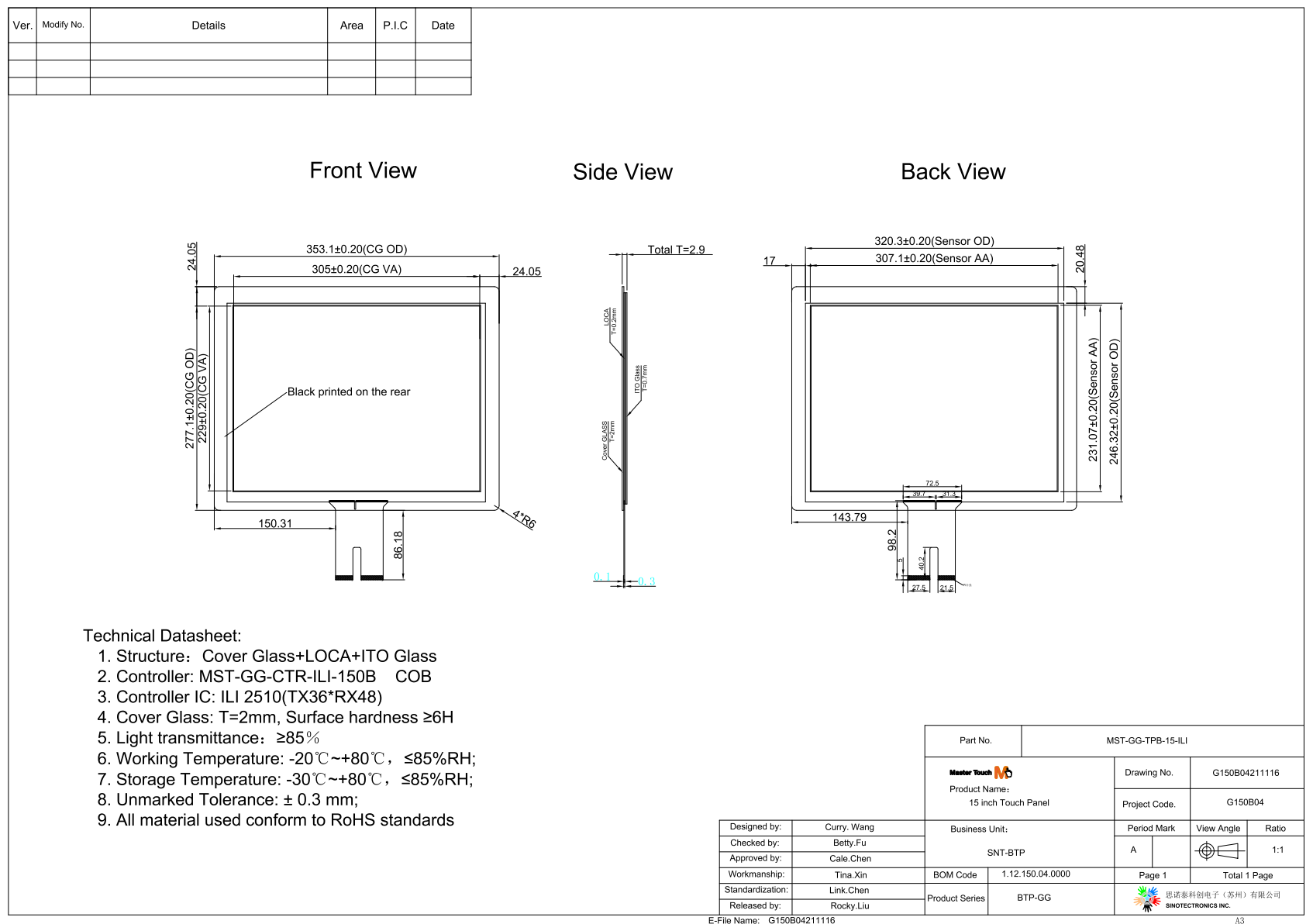

6. Drawing
7. Details
8. Related Test
| Item | Specification | Result | |
| Cover lens | Ball Drop | 200g ± 2g 35cm | One drop test on each of the 5 selected points, No damage |
| Hardness | Pencil: 6H Pressure: 1N/45° | Hardness ≧ 6H | |
| Warpage | By Gauge | Warpage 0.1% ≦ Length * | |
| FPC/COF | Bending | Bending range0-180° 30times Electrical Function ok | - |
9. Reliablility Test
| Reliability test report | ||||
| Objects | □Raw material □New production process □Abnormal item □New product □Finished product □Sample □Experiment procedure and method □Others □Production line program | |||
| Purpose: to verify the applicability of the experimental product when being stored,transported and used under the extreme environmental conditions. | ||||
Experiment requirements:
| ||||
| No. | Items | Test condition | Criterion | |
| 1 | High temperature and humidity test | 1. Temperature: 60℃ 2. Humidity: 90%RH 3. Time: finished product 120H | Appearance test refer tostandard OK Function detection OK | |
| 2 | Temperature Switching impact test | 1.High temperature 2.Low temperature 3. 30 times in cycle | Appearance test refer tostandard OK Function detection OK | |
| 3 | Salt spray test | 1.Concentration: 5% NaCl solution 2.Temperature: 35℃ 3.Time: finished product 48H | Appearance test refer tostandard OK Function detection OK | |
| 4 | High temperature storage test | 1.Temperature: 80℃ 2.Time: 120H | Appearance test refer tostandard OK Function detection OK | |
| 5 | Low temperature storage test | 1.Temperature: -30℃ 2.Time: 120H | Appearance test refer tostandard OK Function detection OK | |
| 6 | Red ink test | 1. Room temperature 2. Time: 8H | 1. No ink infiltration 2. All functions are good | |
| 7 | Hand sweat test | 1. Sweat PH=4.7 2. Time: 48H | Appearance test refer tostandard OK Function detection OK | |
| 8 | Static electricity test | 1. Air discharge: 8KV 2. Contact discharge: 6KV 3.Times: 10 times for each point | Appearance test refer tostandard OK Function detection OK | |
