| Categories | 52 Series |
|---|---|
| Brand Name: | DGKYD |
| Model Number: | DGKYD52281111GWA1D12B4078 |
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| Place of Origin: | DongGuan of China |
| MOQ: | Negotiation |
| Price: | Please contact us to get the latest price. |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 100K pcs/day |
| Delivery Time: | 20 days |
| Packaging Details: | 1080 Tray in Carton |
| Part Number: | RJ45 Ethernet Connector |
| HOUSING: | PBT |
| Connector Type : | Modular Jack |
| LED Color: | No |
| Filter: | Without Filter |
| Contact Mating Area Plating Material : | Gold 6u/15u/30u/50u |
| Contact Plating: | 6u Glod Plating |
| Contact Base Material : | Phosphor Bronze |
| Storage temperature: | - 40 ℃ ~ 85 ℃ |
| brand: | DGKYD |
| Latch: | TAB-Up |
| Company Info. |
| Keyouda Electronic Technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
DGKYD52281111GWA1D12B4078 single port network interface 10p10c no light strip shielding 180 degree in-line
Parameters
| Part Number | DGKYD52281111GWA1D12B4078 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Up |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | No | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 10 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | WithWithout Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |

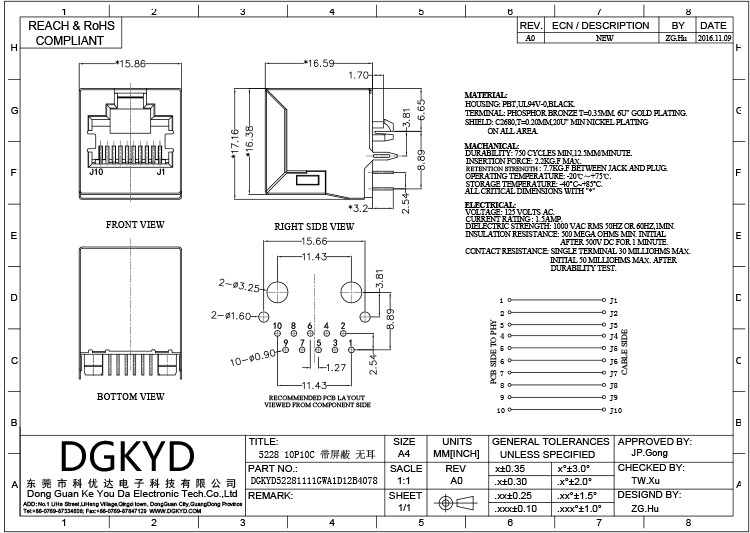

Drawings
FAQ:
Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality.
free samples is also acceptable.
Q2: How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welcome.
Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific
delivery time depends on the items and the quantity of your order.
Please contact us for details.
Q4: Can make customized products ?
A: Yes, we can develop new mold at you need if you can provide us
with the samples or drawings and specification.
|
