| Categories | PU Sandwich Panel Production Line |
|---|---|
| Brand Name: | Sussman |
| Model Number: | SM-PUC |
| Certification: | CE |
| Place of Origin: | Wuxi Jiangsu China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 sets per months |
| Delivery Time: | 80-100 days after deposit |
| Packaging Details: | Standard packing |
| Linear Speed of production: | 0-6m/min |
| PU thickness: | 50-200mm |
| Core Density: | ≥18Kg/m3 |
| Wall panel: | 950mm 1150mm 1200mm |
| Roof panel width: | 950mm 980mm |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
0.4-0.8 Mm Thickness 50mm-250mm Core Thickness Roof & Wall Panel Sandwich Panel Production Line
EPS Sandwich Panel Production Line Technical Parameter
| Sandwich panel standards | |
| Length | Min cut length: 3 m Max stacker length: 15 m |
| raw material standards | |
| Coil thickness | 0.4~0.6mm (the coil surface should be flat, no arch and the others surface trouble.) |
| Material coil yield strength | 235MPa |
| Material coil max width | see detailed profile drawings. |
| Material coil max weight | 5 T |
| Material coil inner diameter | Φ508,Φ610 mm |
| EPS core material | |
| density | ≥18Kg/m3 |
| straight rate | ≤1mm/m |
| arch degree | ≤3mm/m |
| panel surface | shoule be flat no flat degree is ≤1.5mm/m, |
| sandwich panel length | longer than 5 meters |
| wool material | |
| fiber length | ≥100mm |
| cubage density | ≥100Kg/m3 |
| sandwich panel length | ≥3 meters |
2. Processing working flow
Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
NO. | Name | Components | Quantity | Remark |
| Roof panel roll forming machine | Steel uncoiler | 2 Sets | Upper/Lower each 1 set |
2 | Ribs forming set | 2 Sets | Upper/Lower each 1 set | |
3 | Electrical cutting sheet set | 2 Sets | ||
4 | Core material conveying device | 1 Set | ||
| Main sandwich panel part | Glue pump | 1 Set | 4 glue pumps, 2 motors, 2 inverters |
6 | Pneumatic glue device | 3 Sets | Upper/Middle/Lower each 1 set | |
7 | Sandwich main part and transmission | 1 Set | ||
8 | Infrared heating device | 6 Sets | ||
Electrical edge joint forming set | 1 Set | |||
9 | PLC control | 1 Set | ||
10 | Cutting set | 1 Set | Automatic cutting | |
Profiles of PU Ceiling
EPS Sandwich panel application

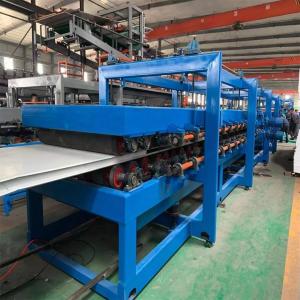

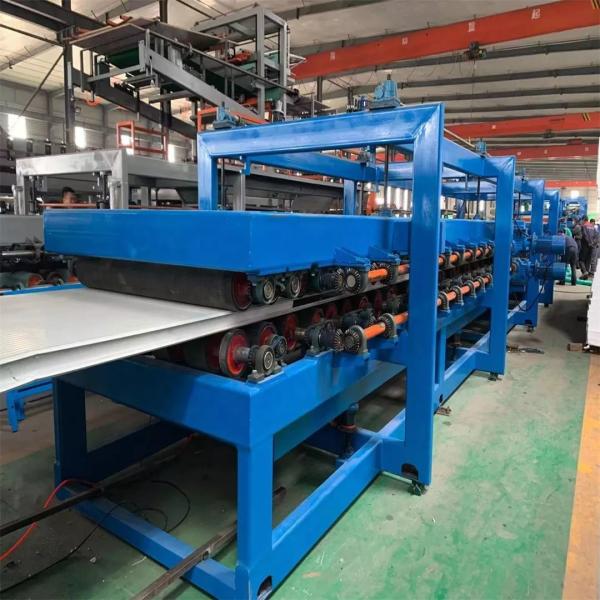

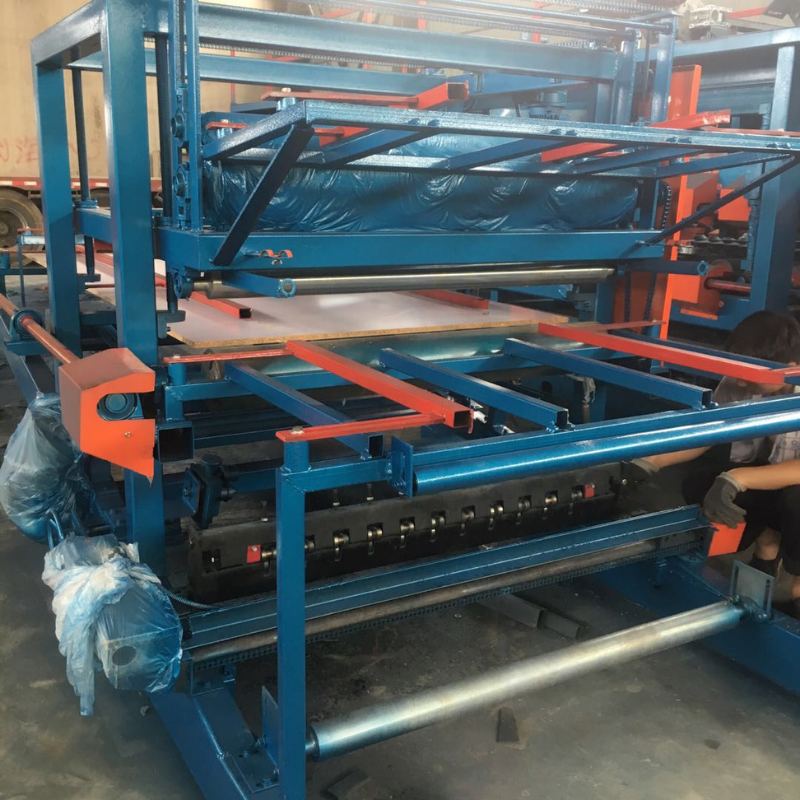

Machine Photo
|
