| Categories | PU Sandwich Panel Production Line |
|---|---|
| Brand Name: | Sussman |
| Model Number: | SM-PUC |
| Certification: | CE |
| Place of Origin: | Wuxi Jiangsu China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 sets per months |
| Delivery Time: | 80-100 days after deposit |
| Packaging Details: | Standard packing |
| Linear Speed of production: | 0-6m/min |
| PU thickness: | 50-200mm |
| Core Density: | ≥18Kg/m3 |
| Wall panel: | 950mm 1150mm 1200mm |
| Roof panel width: | 950mm 980mm |
| core thickness: | 50-200mm |
| Dimension(L*W*H): | 45mx4mx5m |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
980mm Width 6meters / Min EPS Sandwich Roof Wall Panel Production Line
EPS Sandwich Panel Production Line Technical Parameter
Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
Thickness of coil sheet | 0.3-0.8mm |
Coil width | 1000mm |
Cover width | 980mm |
Material of main frame | 350H steel |
Roller | Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
Power of main motor | 32kw with Cycloidal reducer |
Forming speed | About 0-6m/min |
Hydraulic cutting | Controlled by PLC |
PLC | DELTA(TAIWAN |
2. Processing working flow
Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
NO. | Name | Components | Quantity | Remark |
| Roof panel roll forming machine | Steel uncoiler | 2 Sets | Upper/Lower each 1 set |
2 | Ribs forming set | 2 Sets | Upper/Lower each 1 set | |
3 | Electrical cutting sheet set | 2 Sets | ||
4 | Core material conveying device | 1 Set | ||
| Main sandwich panel part | Glue pump | 1 Set | 4 glue pumps, 2 motors, 2 inverters |
6 | Pneumatic glue device | 3 Sets | Upper/Middle/Lower each 1 set | |
7 | Sandwich main part and transmission | 1 Set | ||
8 | Infrared heating device | 6 Sets | ||
Electrical edge joint forming set | 1 Set | |||
9 | PLC control | 1 Set | ||
10 | Saw Cutting set | 1 Set | Automatic cutting | |

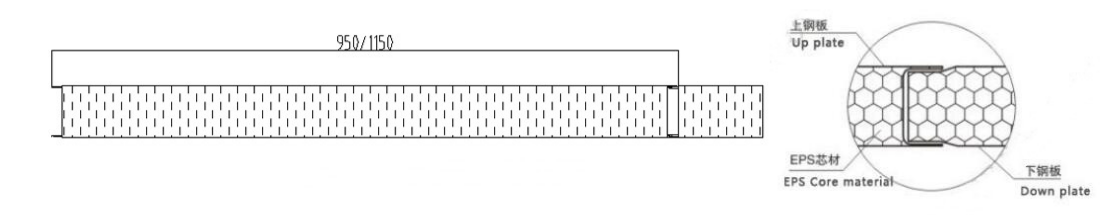

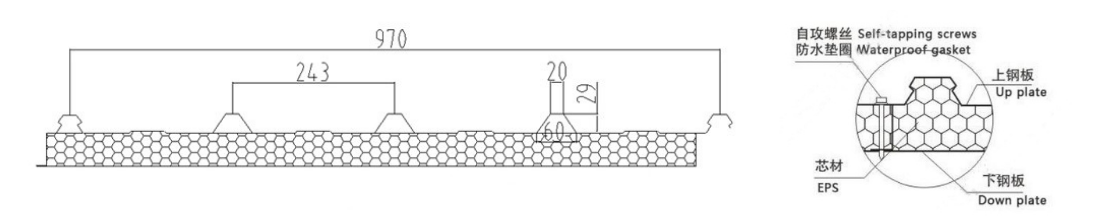

Profiles of PU Ceiling

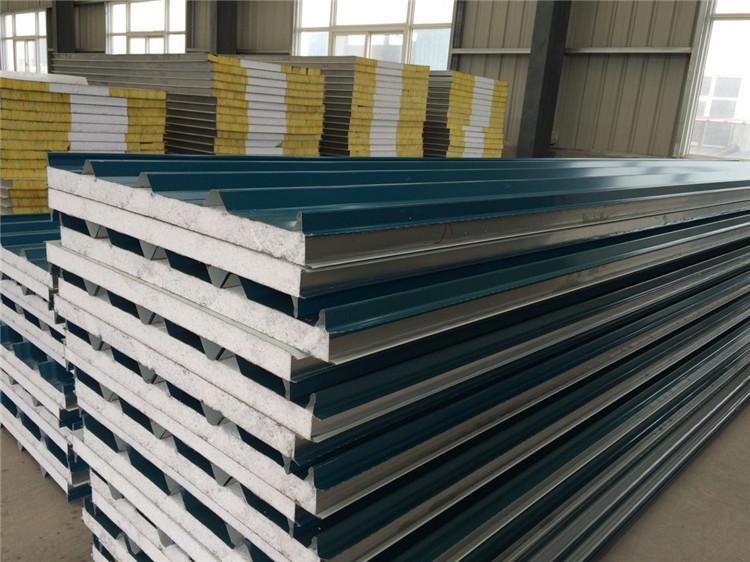

EPS Sandwich panel application

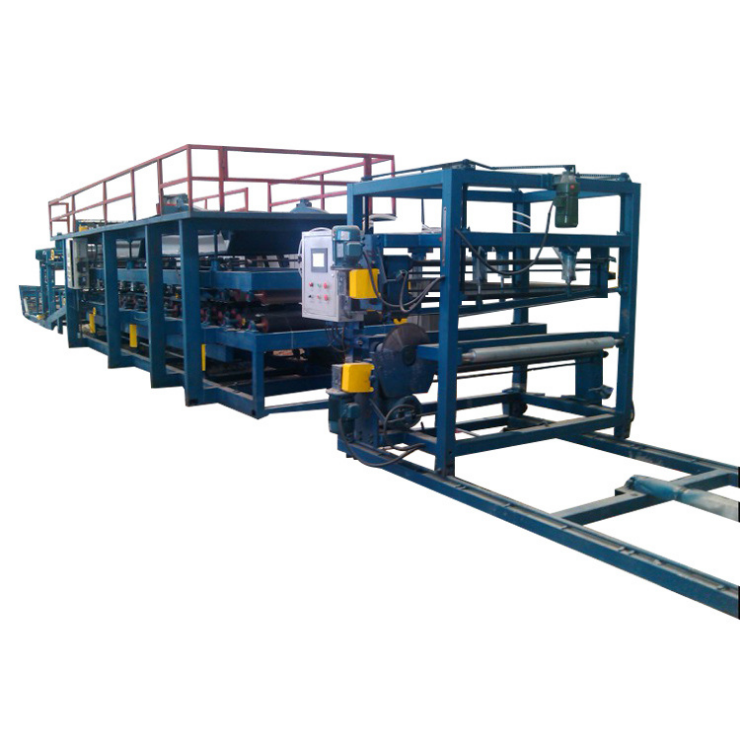

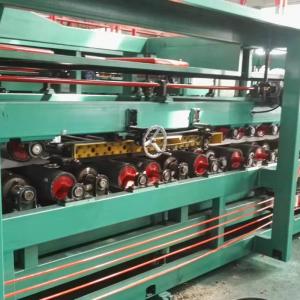

Machine Photo
|
