Custom Plastic Recycling Washing Line For Pp Pe Abs / Ps Rigid Form Bottle Recycled Waste Bottle

Custom Plastic Recycling Washing Line For Pp Pe Abs / Ps Rigid Form Bottle Recycled Waste Bottle

Custom Plastic Recycling Washing Line For Pp Pe Abs / Ps Rigid Form Bottle Recycled Waste Bottle
Custom Plastic Recycling Washing Line For Pp Pe Abs / Ps Rigid Form Bottle Recycled Waste Bottle
Categories Plastic Recycling Line
Brand Name: HUIHAOCUSTOM
Model Number: HEB-300/2000
Certification: ISO9001-2015
Place of Origin: China
MOQ: 1 set
Price: 120000 usd
Payment Terms: L/C, T/T
Supply Ability: 100 sets per 28 days
Delivery Time: 8 work days
Packaging Details: Stretch film and wooden case as international sea shipment standards for waste water treatment system
name: Recycled Waste Bottle Plastic Washing Machine
Production Capacity (kg/h): 300-2000
Plastic Type: PP,PE
Voltage: 220v/380v
Applicable Industries: Plastic Recycling Machine
key words: Recycling Washer Line
color: Grey, green, ornage
services: ODM, OEM
Contact Now
Company Info.
Huihao Hardware Mesh Product Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Custom Plastic Recycling Washing Line For Pp Pe Abs / Ps Rigid Form Bottle Recycled Waste Bottle

Huihaocustom Recycled Waste Bottle Plastic Washing Machine

PE/PP/ABS/PS (RIGID FORM )Bottle ,Bucket,Hollow Container Recycling Machine

It used to recycling the waste HDPE/LDPE/PP Bottles and buckets, hollow container and so on. The production line including the conveyor belt, metal detector ,plastic wet crusher, floating washing tank, high speed friction washer, centrifugal dewatering machine; drying system and label separating machine, material collecting packing system.
After crushing and washing and drying, we can use it to pelletizing line. We also can customized it for you according to your requirement.

Product Paramenters OF Recycled Waste Bottle Plastic Washing Machine

We have 300-1000 kg/h HEB Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model
Capacity
Installed Power
Water Supply
Manpower
Area Required
HEB-300
300 kg/hr
100KW
4-5 m3/hr
2-3 Person
20*4.5*5
HEB-500
500 kg/hr
115 KW
5-6 m3/hr
4-6 Person
20*4.5*5
HEB-1000
1000 kg/hr
125 KW
7-8 m3/hr
8-10 Person
23*5*5
HEB-1500
1500 kg/hr
180 KW
8-10 m3/hr
12-14 Person
23*5*5
HEB-2000
2000 kg/hr
225 KW
10-15 m3/hr
16-18 Person
28*5*5

EQUIPMENT LIST OF Recycled Waste Bottle Plastic Washing Machine

Conveyor Belt with Metal Detector

Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm Precision for non-Ferrous>3.2mm

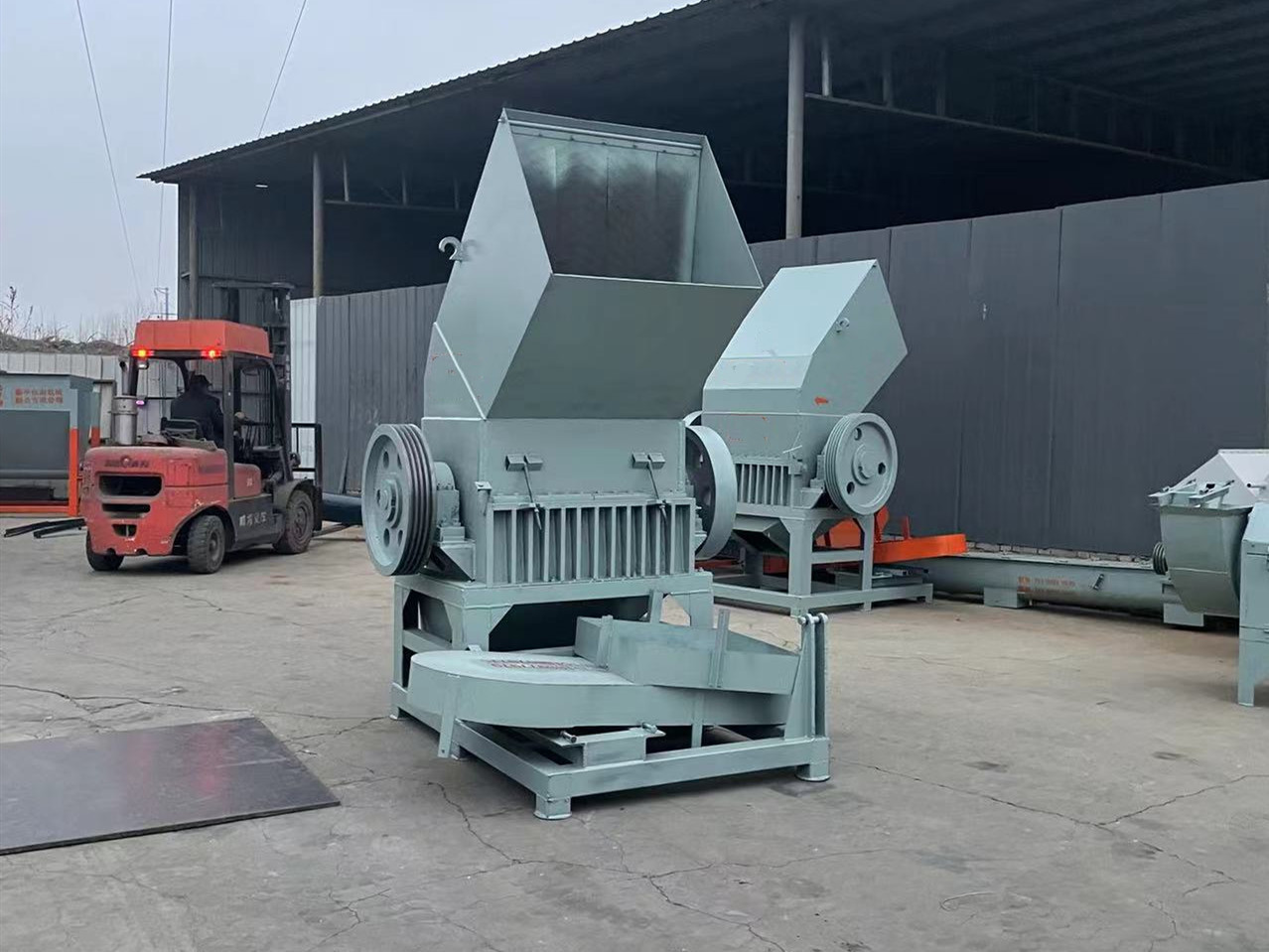

Plastic Crusher Machine

Function: Crushing the material into small flakes.
Blade made by D2 or SKD-11.
With water inlet do wet crushing.
This series blades are more wider, it will save the blades cost; Use the big roller bearing ensure its long time.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Machine up chamber is higher and covered by belt no flakes pop out.

Floating Washing Tank

Function: Floating Washing separate the sand, soil and other dirty.
The roller is specially made can have more washing for lakes but less water take out.
Bottom with Positive and negative screw to push the dirty into middle.

High Speed Dewater Machine

Function: Friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water.
With the roller bearing and fixed outside of rotor for long use life.
With water spray system to clean the mesh.

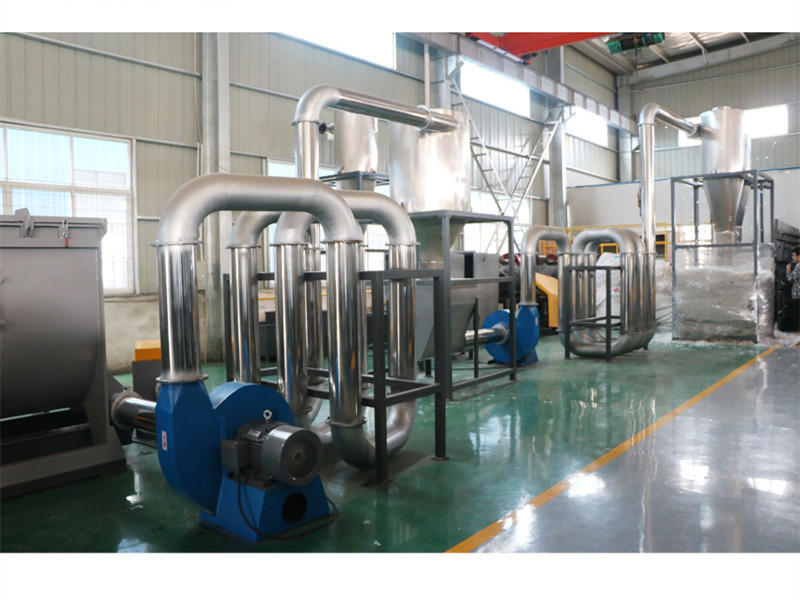

Hot Air Drying System

Function: Drying the material
Heating by electricity box
