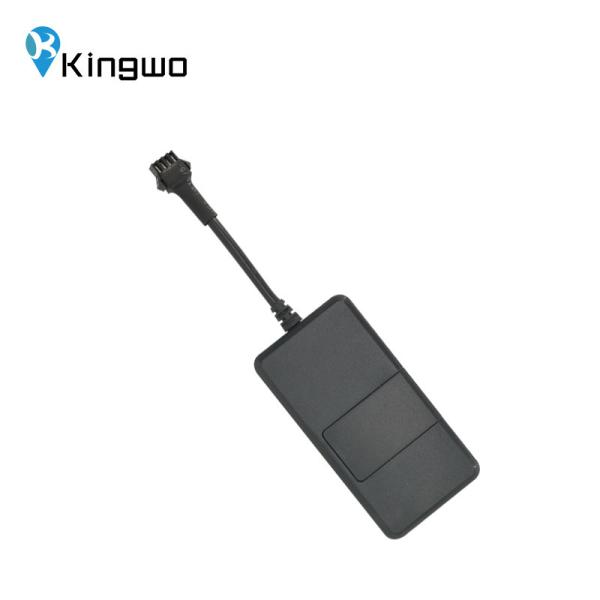

4G LTE - 4 mini Fleet management Wired motorcycle escooter car vehicle gps tracker

LT01 - C is a 4G LTE - 4 mini fleet management Wired motorcycle escooter car vehicle gps tracker, dual ip and mulitple protocols avaliable in almost poplar third - party platforms.Also wide voltage can be used for all kinds of vehicles which inclyding 9 - 100 volts.

Network frequency :

FDD LTE:B1/B3/B4/B5/B7/B8/B28

WCDMA:B1/B2/B5/B8

GSM:B2/B3/B5/B8

Parameters:

Alarm function

1. Low Voltage Alarm

When the battery voltage on the vehicle is too low (0-11V or 19-22V), device will report a low voltage alarm to the backend

2. Speeding, low speed alarm

When the vehicle speed is higher than the preset alarm value, the device will notify the backend. Similarly, when the vehicle speed is lower than preset alarm value, a low speed alarm will be uploaded to the backend, this value is configurable.

3. Vibration alarm

The device supports vibration alarm, 10 minutes after the ignition off (Arm range 1-20 minutes), the device generates vibration (Delay range 1-10 mins) without ACC connected, the device will upload vibration alarm.

4. Towing alarm

An alarm will be generated when the device is set to a displacement of more than 100 meters (message mode prompt), and the alarm information will be reported when the displacement radius exceeds 100 meters when the device is turned off. (Note: displacement range 100~2000m)

The device will send SMS if the vehicle is moved in ignition off status, if the radius is more than 100 meters, will upload towing alarm (Towing range:100-2000m)

5. GPS error alarm

When the device detects that the GPS/BD module is working abnormally, it reports the GPS receiver failure alarm to the backend

Parameter setting by SMS

The device is with unique ID number, the factory can preset t IP, port and APN for customers, generally there is no need for customers to do parameter setting; However in case any configuration needs to be done, please follow below instructions and make sure the SIMs has SMS functions available

Shenzhen Kingwo IoT Ltd (Hereby referred as “Kingwo”) is a high tech company focus on IoT technology, we develop and sell GPS tracking products based on 4G ,3G and 2G network technology, our products include disposable and rechargeable asset GPS trackers, vehicle GPS trackers which are for basic tracking as well as extended accessories and personal GPS tracker for personal monitor, SOS alert , fall detection, our hardware have been widely used in trailer tracking, RV's tracking, container tracking , vehicle tracking and outdoors workers tracking,it brings security confidence for assets owners, fleet owners and companies which needs improve management efficiency , Kingwo is also very professional in OEM &ODM products, till now Kingwo's products have been exported to more than 80 countries and we have sold around 3 million units both in domestic and overseas market, Kingwo also has our own software platform which is called “iTrack Sense”, it has like live tracking, history trace check, rich reports and other features that can be customized.
