Lte-M NB-IoT Bluetooth Asset Tracker

Categories GPS Asset Tracker
Brand Name: Kingwo
Model Number: NT07EC
Certification: FCC CE ROHS
Place of Origin: CHINA
MOQ: 2 pcs
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Delivery Time: 10-20 days
Packaging Details: 100 pcs per carton , total weight around 25kg
Battery: 8100Mah
G-sensor: 3 axis
Bands: B2 B4 B12 B13
Wifi: 4.0
GPS: High gain GPS
Waterproof: IP67
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Lte-M NB-IoT Bluetooth Asset Tracker

Lte - M NB - IoT Compact Battery Powered Indoors And Outdoors GPS Assets Tracker

NT07EC is a Lte - M NB - IoT Compact Battery Powered Indoors And Outdoors GPS Assets Tracking with 5 years Long Standby life, it has built in G-sensor for collision and motion purpose, the device has built light sensor for removal and tamper alarm, it can be used in many assets for example generators, cadges, trailers, pallets and vehicles as well.

Features:

1. Portable and easy installation

2. LBS, AGPS, GPS position

3. Indoors and outdoors tracking

4. Anti-theft

5. Clock mode

6. Temperature monitor

7. Motion and static mode

8. Periodic tracking


Specifications:

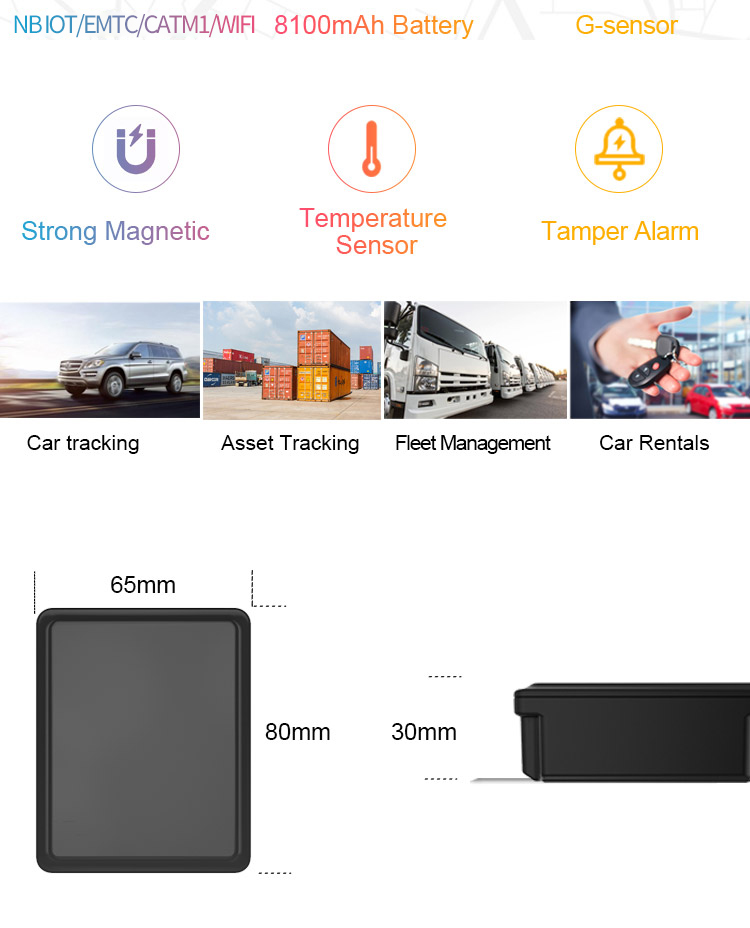

PhysicalDimension81mm*51mm*31mm(L*W*H)
Weight192±3g
CellularCommunication moduleQuectel BG95 M3
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85
• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85
• EGPRS: 850/900/1800/1900MH

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

PowerBattery

Disposable Lithium-ion battery and (3.6V,8100mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃

Power consumptionAverage working current <99mA; Power save current <10uA;
GSM antennaInternal High Gain
GPS antennaInternal High Gain
SIMMicrosim
Indicator2 status LEDs, Green: GPS, Red:Celluar
Environmental ParameterWorking Temperature-20℃ ~ +70℃
Humidity5% ~ 95% (no fog)
Ingress Protection RatingIP67

More features:

• Wifi for indoors tracking

The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.

Temperature detect

The device built-in temperature sensor, it detects the temperature once the device is turned on, then will read it every 16 seconds. The temperature accuracy 95%.

OTA commands from backend

Since the wake up of the device is short, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.

Tracking

The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software

Kingwo NT07E CAT M1 NB1 LTE GPS Tracker Long Standby Strong Magnet GPS GPRS GSM Asset tracker

FAQ

Q1. Can you help for design?

A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.


Q2: Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
Q3: What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
Q4: What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.
Q5: Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every
