2D Bluetooth Barcode Scanner ,OEM Wireless Barcode Scanner With Memory
Product Description:
This wireless 2d barcode scanner incorporates the freedom of Bluetooth wireless technology and offers a high and stable decoding performance ,the large capacity lithium battery 2200mAh can support over 8 hours continuous working ,allow the field workers go and scan barcodes in a big area ,the inventory mode canceled the limitation of working area ,this bluetooth 2d scanner is idea for warehouse management.
Product Features:

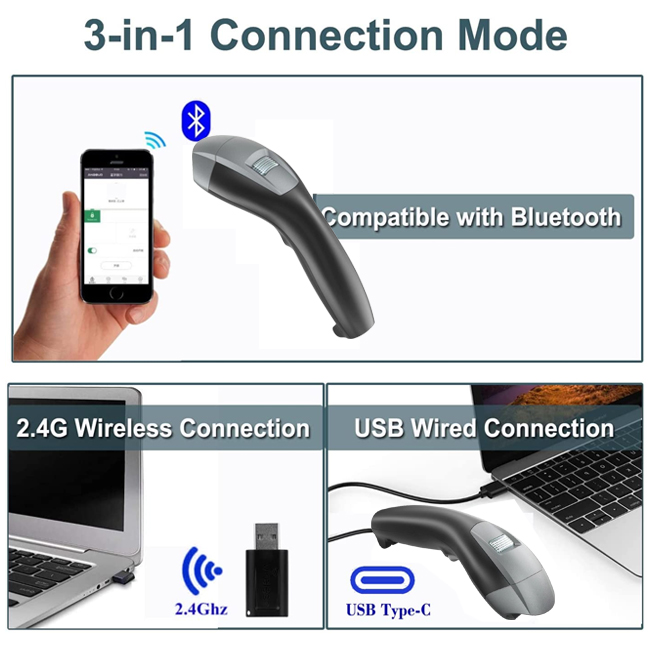

• Small usb dongle to connect devices without bluetooth function
• Inside memory allow max 35000 barcodes store (EAN13)
• Pair directly with Android,IOS smart devices like phone ,tablets
• 2200mAh battery support 8 hours continuous working
Product Specification:
| Light Sources | 617nm LED Aimer, White LED | ||||||
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar,Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Plessey, Matrix 2 of 5 2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode, HanXin code. | ||||||
| Resolution | 640*480 | ||||||
| Scan Method | Manual/Continuous/Automatic Induction Scanning | ||||||
| Scan angle | Yaw ±55°,Rotation 360°,Pitch ±55° | ||||||
| Precision | ≥5mil | ||||||
| Contrast | ≥20% | ||||||
| Depth of scan field | EAN13 50-200MM (13MIL); QR 25-240MM(20MIL); PDF147 30-130MM(6.67MIL). | ||||||
| Error Rate | Less than 1/5million | ||||||
| Interface | USB-HID | ||||||
| Wireless Communication | Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 | ||||||
| Wireless transmission distance | 30-50 meters (open distance) | ||||||
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored.Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. | ||||||
| Pairing Mode | One to One: One Scanning Gun Pairs One Receiver One scanner paired with a Bluetooth mobile device | ||||||
| Electrical Parameters | |||||||
| Voltage | DC5V±5% | ||||||
| Operating Current | When not scanning code ≥26mA; when scanning code ≥280mA | ||||||
| Standby Current | 0mA (Standby is to cut off battery power) | ||||||
| Lithium battery | 2200mA | ||||||
| Battery Working Time | 6h | ||||||
| Charging Time | 3.5h | ||||||
| Charging Model | Square USB charging cable, plug straight charge | ||||||
| Physical Parameters | |||||||
| Dimensions | 66mm*65mm*200mm | ||||||
| Weight | 223.9g | ||||||
| Material | ABS+PC | ||||||
| Cable Length | 1.2m | ||||||
| Environmental Parameters | |||||||
| Operating Temperature | -20℃~+50℃ | ||||||
| Storage Temperature | -40℃~+70℃ | ||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
| Ambient lighting | 0~100000LUX | ||||||
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete | ||||||
Product Pictures:
Product Advantage :
• Advanced CMOS technology
• Stunting performance on faded ,fuzzy and stained barcodes
• Wireless scanning of 1D & 2D barcodes with Bluetooth
• Fast and easy to scan from paper, print, and screen
FAQ:
1, What is a Bluetooth barcode scanner?
Bluetooth barcode scanners can pair directly with mobile devices like smart phones ,tablets, and connect devices through usb dongle or base which without bluetooth function.
2, How long can I use this bluetooth 2d scanner to work ?
The 2200mAh battery can support over 8 hours continuous operating
3, If out of area ,will the data lose when I can new barcodes ?
No, even out of the range ,the data will be saved in the scanner automatically ,just need the press the button to upload the stored data when you back in the range
|
