SF25NA Corrugated Cardboard Machine 1400mm Paper Width Single Facer

Categories Corrugated Cardboard Machine
Brand Name: LY Corrugated
Model Number: SF25NA
Certification: CE、ISO、TUV、SGS
Place of Origin: China
MOQ: 1 Piece
Price: Factory Price
Payment Terms: L/C, D/A, D/P, T/T
Model: SF25NA
Application: Food, Beverage, Commodity, Medical, Chemical, Mac
Type: Packaging Line
Single Faced: Traditional
Keyword: Single Facer Machine
Paper Width: 1400mm6
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

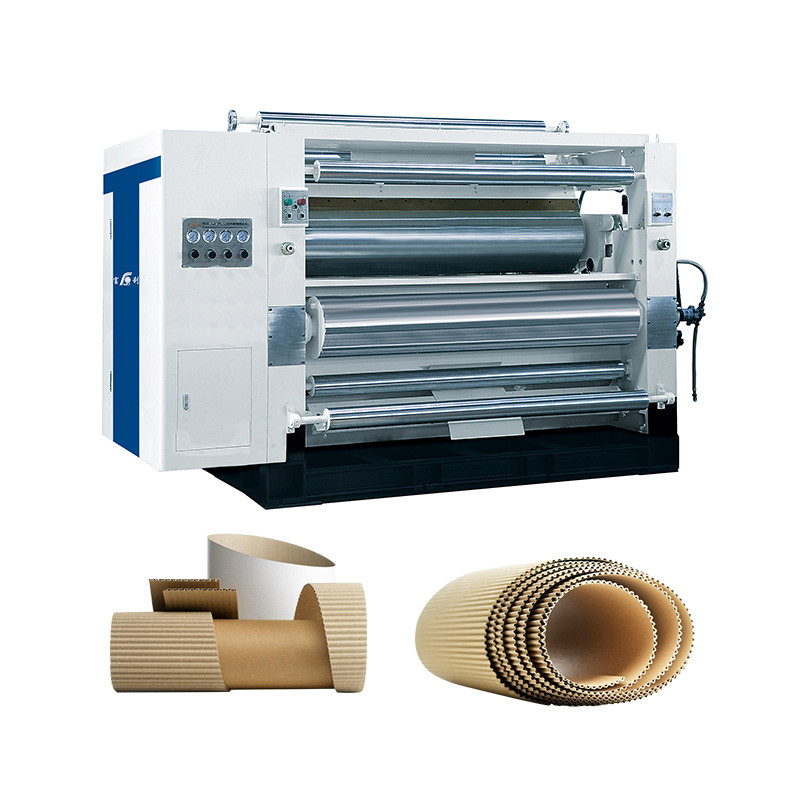

SF25NA Corrugated Cardboard Machine 1400mm Paper Width Single Facer

Corrugated Cardboard Machine 2 Ply Corrugated Line Corrugator Single Facer


Design speed120-350m/min
Effective width1400-2300mm
Corrugated roller diameter280-360mm
Flute roller material/
Flute typeA, B, C, E flute are available
Flute roller hardness/
Warrantyone year for spare parts change

Cassette Single Facer


The machine is equipped with a surface paper heating roller and a core paper conditioning steam ejector. The heating cylinder of the paper is forced to rotate and is equipped with a manual braking device.
Equipped with electric glue separator, convenient to quickly adjust the width of the paper.
This machine is equipped with PLC automatic dispensing system (the gap between glue clamping and scraping roller can be adjusted automatically according to the machine speed); the production speed is measured by the machine and the production length is calculated by the machine.
Frequency conversion motor is used to supply power to realize sleepless speed regulation and reliable synchronous interlocking with the following devices.
The independent transmission box adopts universal joint transmission shaft transmission to isolate power vibration, immerse lubrication to reduce noise and improve operation stability.
The lateral motion of the related roll frame is controlled by the main control cabinet interlocking.
