| Categories | Lab Compounding Extruder |
|---|---|
| Brand Name: | RUIMING |
| Model Number: | SJZS |
| Certification: | patent |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Delivery Time: | 20-90 days after order confirmed |
| Packaging Details: | carton box and wooden box |
| Screw diameter (mm): | 20/53 |
| Screw thread length (mm): | 480 |
| The screw rotation speed (rpm): | 70/51 |
| Barrel form: | do not open |
| Main motor power( kw): | 2.2 |
| Direct extrusion dosage (max kg/h): | 6 |
| Company Info. |
| Wuhan Ruiming Experimental Instrument |
| Verified Supplier |
| View Contact Details |
| Product List |

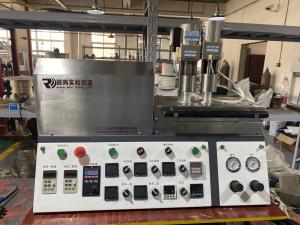

Lab twin screw making machine for polymer and plastic material
This small twin screw extruder is special for various manufacturers and laboratries testing the peculiarity and reaction of materials. Output is less or equall to 20 kilograms per hour.
Technical parameter of Lab Twin Screw making machine
| Key Technical Parameters | SJZS-7A | SJZS-10A | SJZS-10B | SJZS-10Z |
| Screw diameter (mm) | 7/25 | 10/30 | 10/30 | 10/30 |
| Screw thread length (mm) | 190 | 190 | 250 | 190 |
| The screw rotation speed (rpm) | 70 | 51 | 51 | 51 |
| Barrel form | Can open | Can open | Can open | Can open |
| Main motor power( kw) | 0.55 | 0.75 | 0.75 | 0.75 |
| Circulating extrusion dosage (g/per time) | 5-10(manual control) | 15-18(auto control) | 15-18(auto control) | without |
| Direct extrusion dosage (max kg/h) | 0.45 | 1.5 | 1.5 | 1.5 |
| Heating temperature (max ℃) | 450 | 450 | 450 | 450 |
| Feed 1 power (W) | without | 25(optional) | 25 | 25 |
| Feed 2 power ( W) | without | without | 25 | without |
| Power of vacuum exhaust and dehumidification device (W) | without | without | 180(optional) | without |
| Nitrogen protection | have | have | have | have |
| size (mm) | 800X350X580 | 800X350X580 | 850X350X580 | 800X350X580 |
| Key Technical Parameters | SJZS-20 | SJZS-20A |
| Screw diameter (mm) | 20/40 | 20/53 |
| Screw thread length (mm) | 390 | 480 |
| The screw rotation speed (rpm) | 0-50 | 51 |
| Barrel form | Do not open | Do not open |
| Main motor power( kw) | 1.5 | 2.2 |
| Circulating extrusion dosage (g/per time) | without | without |
| Direct extrusion dosage (max kg/h) | 6 | 6 |
| Heating power (kw) | 4.5 | 5 |
| Feed 1 power (W) | 25(optional) | 25 |
| Feed 2 power (W) | without | 25 |
| Power of vacuum exhaust and dehumidification device (W) | 250(optional) | 250(optional) |
| Nitrogen protection | have | have |
| Size (mm) | 1020x450x600 | 1120x450x600 |
|
