Tinplate Material Bucket Making Machine 30CPM Fully Automatic

Categories Tin Can Making Machine
Place of Origin: Guangdong, China
Brand Name: Sunnran
Price: Negotiable
MOQ: 1
Payment Terms: L/C, T/T
Supply Ability: 20
Delivery Time: 150 working days
Packaging Details: Wooden case
Type: Packaging Line
Applicable Industries: Chemical
Showroom Location: None
Condition: New
Application: Chemical
Packaging Type: Vacuum packing , wooden case
Packaging Material: Tinplate
Automatic Grade: Fully-automation
Driven Type: PLC or Advanced Motion control system
Voltage: 380V
Dimension(L*W*H): 6050x1900x3100mm
Weight: APP.15TKGKGKGKGKGKGKGKGKG APP.TKGKGKGKGKGKGKGKGKG
Warranty: 1 Year
Key Selling Points: High quality with Competitive Price
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC, Motion control system
Applicable range:: Rectangular can
Output:: Max.45 CPM
Can size:: 10-25L
Air pressure:: Not lower than 0.6Mpa
Connection height:: 1000±10mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

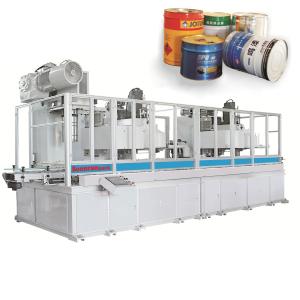

Tinplate Material Bucket Making Machine 30CPM Fully Automatic

Products Description

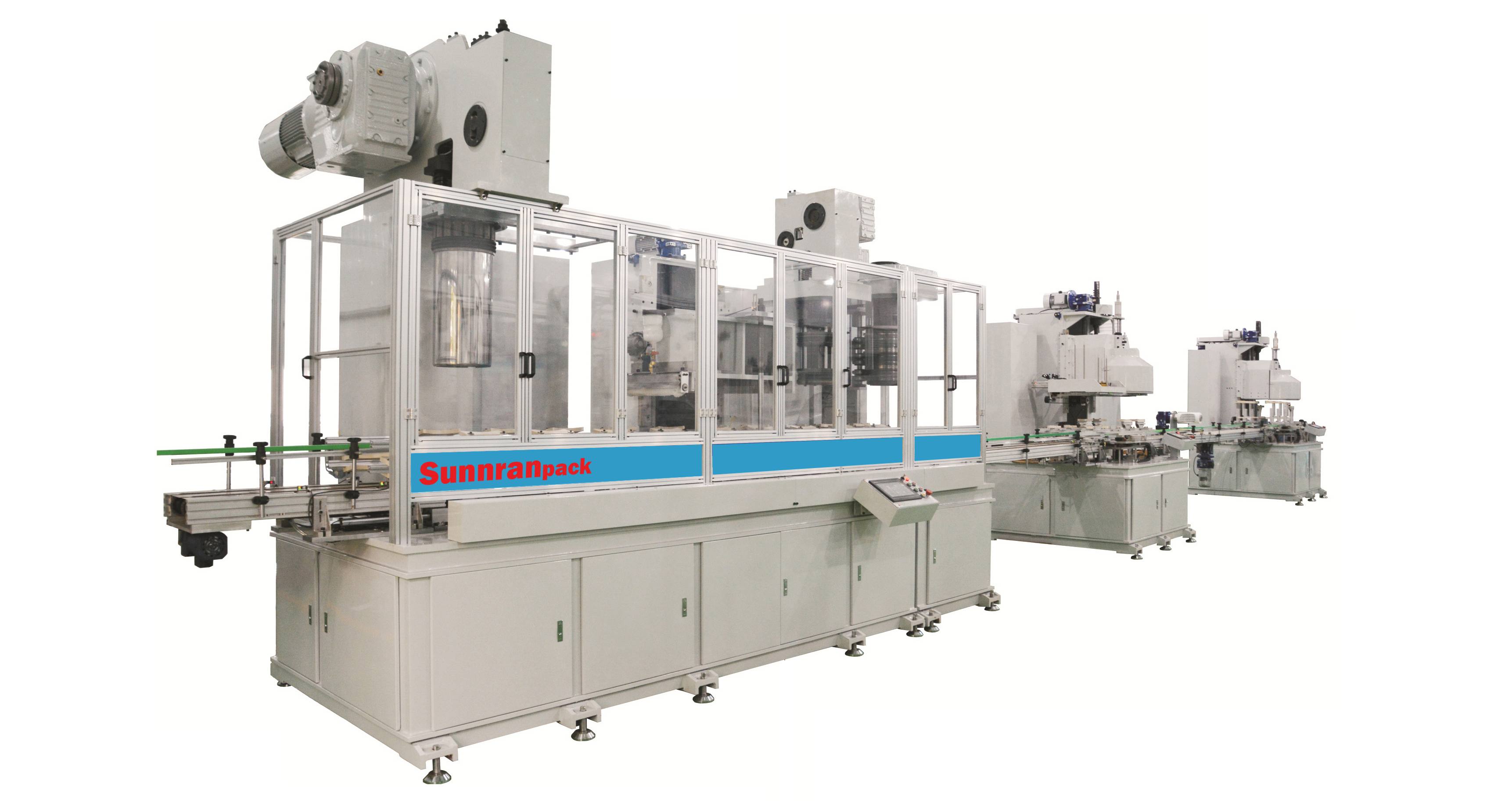

Hot sale Tinplate drum production line bucket making machine
This line is developed as per client's special requirements. It can be used for double and triple seam in one line.
In the meanwhile , we also can combine the external beading and internal beading on the same line . Then customer can use to make the pail and drum by one line.
Max Speed
Diameter range
Height range
Air pressure
Power
30CPM
220-330
100-350
≥0.6Mpa
APP.58Kw
Welding line
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder
Wire speed
Can diameter
Can height
Can material
Power capacity
9-24m/Min
200-260/260-290
180-450
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine
Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven
Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃
