1600mm Fully Automatic Thermal Paper Slitting Machine 50-350m/Min

Categories Paper Slitting Machines
Brand Name: Fect
Model Number: PF-1600A
Certification: CE
Place of Origin: China
MOQ: 1 sets
Price: USD 24000-28000 / SET
Payment Terms: T/T, L/C,Western Union, MoneyGram,
Supply Ability: 100 sets
Delivery Time: 30 working days
Packaging Details: Wooden case
Name: 1600mm Automatic high speed paper roll paper slitting machine
Keyword: paper slitting machine
Slitting thickness: 30g㎡-400g㎡
Max unwinding width: 1600 mm
Max unwinding diameter: 1400 mm
Max rewinding diameter: 1000 mm
Slitting width: 30-1600 mm
Slitting Speed: 50-350m/min
Total Power: 26kw
Machine Size and weight: 450*380*190cm,4500KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1600mm Fully Automatic Thermal Paper Slitting Machine 50-350m/Min

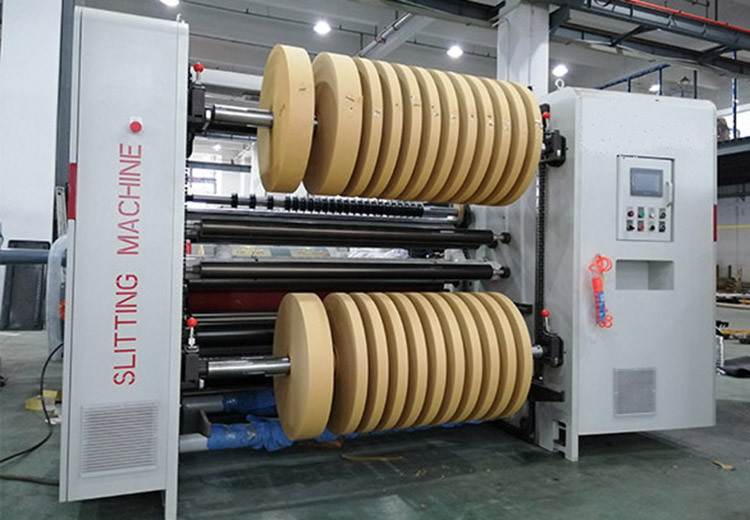

1600mm Automatic high speed paper roll paper slitting machine

1600mm Automatic high speed paper roll paper slitting machine is suitable for slitting and rewinding of various materials, such as 30-400gsm kraft paper, white cardboard, coated paper, PVC film, non-woven Material. It is widely using in the paper bags manufacturing,paper cups bottom manufacturing,paper tube manufacturing and other paper products manufacturing industry.

Specification:

ModelFQ-1600A
Slitting thickness30g㎡-400g㎡
Max unwinding diameter1400 mm
Max unwinding width1600mm
Max rewinding diameter1000mm
Slitting width30-1600mm
Rewinding air shaft diameter76mm(3 inch)/ 2pcs(152# can choose)
Rewinding air shaft QTY2pcs
Correct Precision±1mm
Slitting Precision±0.2mm
Slitting Speed50-350m/min
Total Power26kw
Machine Size450*380*190cm
Machine Weight4500kg
Machine cove colorMainly white




Features

1.Machine use PLC, servo three motor synchronize control, , auto tape tension, center and surface rewinding together.
2.Machine use frequency adjust speed, keep stable running when speed up.
3.Auto count meter, auto alarm, it can automatic stop after it reached set meter on computer .
4.Circular knife slitting waste edge of roll, and it’s auto let out by fan
5.Machine including Web Guide device(EPC) through sensor to control motor to move the edge. Guarantee unwinding feeding precision.
6.Round knife slitting ,and waste edge of roll, and it’s auto waste by fan .

After Sale Service
1) 1 year warranty service.
2) Free replacement of parts within 1 year (free shipping).
3) Parts are provided free of charge within 2 years, but no free shipping.
4) We provide Operation & Maintenance CD.
5) When there is a problem with the machine, please take a video of the problem and send it to us.
6) We will arrange professionals to help you deal with it through video or document tutorials.



About us

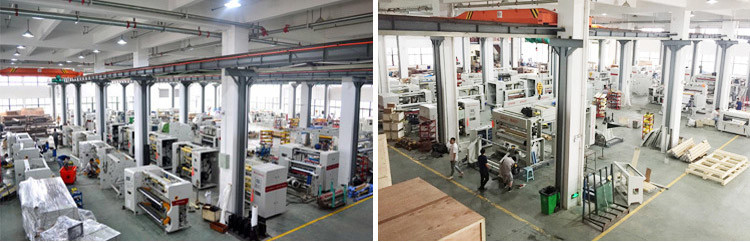

Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!




FAQ

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.

Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.
