Automatic Transformer Core Cutting Machine Cutting Silicon Steel for Lamination
Description of transformer core cutting machine HJX400
Transformer core cutting machine HJX400 is one model cut to length line for cutting silicon steel coil. The transformer core cutting machine is necessary production equipment for laminating transformer core. This kind of cut to length line can shear the silicon steel at the angle of 45 degree and 135 degree shear and make a V notching. With PLC control system, the transformer core cutting machine is very easy to be operated. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.
Main parameters of transformer core cutting machine HJX400
The standard specifications of transformer core cutting machine HJX400 is shown below, however, the specifications can be modified as requested.
| Technical Specifications | HJX400 |
| Silicon steel thickness | 0.23 ~ 0.35mm |
| Steel width | 40 ~ 400mm |
| Cutting length | 350 ~ 9999mm |
| Feeding speed | 120 m/min |
| Cutting angle tolerance | ±0.025° |
| Cutting length tolerance | ±0.10mm |
| Cutting burring | ≤0.02mm |
| Total power | 9kw |

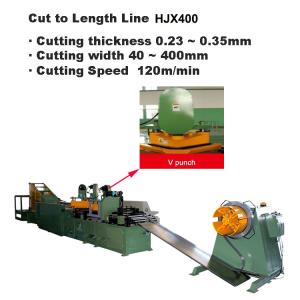

Fig 1: Transformer core cutting machine HJX400's full view
Fig 2: Transformer core cutting machine HJX400's side view
