| Categories | Structural Steel Round Bar |
|---|---|
| Brand Name: | PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL |
| Model Number: | DIN 42CrMo4,1.7225 |
| Certification: | SGS,TUV,BV,ISO,MTC |
| Place of Origin: | China |
| MOQ: | Negotiations |
| Price: | Negotiations |
| Payment Terms: | T/T |
| Supply Ability: | 200000KGS/Month |
| Delivery Time: | Ex-stock for delivery: 4-7 days Production lead time: 30-50 days |
| Packaging Details: | Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement |
| Product Name: | DIN 42CrMo4 1.7225 Structural Steel Round Bar |
| Grades: | DIN 42CrMo4,1.7225 |
| Processing methods: | Shot blasted,Ground,Peeled,Cold working,Machined |
| Surface: | Black,Bright,Rrough Turned,Grinding,Centreless Ground,etc |
| Profile: | Round Bar,Bar |
| Price Term: | Ex-work, FOB, CIF |

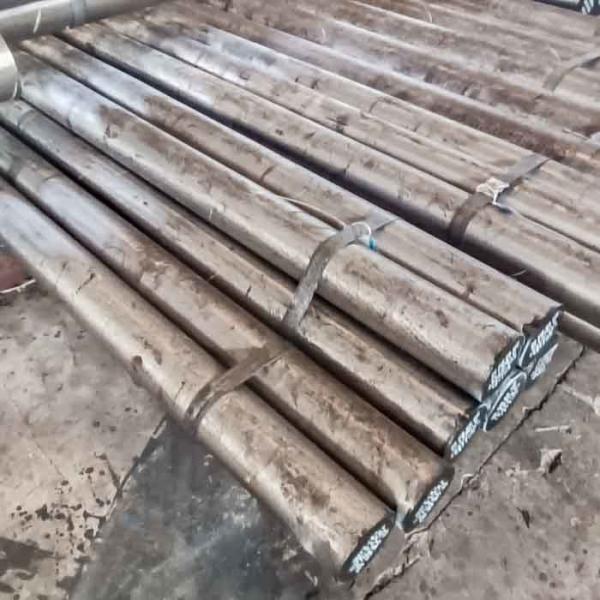

DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar
Description
Our company provides DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar.All of DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar conform to Military standard, nuclear power. 100% Ultrasonic test.
Products Details
DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar
| Chemical Composition (weight%): | C (％): 0.38 ~ 0.42 |
| Si (％): ≤ 0.40 | |
| Mn (％): 0.60 ~ 0.90 | |
| P (％)≤: 0.035 | |
| S (％)≤: 0.035 | |
| Cr (％): 0.90 ~ 1.20 | |
| Mo (％): 0.15 ~ 0.30 | |
| Ni (％): - | |
| Mechanical Properties Under Final Heat Treatment: | Soft annealing temperature /℃: 680～720 |
| Soft annealed (≤100mm)|σb/MPa: 650 | |
| Soft annealed (≤100mm)|ψ(％): 56.0 | |
| Cold draw soft annealed (≤60mm)|σb/MPa: 630 | |
| Cold draw soft annealed (≤60mm)|ψ(％): 58.0 | |
| Heat treatment / quenching temperature /℃| water quenching: 820~850 | |
| Heat treatment / quenching temperature /℃|oil quenching: 850~880 | |
| Heat treatment / tempering temperature /℃: 500~670 | |
| Mechancial after heat treatment | |
| Tensile strength, ≥|σb/MPa: 980 - 1180 | |
| Yield strength, ≥|σs/MPa: 765 | |
| Elongation, ≥|δ5(％): 11.0 | |
| Reduction of area, ≥|ψ(％): 45.0 | |
| ≥|AKV DVM-V form sampling /J: 41 |
DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar may be furnished in one of the following conditions: stress relieving; annealing; solution treatment; solution treatment and ageing; normalizing; normalizing and tempering; or quenching and tempering.
Equivalent Grade:
DIN 42CrMo4 DIN EN 10083-3(2006)
1.7225
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of DIN 42CrMo4 1.7225 Structural Steel Round Bar DIN 42CrMo4 Round Bar 1.7225 Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
