Categories | AC LED Module |
---|---|
Place of Origin: | Guangdong, China |
Brand Name: | mankun |
Certification: | ce, RoHS |
Packaging Details: | Electrostatic bag or plastic box |
MOQ: | 1000 Pieces |
Price: | Negotiation |
Model Number: | MS-15W |
Payment Terms: | Negotiation |
Supply Ability: | 100000 Piece/Pieces per Month |
Delivery Time: | 5-8 work days |
Type: | PCB LED Modules |
Power: | 15W |
Color Rendering Index(Ra): | RA>80 |
Input Voltage: | AC 175-265V 50Hz |
LED QTY: | 18PCS |
Product name: | dob BULB Module |
Diameter: | 50mm |

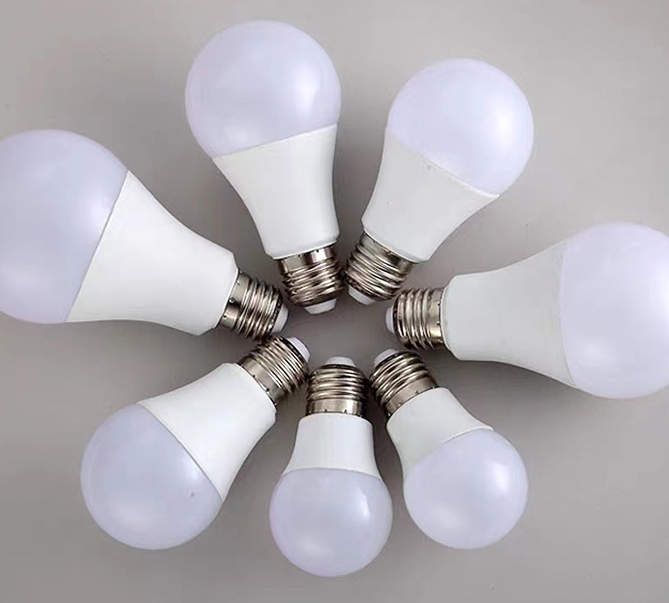

Application: | led bulb Light |

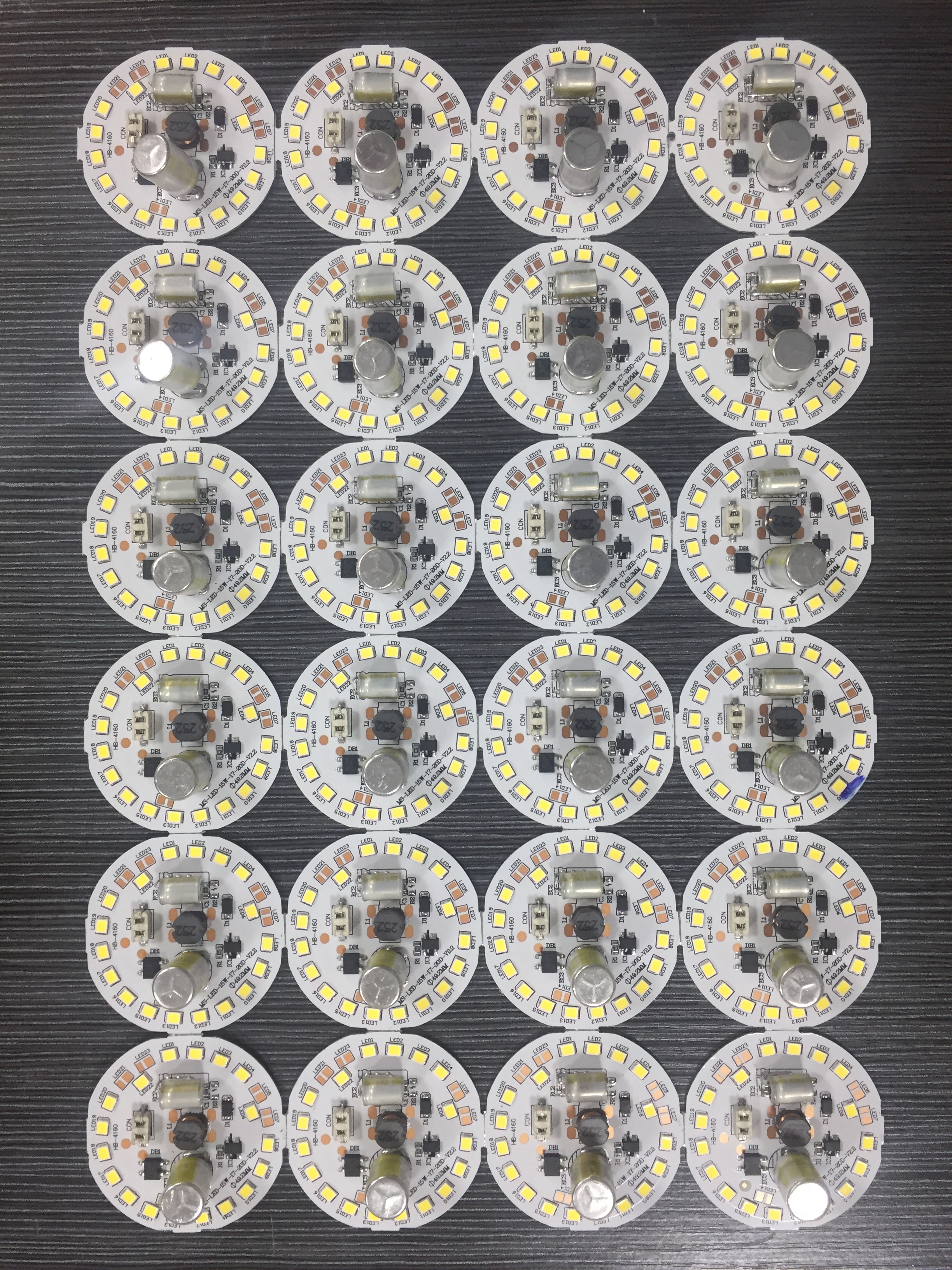

50mm 15w 18PCS AC LED Module Driverless Down Light Bulb DOB LED PCB
50mm AC LED MODULE 15w Down Light Bulb Driverless Pcb Dob Led Module
Specification
Model No. | HB-4160 | Power | 15W |
Input Voltage | AC 220-240V 50Hz | Input current | 0.04A |
Luminous Efficiency | 120 lm/W | Color rendering index | Ra 80 |
Anti-Surge Class | 1.0KV | Thermal Conductivity | 0.8W/m.K |
Pcb Size | D50mm*1.0mm | Emitting Color | White color |
Insulation Class | ACW>1.5KV | Operating Temperature | -20~45°C |
Product details
Input Voltage | AC 220-240V 50/60Hz |
Power Consumption | 12W |
Anti-Surge Class | 1.0KV |
Color rendering index | Ra 80 |
Luminous Efficiency | 110-120 lm/W |
Thermal Conductivity | 1.0W/m.K |
PCB Size | D50mm*1.0mm |
Emitting Color | White color |
Advantage of DOB constant current solutions in LED lighting field
● The DOB AC LED modules are cost saving solutions to high power LED lights.
● Neat outer appearance and easy installation.
● The lights will be light weighted, saving transportation cost.
● The light will be maintenance-free within the warranty period.
● The smaller sized DOB boards make the luminaires in smaller dimensions with physical drivers removed.
● Customized designs in power factor, color temperature, CRI(Ra), luminous efficiency and other detailed applications.
● Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and its marketing pricing strategy.
![]() |
