10.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin

0.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Introduction

SF-TO104I-8957A-N is a 10.4” TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch LVDS interface. This product supports 1024x768 format and can display true 16.2M colors (6-bits colors with FRC). The converter module for LED backlight is built-in. Contrast ratio of the display is 1000:1 with full all viewing angles.

SF-TO104I-8957A-N is fully compatible with Innolux model ZE104IA-03D. SF-TO104I-8957A-N TFT LCD Display Module can be operating at temperatures from–30℃ to +80℃. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

Features:

- Excellent brightness (500 nits)

- Ultra high contrast ratio (1000:1)

- Fast response time (Ton+Toff average 25 ms)

- XGA (1024 x 768 pixels) resolution

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- Ultra wide viewing angle: 176(H)/ 176(V) (CR>10) Super MVAtechnology-180 degree rotation display option

-Color reproduction (Nature color)

-Wide operation and storage temperature range

-Application: - TFT LCD monitor for Industrial applications - Slim design display for portable applications - Digitizer Applicable Design

10.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Drawing

DC Characteristics (VDD=2.8V,Ta=25°C)

Reliability Test

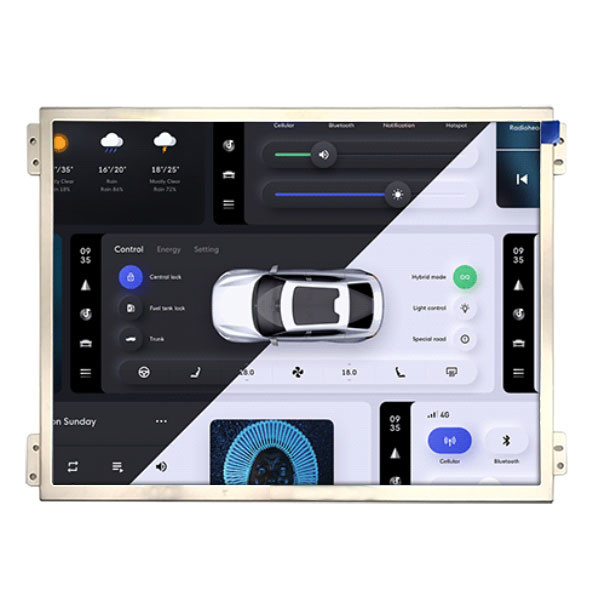

10.4inch Industrial TFT LCD Display 1024x768 Pixels LVDS Interface 30 Pin Product Image

Factory Facilities and Certificates

Search keyword: tft 10.4", 10.4 tft lcd, 10.4" tft lcd,10.4 inch tft lcd, tft lcd 10.4, 10.4 tft display, 10.4" tft display, 10.4 inch tft display, tft display 10.4 inch, tft display 10.4", 10.4 inch tft lcd display
