Anti Static Esd Antistatic Conductive Polyester ESD Waterproof Gabardine Fabric

Anti Static ESD Fabric Description:

High Quality 5Mm Grid Or Strip Cotton And Polyester Esd Fabric For Cleanroom Garment

Anti-static cloth is made of conductive fiber from Japan Kanebo belltron9R. It's mainly used in the production of dust-proof

clothing, anti-static clothing, anti-static mask, anti-static glove, anti-static shoe and shoe cover. The fabric is 1.5m wide,

surface resistance 10^6Ω-10^9Ω, available for class 10-100 cleanroom.

Anti Static ESD Fabric types:

1. 98% polyester and 2% conductive yarn;

2.anti-static TC fabric 63% polyester + 35% cotton + 2% conductive yarn;

3.antistatic TR fabric;

4.antistatic CVC fabric.

Different type fabrics adapt to the requirements of different anti-static or cleanroom environment. Widely used in microelectronics, optical electronics, precision instruments, and aerospace which are more sensitive to static electricity and have higher requirements in clearnoom.

Anti Static ESD Fabric Features:

1) It is also called"conductive silk", and it adopts the special polyester filament and high quality conductive yarns

2) This fabric can be used for sewing kinds of functional garments, such as coverall, suit, jacket, caps, boots and etc.

3) It offers good resistance to static, chemicals and abrasion.

4) It is designed for Class 1000 cleanroom and higher.

5) It has wide applications in electronics, medicals, biology, optics, spaceflight industries etc

6) It meets ESD standards, system resistance 10e6-10e8Ω

Anti Static ESD Fabric Spefication:

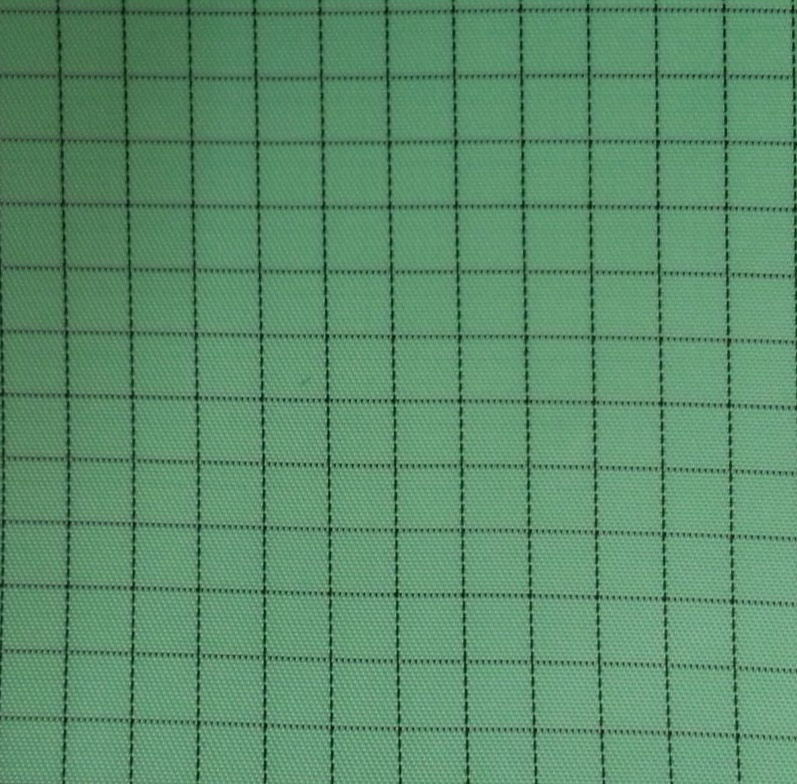

ITEM	5MM STRIPE		5MM GRID		2.5MM GRID
Sample
Composition	99.58% poly yarn 0.42% carbon fiber	99.51% poly yarn 0.49% carbon fiber	99.17% poly yarn 0.83% carbon fiber	99.02% poly yarn 0.98% carbon fiber	97.69%poly yarn 2.31% carbon fiber
Weave	1/2 Twill	Plain/Twill	1/2 Twill	Plain/Twill	2/3 twill
Weight(g/m²)	130	110	130	110	140
Yarn Type	100D	75D	100D	75D	100D
Width	60inch(150Cm)		60inch(150Cm)		60inch(150Cm)
Air Permeability	30 c.c/cm2/sec		30 c.c/cm2/sec		18 c.c/cm2/sec
Air Permeability	Warp 4100gf weft 6250gf		Warp 4170gf weft 6000gf		Warp 4500gf weft 6050gf
Surface Resistance	10e6-10e8 ohm/unit		10e6-10e8 ohm/unit		10e6-10e8 ohm/unit
Friction Charges	<300V		<100V		<15V
Decay Time	1.0 sec		0.5 sec		0.1 sec
Filtration Efficiency	60%-80%		60%-80%		80%-90%
